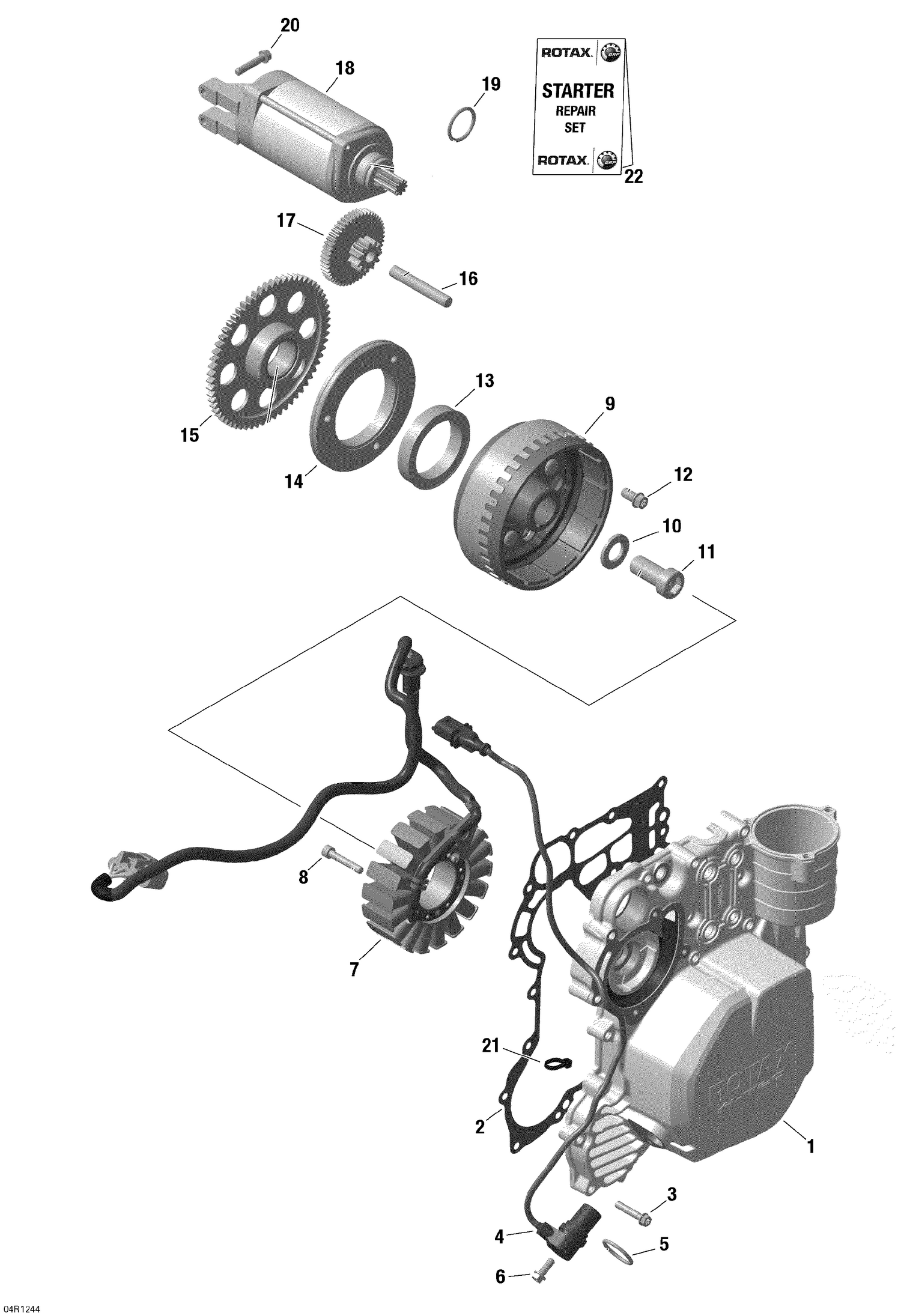

03- Magneto
Parts (10)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 420911052 | Cover |
| 7 | 420685635 | Stator Plate 650W |
| 9 | 420686190 | Magneto Flywheel 650W This part replaces 420685646. |
| 10 | 420627270 | Shim |
| 13 | 420659113 | Sprag Clutch |
| 14 | 420659263 | Sparg Clutch Housing This part replaces 420659261. |
| 15 | 420434235 | Free Wheel Gear, 64 Teeth |
| 16 | 420229475 | Needle Pin |
| 17 | 420634741 | Starter Double Gear 11/49 T |
| 21 | 420866714 | Tie Rap |
