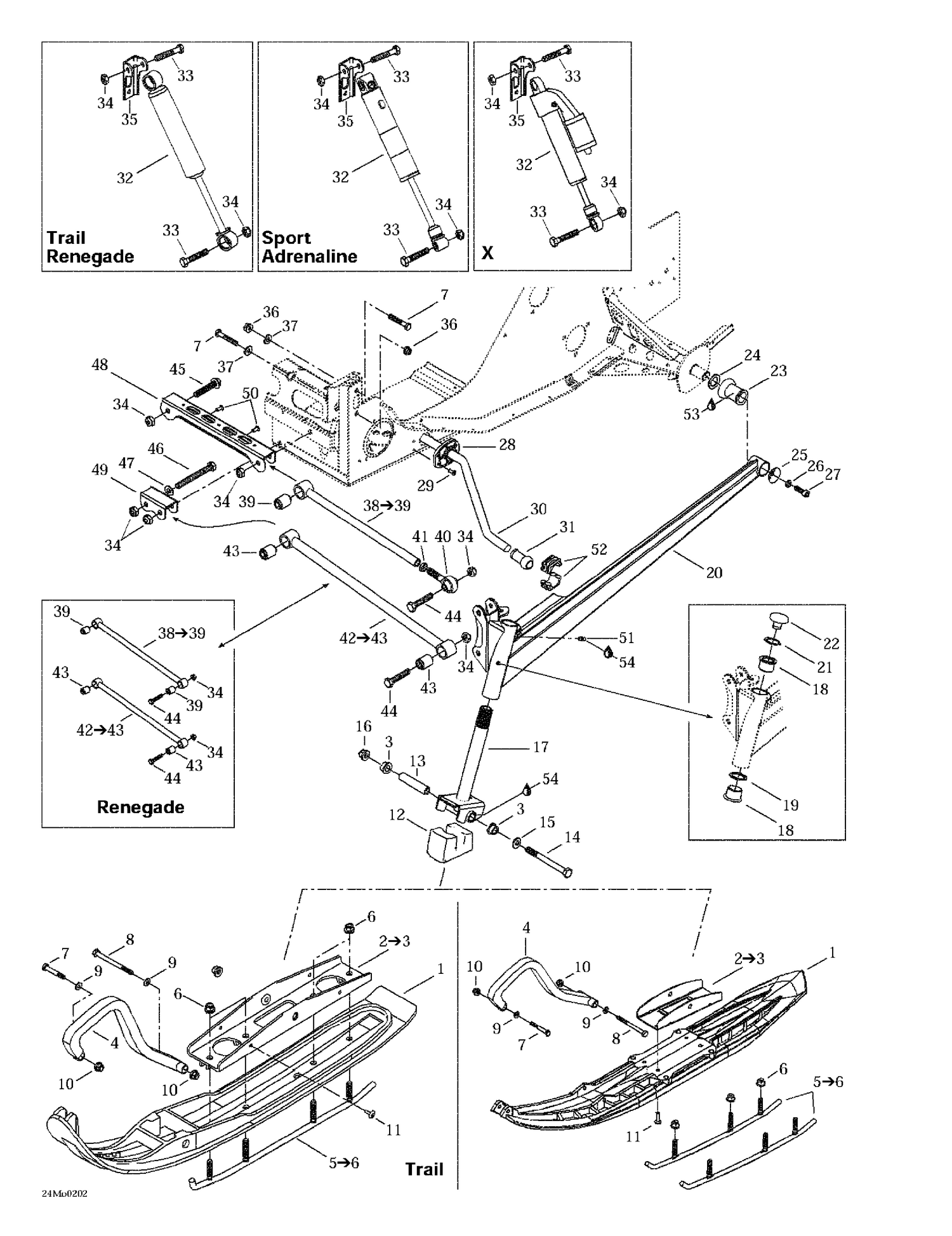

| Ref | Part Number | Description |
|---|
| 3 |
505070001 |
BUSHING - Call your local BRP dealership |
| 4 |
505070963 |
Black, Handle This part replaces 572101000. |
| 6 |
233201414 |
Hex. Flange Elastic Nut M10 |
| 7 |
207085044 |
Hex. Screw M8 X 50 |
| 8 |
207089044 |
Hex. Screw M8 X 90 |
| 9 |
234081410 |
Flat Washer 8 mm |
| 10 |
232581414 |
Hex. Elastic Stop Nut M8 |
| 11 |
293150090 |
RIVET_POP 1/4 - Call your local BRP dealership |
| 12 |
505072018 |
SKI STOPPER - Call your local BRP dealership This part replaces 506151233. |
| 13 |
506133300 |
Spacer |
| 14 |
250000001 |
HEX. SCREW M10 X 110 - Call your local BRP dealership |
| 15 |
732900049 |
Washer |
| 16 |
250100105 |
Flange Nut M10 This part replaces 732610084. |
| 17 |
506151234 |
Ski Leg |
| 18 |
505070003 |
Cushion |
| 19 |
505070004 |
WASHER - Call your local BRP dealership |
| 20 |
505070645 |
RH ARM - Call your local BRP dealership |
| 21 |
371910400 |
CIRCLIP - Call your local BRP dealership |
| 22 |
572091300 |
Cap |
| 23 |
570062200 |
DAMPER - Call your local BRP dealership |
| 24 |
503146700 |
WASHER - Call your local BRP dealership |
| 25 |
506079600 |
CUP - Call your local BRP dealership |
| 26 |
234181401 |
Lock Washer 8 mm |
| 27 |
205582544 |
Socket Head Screw M8 X 25, Scotch Grip |
| 28 |
505070139 |
BUSHING - Call your local BRP dealership |
| 29 |
390402300 |
Pop Rivet 3/16" |
| 30 |
505070563 |
STABILISATOR - Call your local BRP dealership |
| 31 |
505070819 |
BALL JOINT - Call your local BRP dealership |
| 33 |
207005544 |
Hex. Screw M10 X 55 |
| 34 |
233601416 |
Elastic Locking Nut M10 X 1.5 |
| 35 |
518317518 |
RH SHOCK BRACKET - Call your local BRP dealership |
| 36 |
233281414 |
Hex. Flange Elastic Nut M8 |
| 37 |
506151245 |
Washer |
| 39 |
505070025 |
Bushing |
| 40 |
505070818 |
Ball Joint |
| 41 |
232026414 |
RH Hex. Nut This part replaces 732610019. |
| 43 |
505070025 |
Bushing |
| 44 |
207005544 |
Hex. Screw M10 X 55 |
| 45 |
207605544 |
Hex. Flange Screw M10 X 55 |
| 46 |
207009544 |
Hex. Screw M10 X 95 |
| 47 |
234001410 |
Flat Washer 10 mm |
| 48 |
505070010 |
Upper Arm Bracket |
| 49 |
505070011 |
Lower Arm Bracket |
| 50 |
390402200 |
Pop Rivet 3/16" |
| 51 |
408200700 |
Grease Fitting |
| 52 |
505070817 |
SLIDING BLOCK - Call your local BRP dealership |
| 53 |
293550030 |
Grease, Super Lube This part replaces 293550014. |
| 505070646 |
Bras |
Oscillant GA - Appelez votre concessionnaire BRP local 505070646 |
| 505070646 |
LH |
ARM - Call your local BRP dealership 505070646 |
| 505070727 |
Deep |
Black, Precision Ski 505070727 |
| 505070727 |
Ski |
De Précision, Noir, B-160 505070727 |
| 518317519 |
LH |
Shock Bracket 518317519 |
