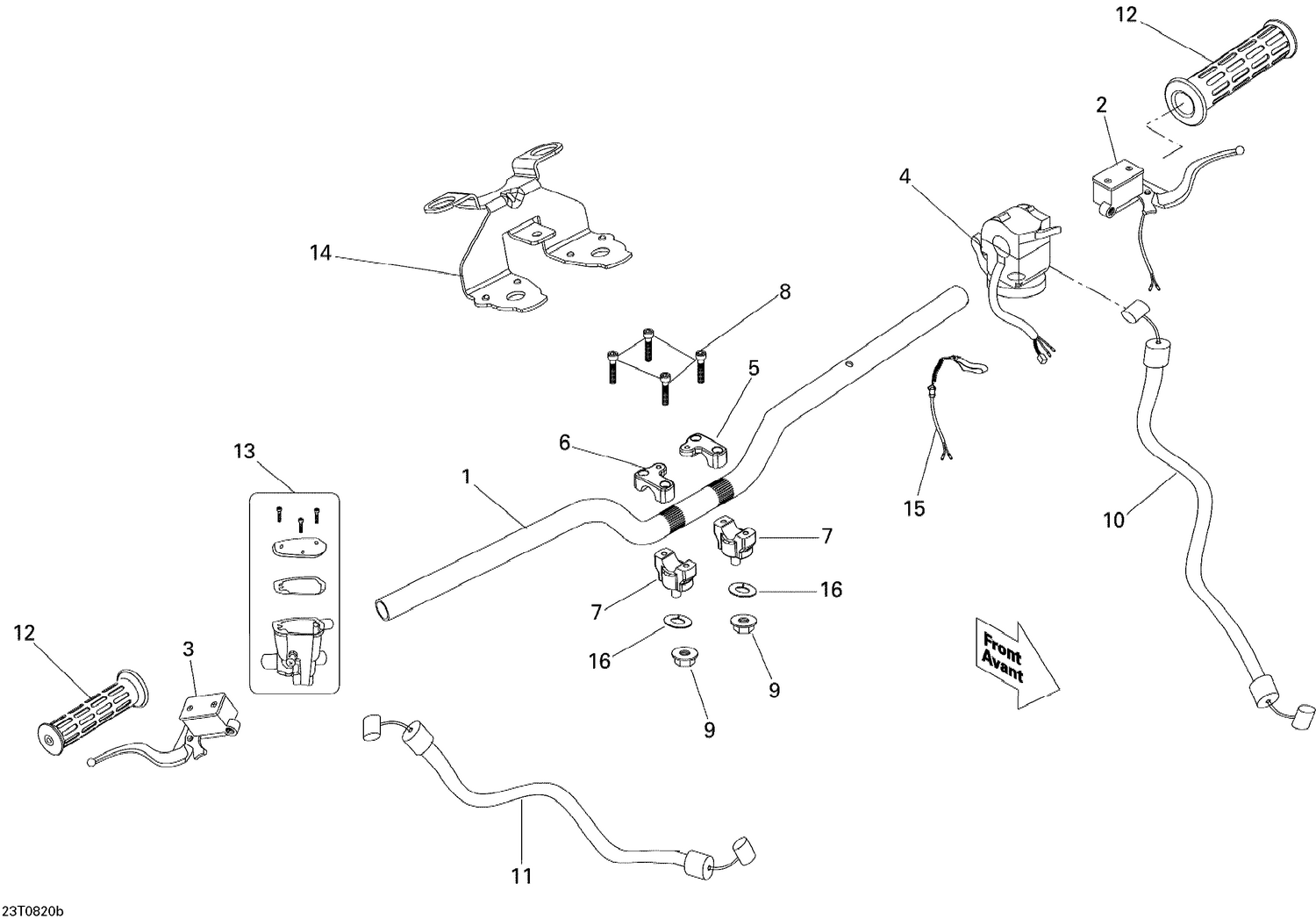

| Ref | Part Number | Description |
|---|
| 1 |
V53100DGF06H |
Handle Bar - Call Your Local BRP Dealership This part replaces V53100DGF01H. |
| 2 |
V53178DGF03HLL |
LH Brake Lever This part replaces V53178DGF00H. |
| 3 |
V53179DGF02HLL |
RH Brake Lever This part replaces V53179MEM020. |
| 4 |
V35160DGF04HLL |
Multi-Fonction Switch This part replaces V35160DGF00H. |
| 5 |
V53170MAA020BKLL |
LH Upper Handle Bar Clamp This part replaces V53170MAA000BK. |
| 6 |
V53175MAA020BKLL |
RH Upper Handle Bar Clamp This part replaces V53175MAA000BK. |
| 7 |
V45517DGF04H |
Lower Handle Bar Clamp This part replaces V45517DGF00H. |
| 8 |
V9100006025LL |
Hexagonal Bolt M6 X 25 This part replaces A9100006025. |
| 9 |
232501416 |
Elastic Flange Nut M10 This part replaces A9035010000. |
| 10 |
V43316DGF060LL |
Choke Cable This part replaces V43316DGF040. |
| 11 |
V17910DGF03HLL |
Throttle Cable This part replaces V17910DGF01H. |
| 12 |
V53140DGF000BK |
Handle Grip |
| 13 |
V53177CEK010BKLL |
Housing Throttle Ass. This part replaces V53174CEK000. |
| 14 |
V50223DGF03H |
Support This part replaces V50223DGF01H. |
| 15 |
Not |
Available As Spare Part - Tether Cord |
