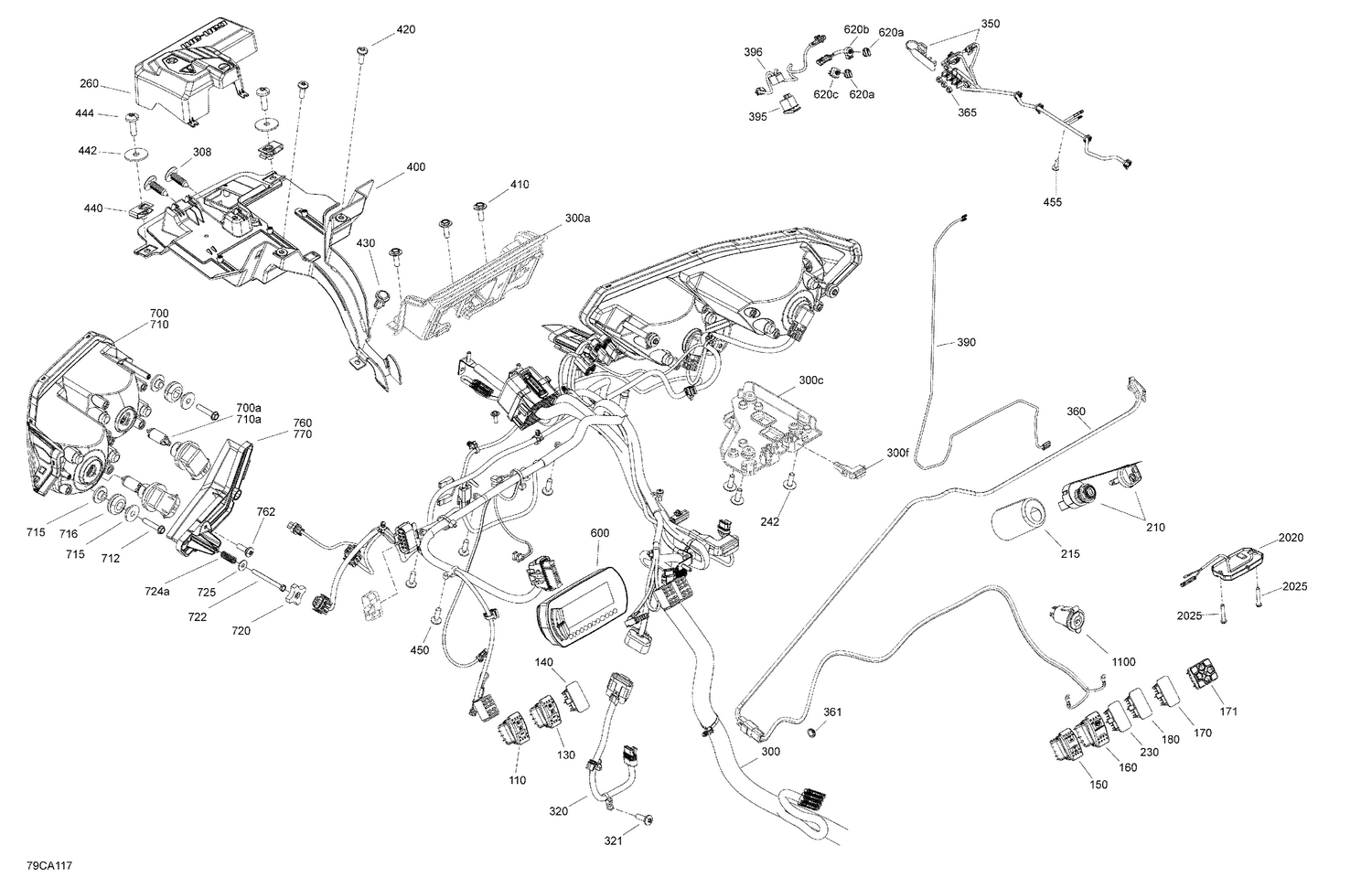

08- Electric - Front System
Parts (53)
| Ref | Part Number | Description |
|---|---|---|
| 110 | 710004492 | Light Switch |
| 130 | 710007173 | Plug Carling |
| 140 | 710007173 | Plug Carling |
| 150 | 710005489 | Switch 2X4 |
| 160 | 710005470 | Differential Lock Switch |
| 170 | 710007173 | Plug Carling |
| 171 | 710006650 | Multifonction Switch |
| 180 | 710007173 | Plug Carling |
| 210 | 710007870 | Inter Allumage *Ignition This part replaces 710004198. |
| 215 | 710005739 | Key Switch Protector |
| 230 | 710007173 | Plug Carling |
| 242 | 250000959 | Screw PT Type K-50 X 16 |
| 260 | 710006707 | Junction Block Cover |
| 300a | 710006640 | Fusebox Support |
| 300c | 710006706 | Connector Support |
| 300f | 710007153 | Protector Cap |
| 308 | 293730006 | Black, Dart |
| 320 | 710006837 | Throttle Pedal Harness |
| 321 | 250000720 | Torx Screw K50 X 16 |
| 350 | 710004462 | Window/Wiper Harness |
| 360 | 710007047 | Roof Wiring Harness |
| 361 | 710002743 | Boot |
| 365 | 232561200 | Brass Elastic Stop Nut M6 |
| 390 | 710004466 | Wiper Harness |
| 395 | 710004941 | Wiper Switch |
| 396 | 710004942 | Wiper Harness |
| 400 | 710006649 | Wiring Harness Support |
| 410 | 250000959 | Screw PT Type K-50 X 16 |
| 420 | 250000720 | Torx Screw K50 X 16 |
| 430 | 293150230 | Tuflok Plastic Rivet |
| 440 | 250100198 | Panel Nut M6 X 1.0 This part replaces 250000957. |
| 442 | 250200029 | Washer M6 |
| 444 | 250000712 | Torx Screw M6 X 20 |
| 450 | 250000720 | Torx Screw K50 X 16 |
| 455 | 250000720 | Torx Screw K50 X 16 |
| 600 | 710007407 | Multifunction Compact Gauge |
| 620a | 705800585 | Potentiometer Switch Knob Ass'y |
| 620b | 705800585 | Potentiometer Switch Knob Ass'y |
| 620c | 705800585 | Potentiometer Switch Knob Ass'y |
| 700a | 715900653 | Halogen Bulb H8 12V 35W Blue |
| 710a | 715900653 | Halogen Bulb H8 12V 35W Blue |
| 712 | 241152540 | Hex. Flange Screw K50 X 2.24 X 25 |
| 715 | 710004749 | Shoulder Bushing |
| 716 | 709000582 | Grommet |
| 720 | 572106600 | Handle |
| 722 | 250000718 | Hex. Screw K40 X 45 |
| 724a | 517168600 | Spring |
| 725 | 234042600 | Flat Washer 4 mm, Stainless |
| 760 | 710008973 | Deep Black, LH Front Headlight Trim This part replaces 705013593. |
| 762 | 250000959 | Screw PT Type K-50 X 16 |
| 770 | 710008974 | Deep Black, RH Front Headlight Trim This part replaces 705013595. |
| 1100 | 710005374 | Prise Accessoire 12V |
| 2020 | 715002455 | Dome Light |
