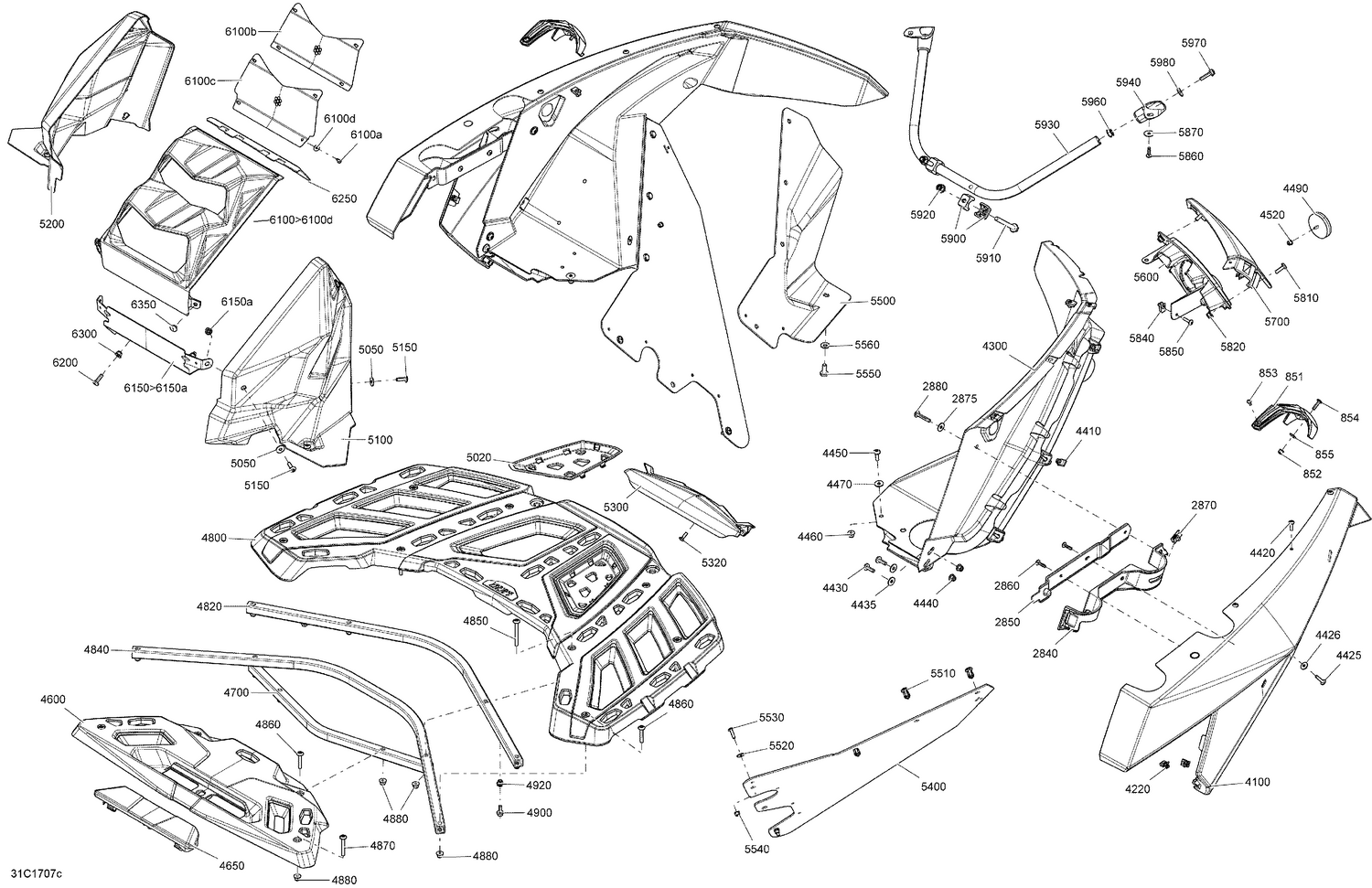

09- Body And Accessories - Rear Section All Models
Parts (57)
| Ref | Part Number | Description |
|---|---|---|
| 2840 | 705007918 | LH REAR FENDER SUPPORT - Call your local BRP dealership |
| 2840 | 705007919 | RH REAR FENDER SUPPORT - Call your local BRP dealership |
| 2850 | 705007917 | Support Plate |
| 2860 | 250000760 | Torx Screw Truss Head K50X20 T20 |
| 2870 | 250100198 | Panel Nut M6 X 1.0 This part replaces 250000048. |
| 2875 | 234062670 | Stainless Steel Flat Washer |
| 2880 | 250000646 | Black, Torx Screw M6 X 35 |
| 4100 | 705008949 | FENDER REAR L B-365 - Call your local BRP dealership |
| 4100 | 705008951 | Quarry Gray RH Rear Fender |
| 4220 | 517302785 | Edge Clip |
| 4300 | 705009549 | RH Inner Fender |
| 4410 | 250000958 | Panel Nut M5 X 0.8 This part replaces 250000079. |
| 4420 | 250000724 | Torx Screw M5 X 20 |
| 4425 | 250000762 | Torx Screw M5 X 25 |
| 4426 | 250200025 | Washer M5 |
| 4430 | 250000712 | Torx Screw M6 X 20 |
| 4435 | 234062670 | Stainless Steel Flat Washer |
| 4440 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 4450 | 250000712 | Torx Screw M6 X 20 |
| 4460 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 4470 | 234062670 | Stainless Steel Flat Washer |
| 4490 | 705011221 | Red Reflector |
| 4520 | 233251494 | Elastic Flange Nut M5 |
| 4800 | 715002367 | REAR RACK KIT - Call your local BRP dealership |
| 4820 | 705016640 | Sectional Bent Tube This part replaces 705005469. |
| 4840 | 705016092 | Bent Sectional Tube This part replaces 705005470. |
| 4860 | 250000646 | Black, Torx Screw M6 X 35 |
| 4880 | 233261434 | Flange Elastic Nut M6 |
| 4900 | 207561634 | Hex. Flange Screw M6 X 16, Scotch Grip |
| 4920 | 250100242 | Threaded Insert M6 X 1.0 This part replaces 293450274. |
| 5020 | 705006713 | LH Bagage Rack Cover |
| 5020 | 705006714 | RH BAGAGE RACK COVER - Call your local BRP dealership |
| 5300 | 705005994 | LOGO Support |
| 5320 | 250000720 | Torx Screw K50 X 16 |
| 5510 | 293150230 | Tuflok Plastic Rivet This part replaces 293150089. |
| 5520 | 250200025 | Washer M5 |
| 5530 | 250000724 | Torx Screw M5 X 20 |
| 5540 | 233251494 | Elastic Flange Nut M5 |
| 5600 | 705004731 | LH Rear Facia |
| 5600 | 705004732 | RH Rear Facia |
| 5700 | 705008952 | TRIM_HEADLIGHT REAR L B-365 - Call your local BRP dealership |
| 5700 | 705008953 | TRIM_HEADLIGHT REAR R B-365 - Call your local BRP dealership |
| 5810 | 250000712 | Torx Screw M6 X 20 |
| 5820 | 233261434 | Flange Elastic Nut M6 |
| 5840 | 250000958 | Panel Nut M5 X 0.8 This part replaces 250000079. |
| 5850 | 250000724 | Torx Screw M5 X 20 |
| 5860 | 250000760 | Torx Screw Truss Head K50X20 T20 |
| 5870 | 224060201 | Flat Washer |
| 5900 | 705007044 | Rear Support Facia Clip |
| 5910 | 207687044 | Hex. Flange Screw M8 X 70 |
| 5920 | 233281414 | Hex. Flange Elastic Nut M8 |
| 5930 | 705007299 | Body Tube |
| 5940 | 705007045 | LH Rear Facia Support |
| 5940 | 705007046 | RH Rear Facia Support |
| 5960 | 705007047 | TUBE CONNECTOR - Call your local BRP dealership |
| 5970 | 207662544 | Hex. Flange Screw M6 X 25 |
| 5980 | 224061201 | Flat Washer |
