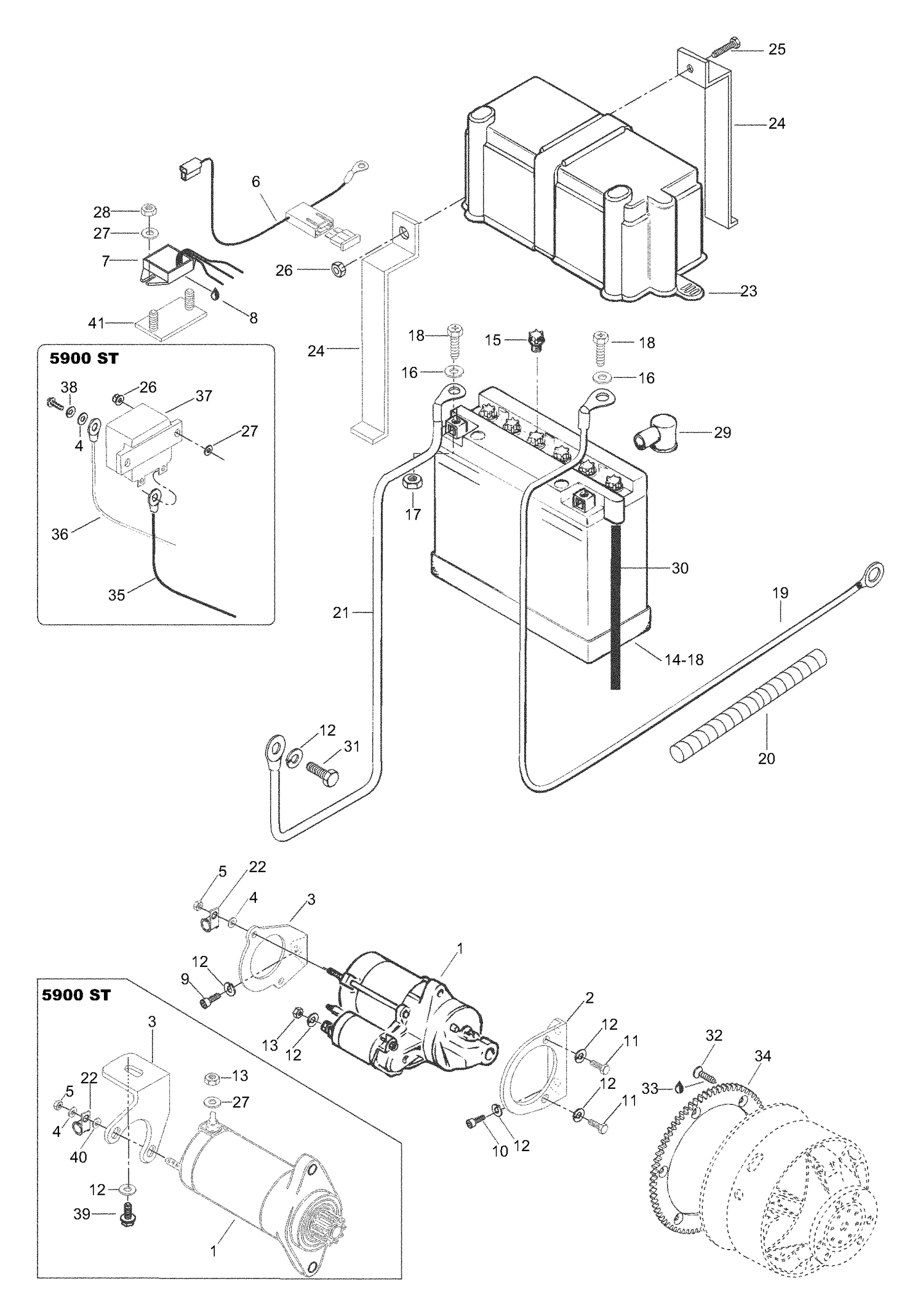

| Ref | Part Number | Description |
|---|
| 1 |
410212400 |
ELECTRIC STARTER ASSY - Call your local BRP dealership |
| 2 |
420951415 |
STARTER BRACKET, P.T.O. - Call your local BRP dealership |
| 3 |
420951426 |
STARTER BRACKET, M.A.G. - Call your local BRP dealership |
| 4 |
20008 |
Washer |
| 5 |
33009 |
Nut elastic M5 |
| 6 |
5444382 |
Chargening cabel |
| 7 |
549264 |
Rectifier assy |
| 8 |
413707500 |
Lithium-grease |
| 9 |
40066 |
Allen sc. M8 x 16 DIN912m8.8Zne(1=10pcs) - Call your local BRP dealership |
| 10 |
40305 |
Allen screw M8x20 |
| 11 |
40036 |
Screw M8x20 |
| 12 |
20014 |
Spring washer |
| 13 |
33003 |
Nut M8 |
| 15 |
410300800 |
Cap |
| 16 |
391302100 |
FLAT WASHER - Call your local BRP dealership |
| 17 |
33002 |
Nut M6 |
| 18 |
40029 |
Screw M6x16 |
| 20 |
28015 |
Tubing |
| 22 |
27025 |
Cabel keeper |
| 23 |
570022000 |
Battery cover |
| 24 |
5442811 |
Battery support |
| 25 |
40031 |
Screw M6x25 |
| 26 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 This part replaces 33200. |
| 27 |
234062410 |
Flat Washer 6 mm This part replaces 20009. |
| 28 |
33010 |
Lock Nut M6 (1=10Pcs) |
| 29 |
570151000 |
Cap protection |
| 30 |
39055 |
Overflow hose 6.5/4 |
| 31 |
40327 |
Screw M6x12 |
| 32 |
236281684 |
Hex. Screw M8 X 16 |
| 33 |
293800005 |
Loctite 271 (10 ml) This part replaces 413707400. |
| 34 |
415043100 |
Ring-gear (86) |
| 35 |
#NOM? |
Ref: 36 |
| 37 |
Not |
Available As Spare Part - Relay starter - DOES NOT APPLY TO THIS MODEL |
| 38 |
Not |
Available As Spare Part - Spring washer - DOES NOT APPLY TO THIS MODEL |
| 39 |
Not |
Available As Spare Part - Screw M8x16 - DOES NOT APPLY TO THIS MODEL |
| 40 |
Not |
Available As Spare Part - Washer - DOES NOT APPLY TO THIS MODEL |
