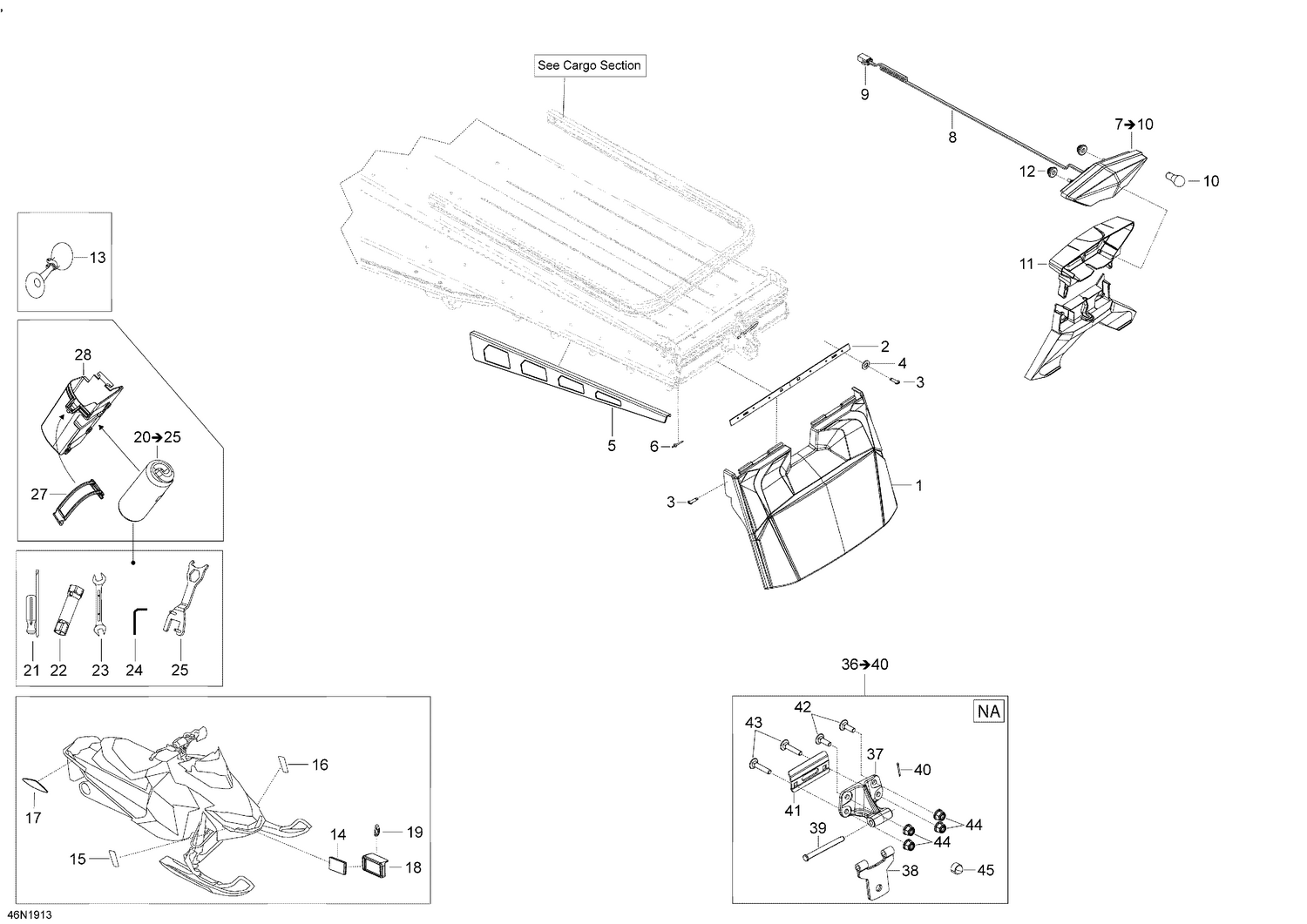

09- Utilities - 600 ACE
Parts (23)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 520001405 | Black, Snow Guard Short |
| 2 | 520001021 | Plate |
| 3 | 250000676 | Forming Screw M5 x 16 |
| 4 | 250200025 | Washer M5 |
| 5 | 520000693 | RH Protector |
| 5 | 520000694 | LH Protector |
| 6 | 293150163 | Rivet Hucklok |
| 8 | 520000677 | Wiring Harness Ass'y |
| 10 | 520000758 | Bulb |
| 11 | 511000764 | Rear Light Cover |
| 12 | 705014429 | Rubber Stopper This part replaces 705003666. |
| 15 | 520001600 | Yellow, RH Reflector |
| 16 | 520001601 | Yellow, LH Reflector |
| 17 | 705003412 | Red, Lateral Reflector |
| 20 | 520001593 | Tools Kit This part replaces 529000078. |
| 26 | 520000894 | Tool Kit Rack |
| 27 | 520000528 | Latch |
| 40 | 41031 | Cotter Pin |
| 41 | 520000727 | Plate |
| 42 | 207782544 | Carriage Bolt, M8 X 25 |
| 43 | 207784044 | Bolt Carriage M8 X 40 |
| 44 | 233281414 | Hex. Flange Elastic Nut M8 |
| 45 | 28056 | Cover |
