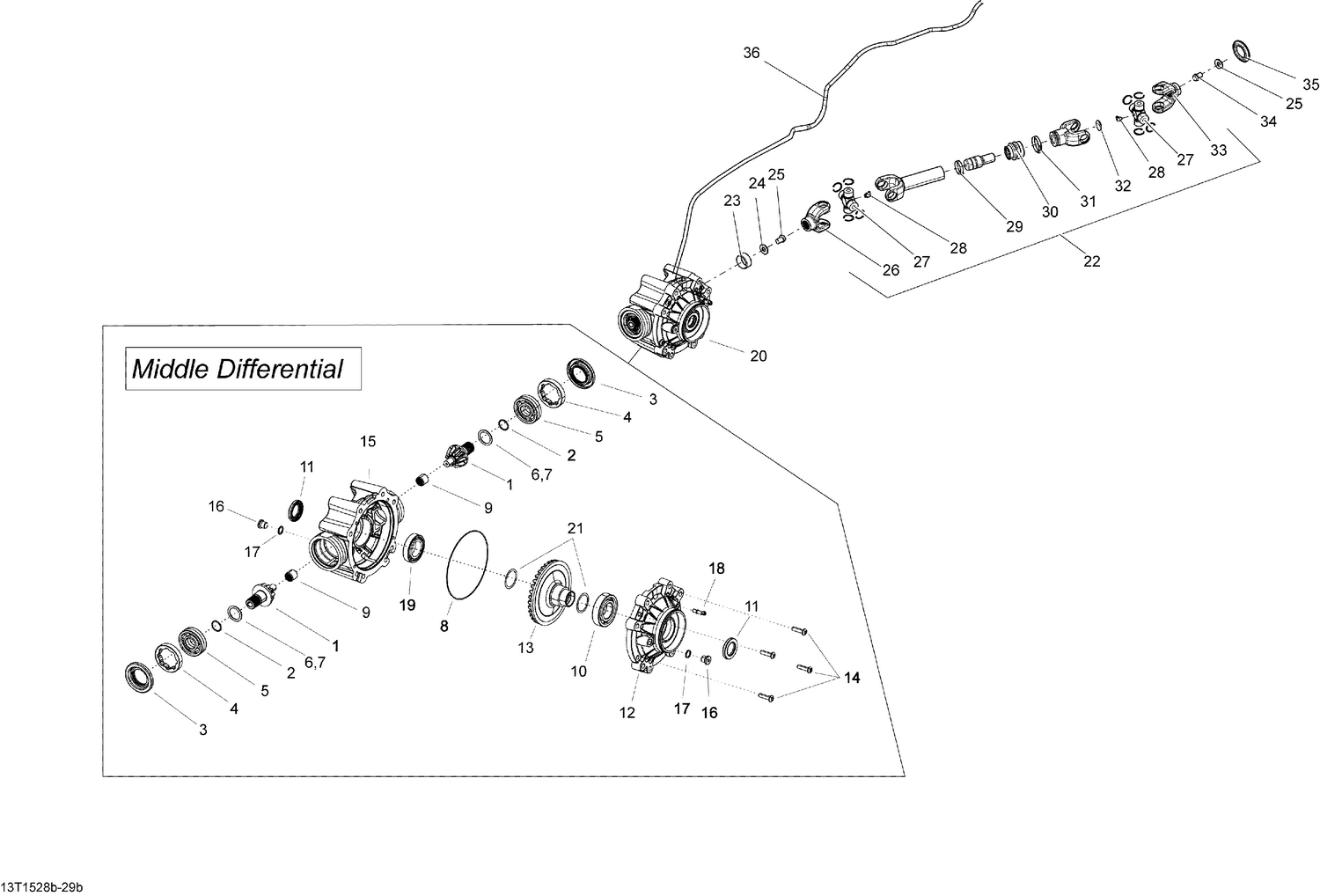

08- Drive System, Rear Middle Diff_13T1528b
Parts (35)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 705501571 | PINION 10 TOOTH - Call your local BRP dealership |
| 2 | 705500267 | O-Ring |
| 3 | 705401481 | Oil Seal |
| 4 | 705502059 | Nut This part replaces 705500987. |
| 5 | 705500260 | Ball Bearing |
| 6 | 705501162 | Pinion Gear Shim |
| 7 | 705502061 | Pinion Gear Shim 1.67 mm This part replaces 703500049. |
| 8 | 705500265 | Seal |
| 9 | 705501408 | Needle Bearing |
| 10 | 705502738 | Ball Bearing This part replaces 705501389. |
| 11 | 705501996 | Oil Seal |
| 12 | 705501918 | Cover Machined |
| 13 | 705501397 | Gear, 36 Tooth |
| 14 | 205483046 | SOCKET HEAD SCREW M8 X 30 - Call your local BRP dealership |
| 15 | 705501920 | Middle Differential Crakcase Machined |
| 16 | 705500504 | Fill Level Plug |
| 17 | 705500506 | Copper Washer |
| 18 | 705500893 | VENT VALVE - Call your local BRP dealership |
| 19 | 705502737 | Ball Bearing This part replaces 705500749. |
| 20 | 705502230 | Final Drive Unit This part replaces 705501917. |
| 21 | 705502060 | Differential Shim 0.02 mm This part replaces 703500548. |
| 22 | 703500991 | Shaft Ass'y Kit This part replaces 705501258. |
| 23 | 705400036 | Wear Ring |
| 24 | 250200102 | Flat Washer M12 |
| 25 | 250000378 | HEX FLANGED SCREW M12 X 16, SCOTCH GRIP - Call your local BRP dealership |
| 26 | 715900101 | Fixe Yoke |
| 27 | 715900326 | Universal Joint This part replaces 715500371. |
| 28 | 715900184 | Grease Fitting |
| 29 | 509000045 | Oetiker Gear Clamp 36.1MM |
| 30 | 715900118 | Rubber Boot |
| 31 | 293650138 | Oetiker Gear Clamp 44.0MM |
| 32 | 715900187 | COVER - Call your local BRP dealership |
| 33 | 715900129 | Fixed Joint |
| 34 | 250001039 | Hex Flange Screw M12 X 16 This part replaces 250000359. |
| 35 | 705501123 | Protector |
