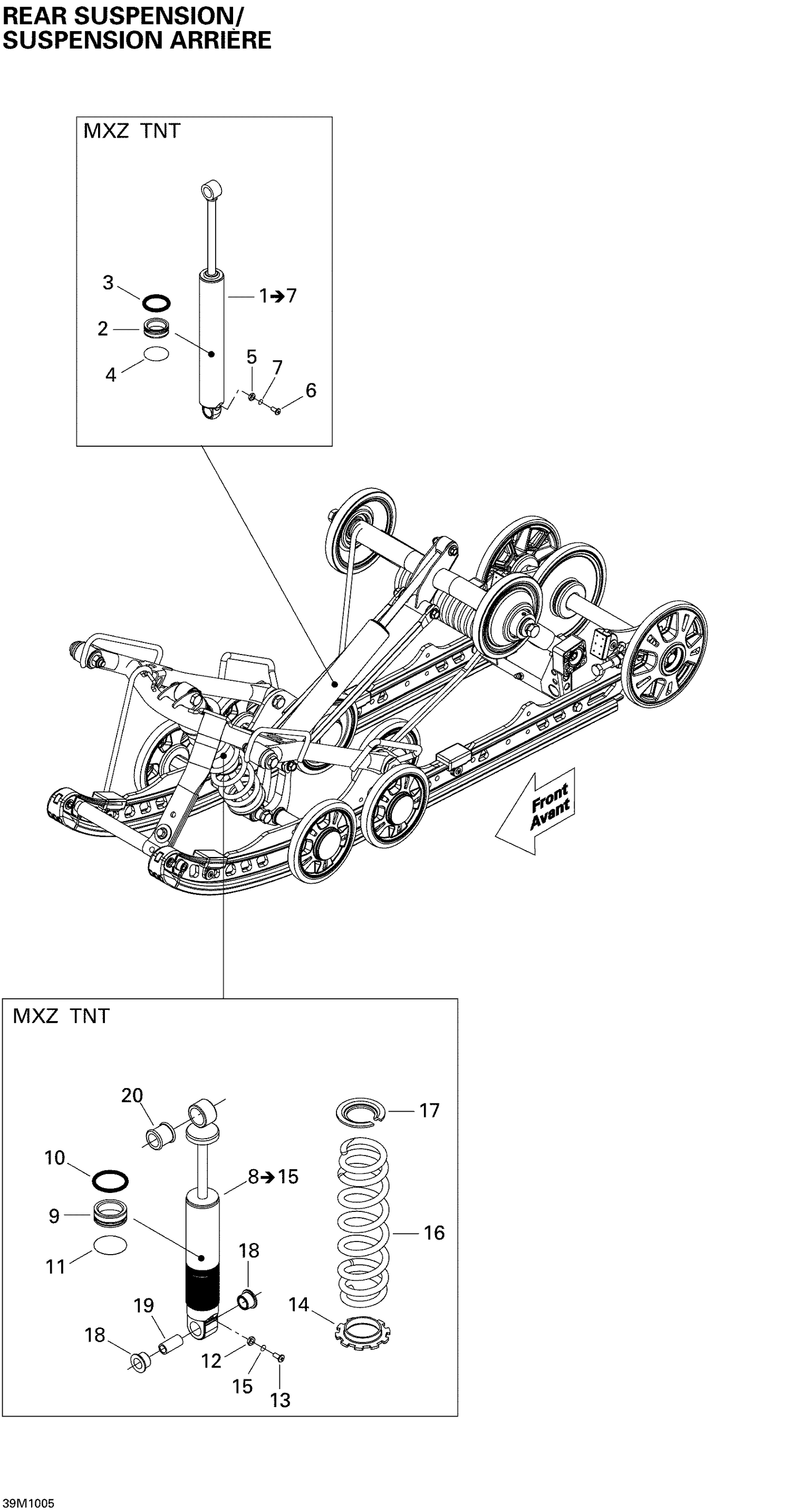

08- Rear Suspension Shocks
Parts (17)
| Ref | Part Number | Description |
|---|---|---|
| 2 | 503189309 | FREE PISTON - Call your local BRP dealership |
| 3 | 414888312 | O-Ring |
| 4 | 503189308 | Piston Ring |
| 5 | 505070398 | Air Valve |
| 6 | 505070399 | Screw |
| 7 | 505070400 | O-Ring |
| 9 | 503189309 | FREE PISTON - Call your local BRP dealership |
| 10 | 414888312 | O-Ring |
| 11 | 503189308 | Piston Ring |
| 12 | 505070398 | Air Valve |
| 13 | 505070399 | Screw |
| 14 | 414888316 | SPRING COLLAR - Call your local BRP dealership |
| 15 | 505070400 | O-Ring |
| 16 | 503191329 | Black, Spring |
| 17 | 503194270 | Spring Stopper This part replaces 503192029. |
| 18 | 503189117 | Urethane Bushing |
| 19 | 503189282 | Bushing |
