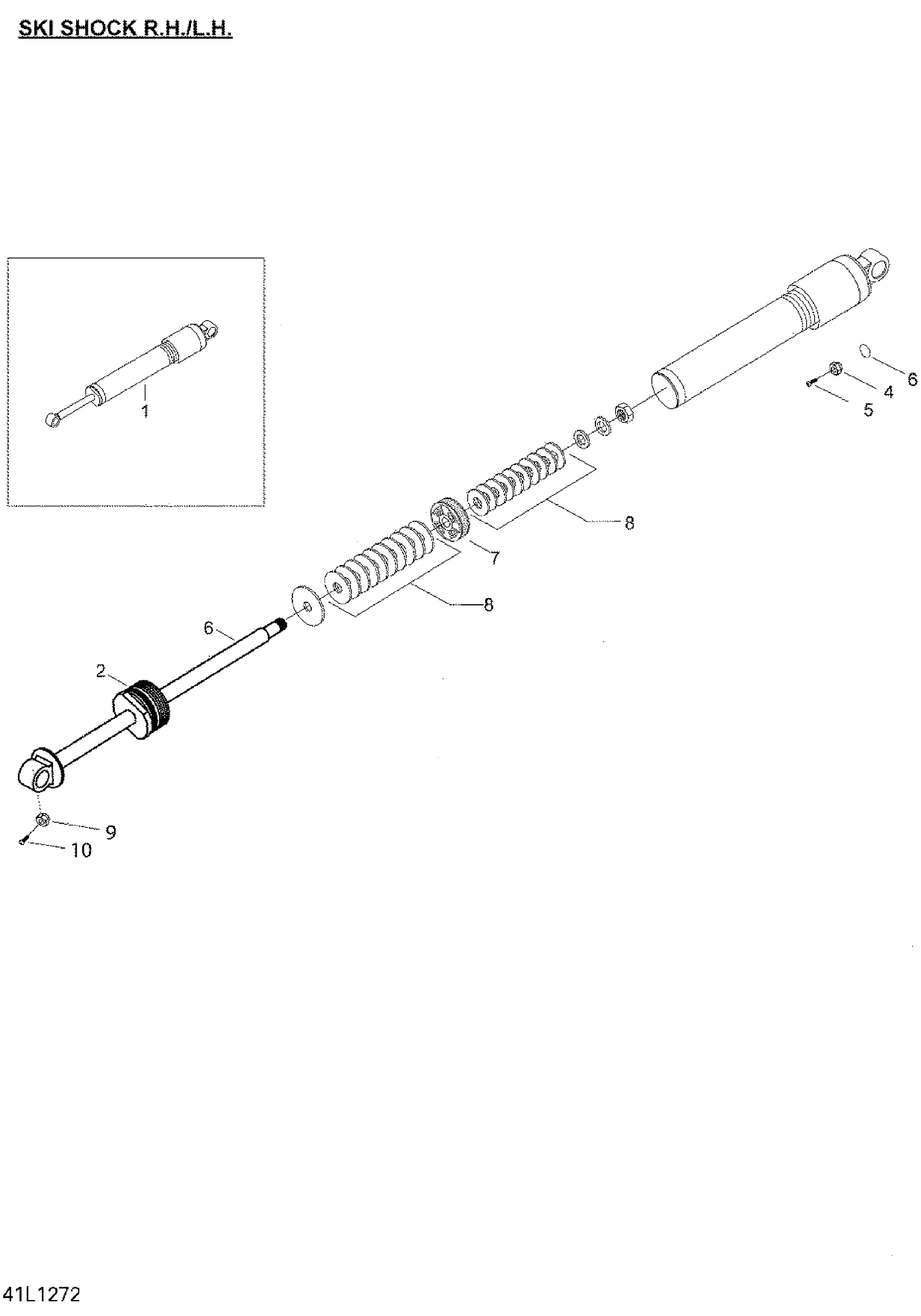

| Ref | Part Number | Description |
|---|
| 1 |
505072908 |
Shock (cal.505072908) |
| 2 |
619300004 |
Seal carrier ass'y |
| 3 |
619300169 |
Rod assy |
| 4 |
505070398 |
Air Valve |
| 5 |
505070399 |
Screw |
| 6 |
505070400 |
O-Ring |
| 7 |
415128848 |
Piston (2 X 0,3-1) (C36) |
| 7 |
619300071 |
Piston 36mm., 3 X 0,3 Slits |
| 7 |
619300108 |
Piston 36mm., 0 X 0,3 Slits |
| 7 |
619300109 |
Piston 36mm., 4 X 0,3 Slits |
| 7 |
619300110 |
Piston 36mm., 6 X 0,3 Slits |
| 7 |
619300111 |
Piston 36mm., 5 X 0,3 Slits |
| 7 |
619300161 |
Piston 36mm., 2 X 0,3 slits |
| 8 |
230015 |
Shim 36/40 mm. 18 X 0,114 |
| 8 |
230016 |
Shim 36/40 mm. 18 X 0,254 |
| 8 |
230017 |
Shim 36/40 mm. 20 X 0,254 |
| 8 |
230018 |
Shim 36/40 mm. 22 X 0,114 |
| 8 |
230019 |
Shim 36/40 mm. 22 X 0,254 |
| 8 |
230021 |
Shim 36/40 mm. 24 X 0,114 |
| 8 |
230022 |
Shim 36/40 mm. 24 X 0,152 |
| 8 |
230023 |
Shim 36/40 mm. 24 X 0,203 |
| 8 |
230024 |
Shim 36/40 mm. 26 X 0,114 |
| 8 |
230025 |
Shim 36/40 mm. 28 X 0,114 |
| 8 |
230026 |
Shim 36/40 mm. 28 X 0,254 |
| 8 |
619300058 |
Shim 36/40 mm. 17 X 0,254 |
| 8 |
619300075 |
Shim 36 mm. 12 X 0,152 |
| 8 |
619300076 |
Shim 36/40 mm. 13 X 0,114 |
| 8 |
619300077 |
Shim 36/40 mm. 13 X 0,152 |
| 8 |
619300078 |
Shim 36/40 mm. 13 X 0,203 |
| 8 |
619300079 |
Shim 36/40 mm. 13 X 0,254 |
| 8 |
619300080 |
Shim 36/40 mm. 14 X 0,114 |
| 8 |
619300081 |
Shim 36/40 mm. 14 X 0,152 |
| 8 |
619300082 |
Shim 36/40 mm. 14 X 0,203 |
| 8 |
619300083 |
Shim 36/40 mm. 14 X 0,254 |
| 8 |
619300084 |
Shim 36/40 mm. 16 X 0,114 |
| 8 |
619300085 |
Shim 36/40 mm. 17 X 0,114 |
| 8 |
619300086 |
Shim 36/40 mm. 17 X 0,152 |
| 8 |
619300087 |
Shim 36/40 mm. 17 X 0,203 |
| 8 |
619300088 |
Shim 36/40 mm. 19 X 0,114 |
| 8 |
619300089 |
Shim 36/40 mm. 19 X 0,152 |
| 8 |
619300090 |
Shim 36/40 mm. 19 X 0,203 |
| 8 |
619300091 |
Shim 36/40 mm. 19 X 0,254 |
| 8 |
619300092 |
Shim 36/40 mm. 21 X 0,152 |
| 8 |
619300093 |
Shim 36/40 mm. 21 X 0,203 |
| 8 |
619300094 |
Shim 36/40 mm. 21 X 0,254 |
| 8 |
619300095 |
Shim 36/40 mm. 24 X 0,254 |
| 8 |
619300096 |
Shim 36/40 mm. 28 X 0,152 |
| 8 |
619300098 |
Shim 36/40 mm. 22 X 0,203 |
| 8 |
619300099 |
Shim 36/40 mm. 26 X 0,254 |
| 8 |
619300102 |
Shim 36/40 mm. 28 X 0,203 |
| 8 |
619300114 |
Shim 36/40 mm. 16 X 0,152 |
| 8 |
619300115 |
Shim 36/40 mm. 15 X 0,152 |
| 8 |
619300116 |
Shim 36/40 mm. 16 X 0,254 |
| 8 |
619300117 |
Shim 36 mm. 12 X 0,203 |
| 8 |
619300118 |
Shim 36/40 mm. 15 X 0,254 |
| 8 |
619300119 |
Shim 36/40 mm. 16 X 0,203 |
| 8 |
619300120 |
Shim 36/40 mm. 12 X 0,254 |
| 8 |
619300121 |
Shim 36/40 mm. 15 X 0,114 |
| 8 |
619300122 |
Shim 36/40 mm. 15 X 0,203 |
| 8 |
619300123 |
Shim 36/40 mm. 18 X 0,152 |
| 8 |
619300124 |
Shim 36/40 mm. 18 X 0,203 |
| 8 |
619300125 |
Shim 36/40 mm. 20 X 0,114 |
| 8 |
619300126 |
Shim 36/40 mm. 20 X 0,152 |
| 8 |
619300127 |
Shim 36/40 mm. 20 X 0,203 |
| 8 |
619300128 |
Shim 36/40 mm. 21 X 0,114 |
| 8 |
619300129 |
Shim 36/40 mm. 22 X 0,152 |
| 8 |
619300130 |
Shim 36/40 mm. 26 X 0,152 |
| 8 |
619300131 |
Shim 36/40 mm. 26 X 0,203 |
| 8 |
619300132 |
Shim 36/40 mm. 30 X 0,203 |
| 8 |
619300162 |
Shim 36 mm. 12 X 0,114 |
| 8 |
619300167 |
Shim 36/40 mm. 30 X 0,152 |
| 8 |
619300168 |
Shim 36/40 mm. 30 X 0,254 |
| 9 |
505072635 |
Spring Stopper |
