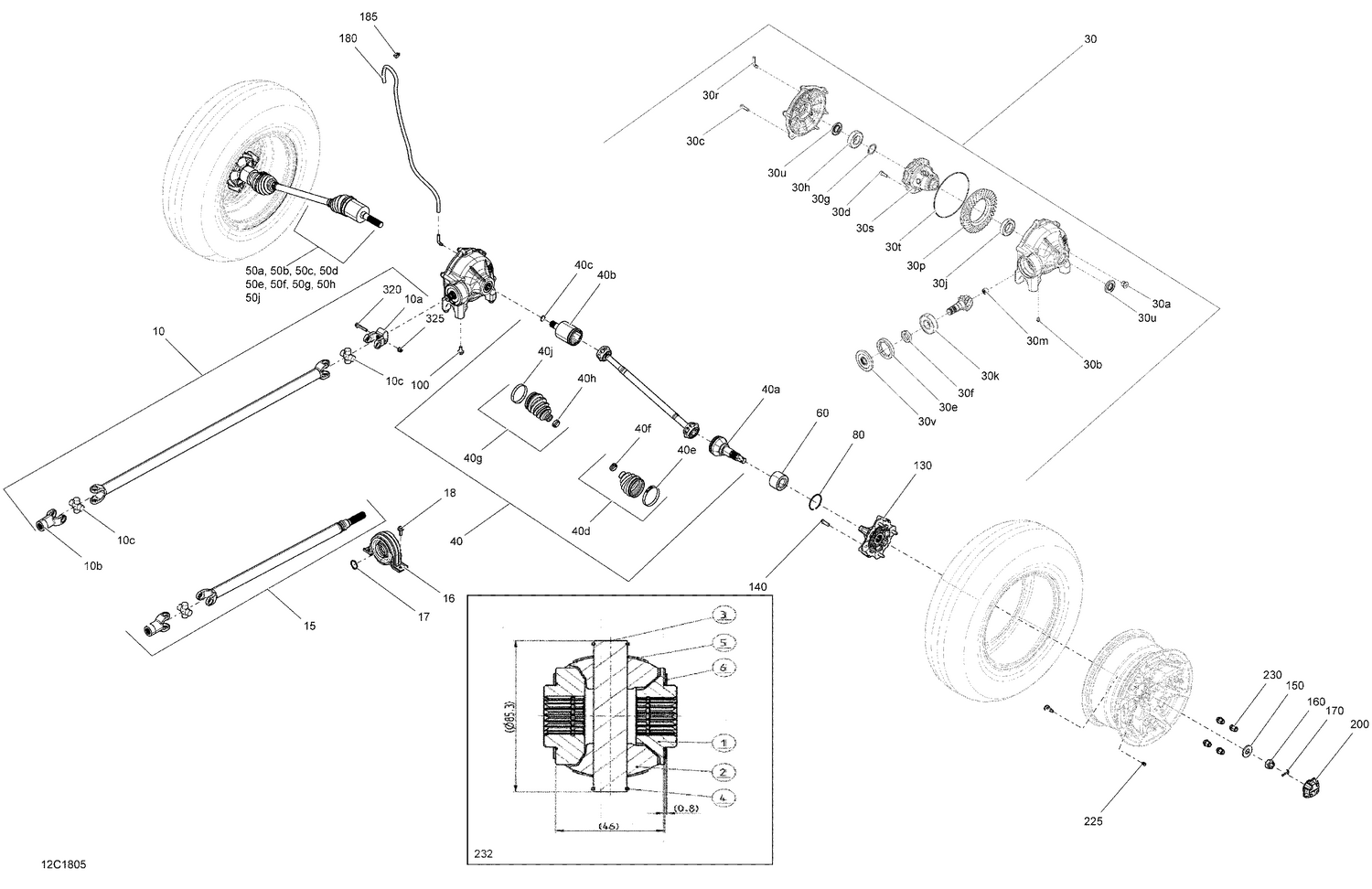

| Ref | Part Number | Description |
|---|
| 10a |
715900401 |
Yoke |
| 10b |
715900400 |
Fixed Yoke |
| 10c |
715900402 |
J-Joint Cross Kit |
| 30a |
705501889 |
Fill Level Plug |
| 30b |
705501885 |
Drain Plug |
| 30c |
705501886 |
Bolt |
| 30d |
705402375 |
Screw This part replaces 705401818. |
| 30e |
705401819 |
Nut M75 X 1.5 |
| 30f |
705401820 |
Nut M27 X 1.5 |
| 30g |
705401604 |
Shim |
| 30h |
705401606 |
Ball Bearing |
| 30j |
705402847 |
Ball Bearing This part replaces 705401934. |
| 30k |
705401821 |
Ball Bearing |
| 30m |
705402848 |
Ball Bearing This part replaces 705401607. |
| 30n |
705401667 |
Front Cover |
| 30p |
705402788 |
Ring Gear 36 Teeth This part replaces 705401822. |
| 30q |
705401933 |
Pinion 10 th. |
| 30r |
705401935 |
Vent Valve |
| 30s |
705402377 |
Differential This part replaces 705401887. |
| 30t |
705501881 |
Oil Seal iDIA 6.737 oDIA 6.943 |
| 30u |
705401836 |
Oil Seal |
| 30v |
705401827 |
Oil Seal, Triple Lip 25 X 79 X 8 |
| 40a |
715900440 |
JOINT_CV EXT - Call your local BRP dealership |
| 40b |
715900441 |
RH Plunging Joint |
| 40c |
705401349 |
Circlip Joint |
| 40d |
705401345 |
Boot Kit, Wheel Side |
| 40e |
715900282 |
Oetiker Clamp |
| 40f |
715900283 |
Oetiker Clamp, Small |
| 40g |
705401355 |
Boot Kit, Différential Side |
| 40h |
715900261 |
Oetiker Clamp, Small |
| 40j |
715900262 |
Oetiker Clamp, Large |
| 50a |
715900440 |
JOINT_CV EXT - Call your local BRP dealership |
| 50b |
715900442 |
Joint Plongeant GA |
| 50c |
705401349 |
Circlip Joint |
| 50d |
705401345 |
Boot Kit, Wheel Side |
| 50e |
715900282 |
Oetiker Clamp |
| 50f |
715900283 |
Oetiker Clamp, Small |
| 50g |
705401355 |
Boot Kit, Différential Side |
| 50h |
715900261 |
Oetiker Clamp, Small |
| 50j |
715900262 |
Oetiker Clamp, Large |
| 60 |
293350150 |
Ball Bearing This part replaces 293350118. |
| 80 |
293370019 |
Circlip |
| 100 |
207502046 |
Hex. Flange Screw M10 X 20 |
| 130 |
705502338 |
Wheel Hub |
| 140 |
250300055 |
Wheel Stud M10 X 1.25 |
| 150 |
250200170 |
Conical Spring Washer M20 |
| 160 |
250100193 |
Castle Nut M20 |
| 170 |
250400084 |
Cotter Pin |
| 180 |
219704410 |
Polyurethane Hose 10000Mm Long |
| 185 |
414227300 |
Clip |
| 225 |
293000110 |
Valve Cap |
| 232 |
703501023 |
Side Gear Kit This part replaces 703501007. |
| 320 |
250001050 |
Hex. Flange Screw M8 X 42 This part replaces 250000952. |
