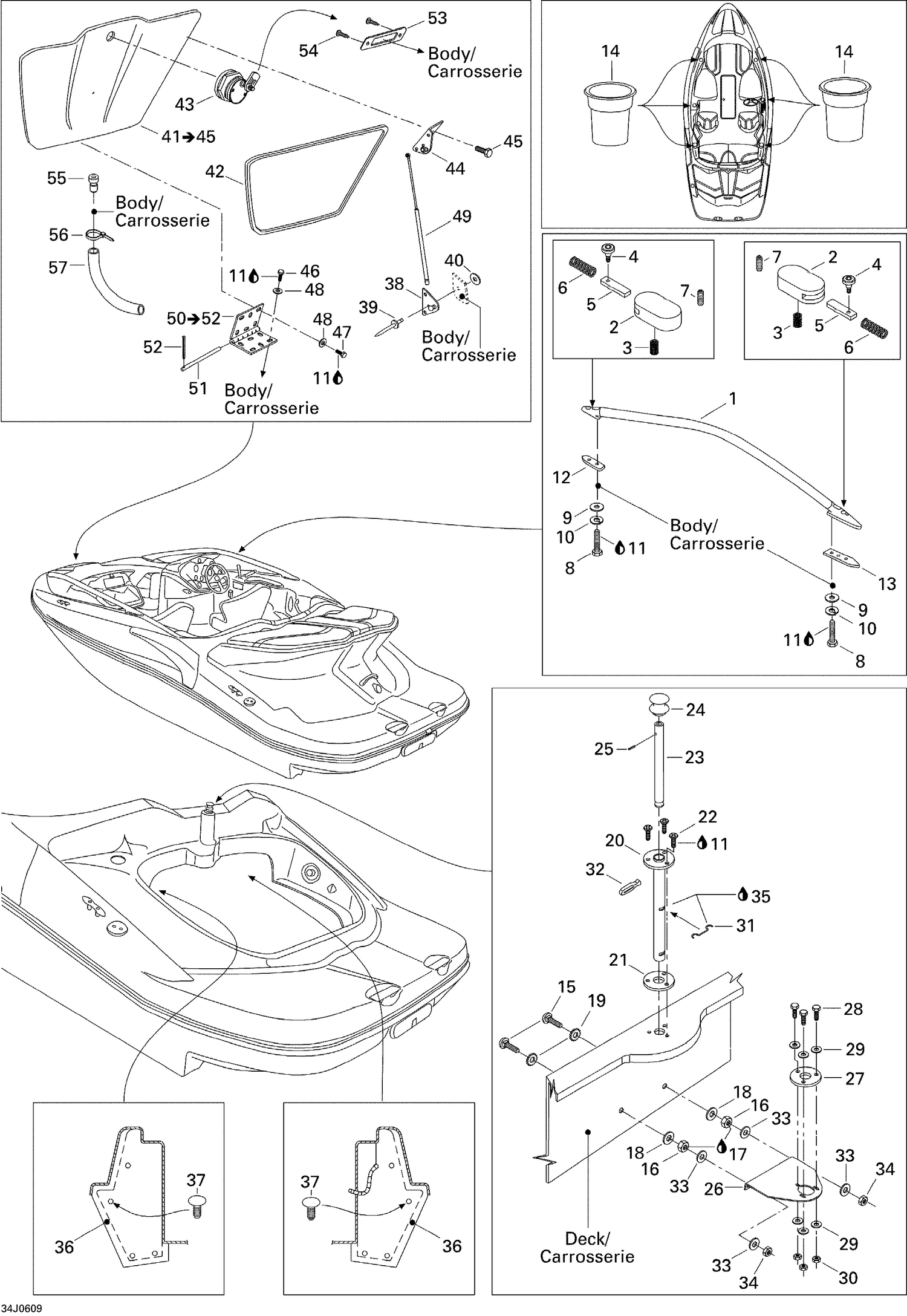

| Ref | Part Number | Description |
|---|
| 2 |
204130100 |
Rail Insert |
| 3 |
204130101 |
Rail Insert Spring |
| 4 |
204100149 |
Rail Insert Screw |
| 5 |
204130102 |
Push Pin |
| 6 |
204130103 |
Push Pin Spring |
| 7 |
204100150 |
Safety Screw |
| 8 |
204100135 |
HEX. SCREW 3/8 X 1-1/2 - Call your local BRP dealership |
| 9 |
234002600 |
Flat Washer 10 mm, Stainless |
| 10 |
234101601 |
Helicoidal Lock Washer M10 |
| 11 |
293800060 |
Loctite 243, 10 ml |
| 12 |
204130063 |
GASKET, FRONT - Call your local BRP dealership |
| 13 |
204130064 |
GASKET, REAR - Call your local BRP dealership |
| 14 |
291000619 |
CUP HOLDER - Call your local BRP dealership |
| 15 |
204000130 |
Elevator Bolt |
| 16 |
211100026 |
HEX. NUT 1/4 - Call your local BRP dealership |
| 17 |
293800005 |
Loctite 271, 10 ml |
| 18 |
234062600 |
Flat Washer M6, Stainless |
| 19 |
234381608 |
TOOTHED LOCK WASHER - Call your local BRP dealership |
| 20 |
291001057 |
FIXED TUBE - Call your local BRP dealership |
| 21 |
293830045 |
RUBBER WASHER - Call your local BRP dealership |
| 22 |
208564060 |
PHILLIPS SCREW M6 X 40 - Call your local BRP dealership |
| 23 |
204072616 |
SKI SHAFT - Call your local BRP dealership This part replaces 291001058. |
| 24 |
293000004 |
SKI SHAFT CAP - Call your local BRP dealership |
| 25 |
211400004 |
ROLLED PIN M3 X 30 - Call your local BRP dealership |
| 26 |
204071839 |
FIXATION PLATE - Call your local BRP dealership |
| 27 |
291001060 |
RETAINER WASHER - Call your local BRP dealership |
| 28 |
207162060 |
Hex. Forming Screw M6 X 20 |
| 29 |
234062600 |
Flat Washer M6, Stainless |
| 30 |
232561600 |
Hex. Elastic Stop Nut M6 |
| 31 |
291001205 |
SPRING - Call your local BRP dealership |
| 32 |
570023800 |
Windshield Latch |
| 33 |
234062600 |
Flat Washer M6, Stainless |
| 34 |
212000005 |
NUT-STOP ELASTIC MS-17830 - Call your local BRP dealership |
| 35 |
293550010 |
Synthetic Grease, 400 G |
| 36 |
204071935 |
SOUNDWALL SEAL - Call your local BRP dealership |
| 37 |
293730014 |
Black Dart |
| 38 |
204071673 |
Shock Bracket |
| 39 |
293150043 |
Pop Rivet 3/16" |
| 40 |
234051600 |
Flat Washer M5, Stainless |
| 42 |
219704365 |
Was 293200017 Neoprene Seal |
| 43 |
204071937 |
FLUSH LATCH - Call your local BRP dealership |
| 44 |
204073074 |
Shock Bracket This part replaces 204071700. |
| 45 |
207341260 |
Hex. Screw M4 X 12, Scotch Grip |
| 46 |
207162560 |
Hex. Screw M6 X 25 |
| 47 |
207161660 |
Hex. Screw M6 X 16 |
| 48 |
234061600 |
Stainless Flat Washer M6 |
| 49 |
204071918 |
CYLINDER GAS SHOCK - Call your local BRP dealership |
| 51 |
204070204 |
HINGE ROD - Call your local BRP dealership |
| 52 |
204070205 |
Cotter Pin M2.5 X 12 |
| 53 |
204072027 |
LATCH PLATE - Call your local BRP dealership |
| 54 |
Not |
Available As Spare Part - Phillips Tapping Screw M4.2 X 25 |
| 55 |
204071783 |
DRAIN FITTING - Call your local BRP dealership |
| 56 |
293750001 |
Tie Wrap 94 mm |
