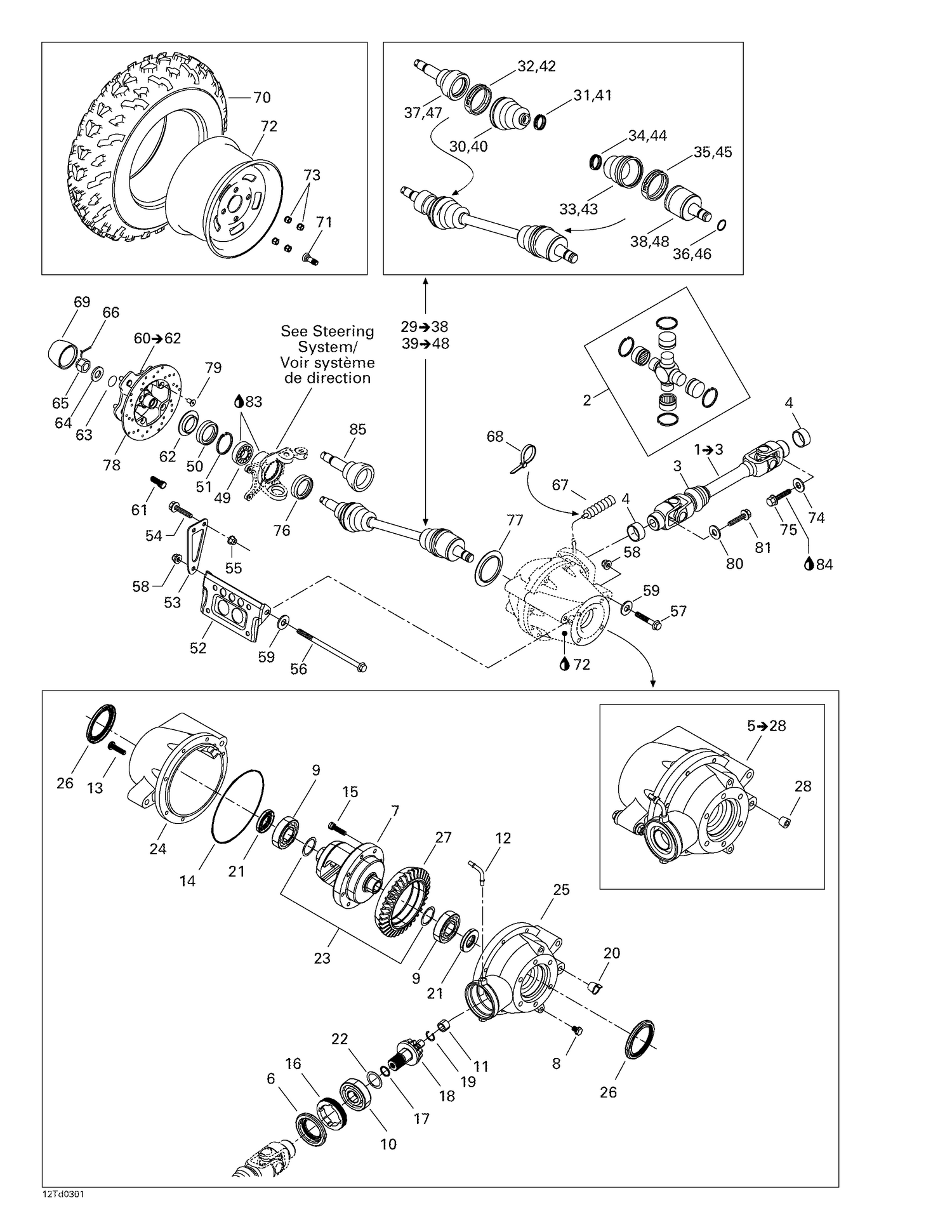

| Ref | Part Number | Description |
|---|
| 2 |
715900325 |
Ens. Croix*U-Joint Cross Kit This part replaces 703500002. |
| 3 |
705400051 |
PROTECTOR - Call your local BRP dealership |
| 6 |
705401481 |
Oil Seal This part replaces 705400027. |
| 7 |
705400404 |
DIFFERENTIAL - Call your local BRP dealership This part replaces 705400004. |
| 8 |
705500894 |
Drain Plug This part replaces 705500245. |
| 9 |
705401606 |
Ball Bearing This part replaces 705500259. |
| 10 |
705500260 |
Ball Bearing |
| 11 |
705500261 |
Needle Bearing |
| 12 |
705500893 |
VENT VALVE - Call your local BRP dealership This part replaces 705500262. |
| 13 |
705401601 |
Screw This part replaces 705500264. |
| 14 |
705500265 |
Seal |
| 15 |
705400101 |
RING GEAR SCREW - Call your local BRP dealership |
| 16 |
705401603 |
Nut This part replaces 705500266. |
| 17 |
705500267 |
O-Ring |
| 18 |
705500268 |
GEAR, 10 TEETH - Call your local BRP dealership |
| 19 |
705500269 |
RETAINING RING - Call your local BRP dealership |
| 20 |
705500246 |
Protector Plug |
| 21 |
705401618 |
Gasket This part replaces 705500255. |
| 22 |
705502061 |
Pinion Gear Shim 1.67 mm This part replaces 703500049. |
| 23 |
705401604 |
Shim This part replaces 703500050. |
| 24 |
705400099 |
Front Cover |
| 25 |
705500177 |
Differential Carrier |
| 26 |
705400019 |
OIL SEAL - Call your local BRP dealership |
| 27 |
705400103 |
Crown Gear |
| 30 |
705400127 |
Boot Wheel Kit |
| 31 |
705400064 |
CLAMP - Call your local BRP dealership |
| 32 |
705400180 |
Clamp |
| 33 |
705400126 |
Boot Differential Kit |
| 34 |
705400064 |
CLAMP - Call your local BRP dealership |
| 35 |
705400181 |
Clamp |
| 36 |
705400042 |
CIRCLIP - Call your local BRP dealership |
| 37 |
705400093 |
CV JOINT - Call your local BRP dealership |
| 38 |
705400128 |
RH Plunging Joint |
| 40 |
705400127 |
Boot Wheel Kit |
| 41 |
705400064 |
CLAMP - Call your local BRP dealership |
| 42 |
705400180 |
Clamp |
| 43 |
705400126 |
Boot Differential Kit |
| 44 |
705400064 |
CLAMP - Call your local BRP dealership |
| 45 |
705400181 |
Clamp |
| 46 |
705400042 |
CIRCLIP - Call your local BRP dealership |
| 47 |
705400093 |
CV JOINT - Call your local BRP dealership |
| 48 |
705400129 |
LH Plunging Joint |
| 49 |
293350150 |
Ball Bearing This part replaces 705400088. |
| 50 |
705500099 |
OIL SEAL - Call your local BRP dealership |
| 51 |
293370019 |
Circlip |
| 52 |
705400068 |
Bracket (Differential) |
| 53 |
705400069 |
RH Diffential Front Bracket |
| 61 |
250300055 |
Wheel Stud M10 X 1.25 This part replaces 250300020. |
| 62 |
705500100 |
WEAR RING - Call your local BRP dealership |
| 63 |
705500271 |
O-RING - Call your local BRP dealership |
| 64 |
250200019 |
WASHER - Call your local BRP dealership |
| 65 |
232291413 |
Hex. Flange Castellated Nut M18 |
| 66 |
250400036 |
Cotter Pin This part replaces 250400016. |
| 69 |
705400012 |
WHEEL CAP - Call your local BRP dealership |
| 70 |
705402890 |
Tire 205 X 80 R12 This part replaces 705400009. |
| 71 |
705400193 |
Rim Valve With Cap This part replaces 705400053. |
| 73 |
705400013 |
HEX. NUT - Call your local BRP dealership |
| 76 |
293250090 |
Oil Seal |
| 78 |
705600168 |
Brake disc 205 mm |
| 79 |
235381646 |
Torx Screw M8 X 16, Scotch Grip |
| 83 |
293550010 |
Synthetic Grease, 400 G |
