| Ref | Part Number | Description |
|---|
| 2 |
0202991 |
SCREW, Cam lever |
| 3 |
0554330 |
SCREW, Cam lever |
| 4 |
0206415 |
FRICTION ADJUSTING SCREW |
| 5 |
0206417 |
NUT FRICTION ADJUNSTMENT SCREW |
| 6 |
0279177 |
LEAD ASSEMBLY IGNITION SWITCH TO CHOKE SWITC |
| 7 |
0316166 |
WASHER |
| 8 |
0206701 |
MOUNTING BRACKET, Honr |
| 9 |
0316165 |
RELEASE KNOB |
| 11 |
0279455 |
INSTRUMENT CABLE, Std |
| 11 |
0279457 |
INSTRUMENT CABLE, Long |
| 21 |
0308268 |
SCREW, Ground lead |
| 22 |
0279177 |
LEAD ASSEMBLY IGNITION SWITCH TO CHOKE SWITC |
| 25 |
0900696 |
WASHER |
| 27 |
0279175 |
CHOKE SWITCH ASSEMBLY |
| 30 |
0511025 |
TUBE, Heat shrink |
| 31 |
0310690 |
WASHER, Link |
| 32 |
0306014 |
VIS, ancrage |
| 36 |
0329594 |
SCREW, Cam follower This part replaces 0303737. |
| 37 |
0308517 |
ROLLER, Lever to box |
| 38 |
0308530 |
SPACER, Control housing |
| 40 |
0310096 |
SCRE, Throttle link |
| 42 |
0585992 |
HORN This part replaces 0279336. |
| 43 |
0386947 |
IGNITION SWITCH This part replaces 0383493. |
| 47 |
KEY, |
Igniton |
| 49 |
0384850 |
CONTROL HOUSING & PIN ASSEMBLY. MECH HALF |
| 50 |
0316571 |
SCREW |
| 51 |
0384032 |
ARM & ROD ASSY |
| 53 |
0315647 |
LOCK PIN, Lever |
| 54 |
0315648 |
SPRING, Lock pin |
| 55 |
0316770 |
LEVER ,Warm up |
| 56 |
0315651 |
SCREW, Friction lever |
| 57 |
0315652 |
GUIDE, Warm up lever to housing |
| 58 |
0316771 |
LEVER |
| 59 |
0315654 |
KNOB, Lever |
| 62 |
0315657 |
LEVER, Reverse lock |
| 63 |
0315658 |
CAM, Lever |
| 64 |
0315659 |
SPRING, Roller level |
| 65 |
0384695 |
HOUSING, Elecrical half |
| 66 |
0316571 |
SCREW |
| 67 |
0315663 |
WASHER, Lever arm |
| 68 |
0315664 |
SCREW, Control housing |
| 69 |
0316772 |
SET SCREW, Lever stop |
| 70 |
0315811 |
KNOB, Friction adjustment screw |
| 71 |
0384851 |
LINK ASSY |
| 72 |
0385253 |
SWITCH & CABLE ASSY |
| 73 |
0316580 |
SWITCH PLATE |
| 74 |
0307025 |
SCREW,Friction adjusting screw |
| 76 |
0316595 |
RETAINER, Leads |
| 79 |
0279176 |
BLOCKING DIODE ASSEMBLY |
| 83 |
0317298 |
SLEELVE,Insulation |
| 84 |
0581003 |
LEAD, Ignition to shift switch |
| 85 |
0317298 |
SLEELVE,Insulation |
| 89 |
0303317 |
SCREW |
| 90 |
0206408 |
CASE GUIDE,Control hsg. |
| 93 |
0307063 |
O RING |
| 94 |
0173506 |
SCREW This part replaces 0303285. |
| 95 |
0173506 |
SCREW This part replaces 0303222. |
| 97 |
0385959 |
CLAMP & SET SC R.ASSY. This part replaces 0206423. |
| 98 |
0310685 |
ABCHOR BLCOK, Trunnion |
| 99 |
0310687 |
DETENT SPRING, Anchor block |
| 100 |
0310688 |
SAPCER, Anchor block |
| 101 |
0310686 |
SCREW |
| 102 |
THROTTLE |
CABLE, 5 thru 50 |
| 103 |
0315452 |
NUT, Adjust |
| 0385251 |
0385251 |

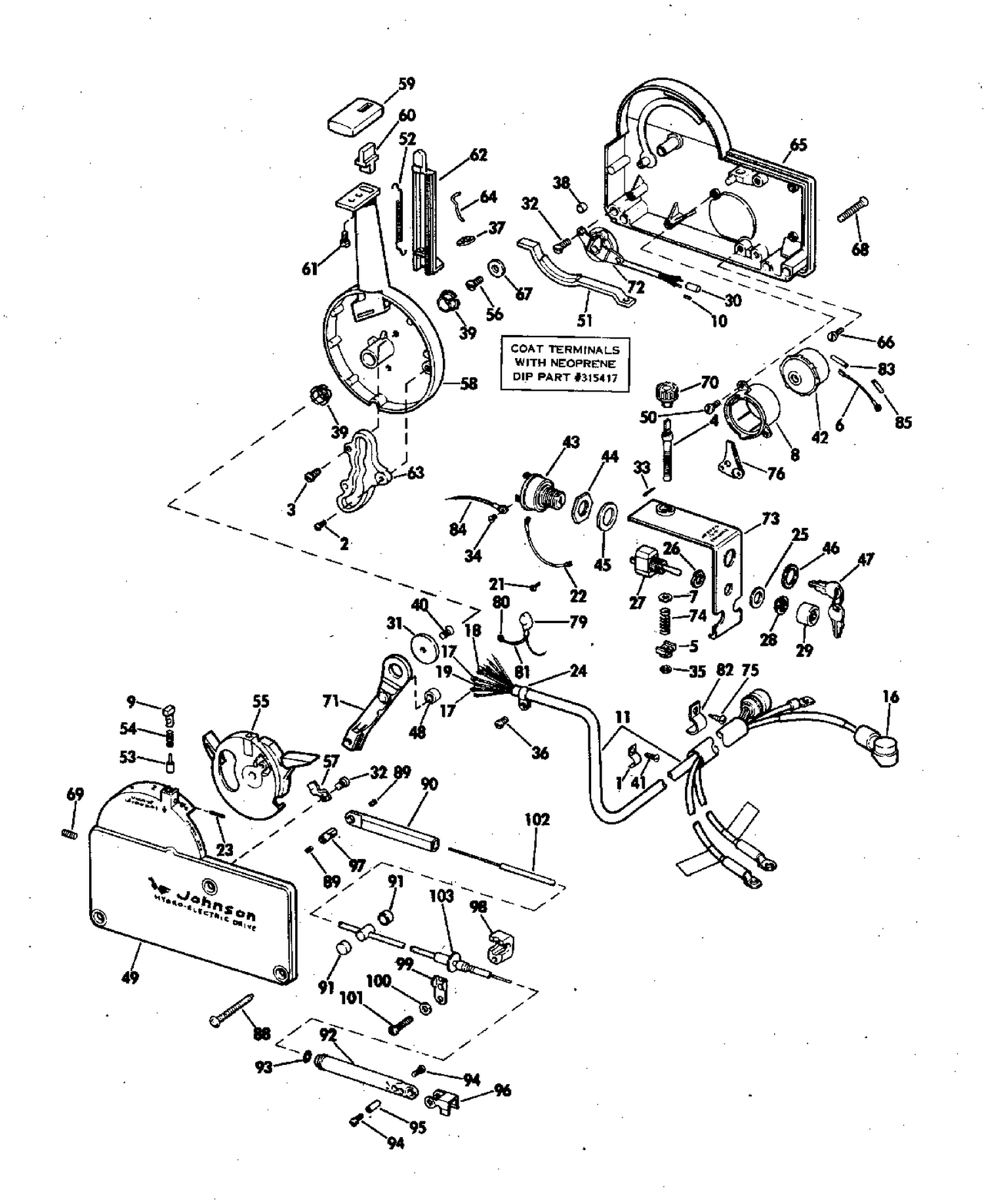

REMOTE CONTROL ASSY |
