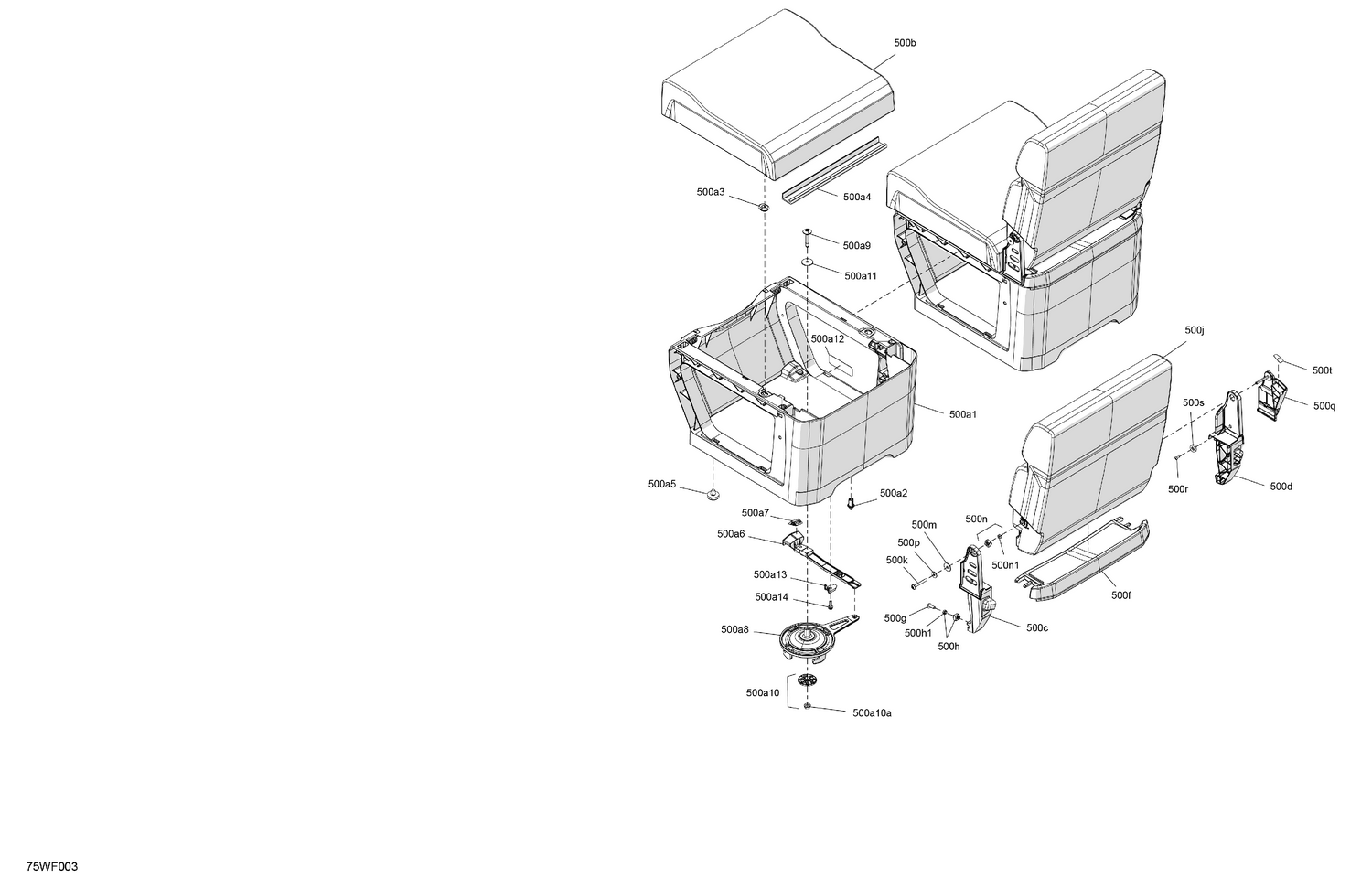

07- FURNITURE - Stern Bench
Parts (28)
| Ref | Part Number | Description |
|---|---|---|
| 500a1 | 269003309 | Seat Support |
| 500a10a | 233181600 | Hex. Flange Nut M8 |
| 500a11 | 250200130 | Flat Washer 8 mm |
| 500a12 | 219905883 | Seat Anchorage Warning Label |
| 500a13 | 269004160 | Guide |
| 500a14 | 243162060 | Hex. Flange Screw M6.81 x 20 |
| 500a2 | 269003492 | Locator Rod |
| 500a3 | 705000321 | Oval Washer |
| 500a4 | 269003483 | Gutter |
| 500a5 | 269003502 | Rubber Stopper |
| 500a6 | 295101126 | Lever Latch Service Kit |
| 500a7 | 219905993 | Lever Decal |
| 500a8 | 269003311 | Seat Anchorage |
| 500a9 | 250001154 | Torx Head M8 X 50 S.GRIP |
| 500b | 269004369 | Sapphire Breeze, Seat Cushion Ass'y -Tx |
| 500c | 269003609 | LH Overmolded Support |
| 500d | 269003764 | RH Overmolded Support |
| 500f | 269003765 | Support Trim |
| 500g | 250000234 | Torx Screw M6 X 20, Stainless |
| 500h1 | 232561200 | Brass Elastic Stop Nut M6 |
| 500j | 269004385 | Sapphire Breeze, Tilting Backrest Ass'y -Tx |
| 500k | 250000827 | Torx Screw Truss Cone HD.M6X50 |
| 500m | 250200044 | Flat Washer M6 X 25 |
| 500n1 | 232561200 | Brass Elastic Stop Nut M6 |
| 500p | 234062100 | Flat Washer 6 mm |
| 500q | 269003892 | Backrest Stopper |
| 500r | 250001119 | Screw K40 X 10 |
| 500s | 269003895 | Stopper |
