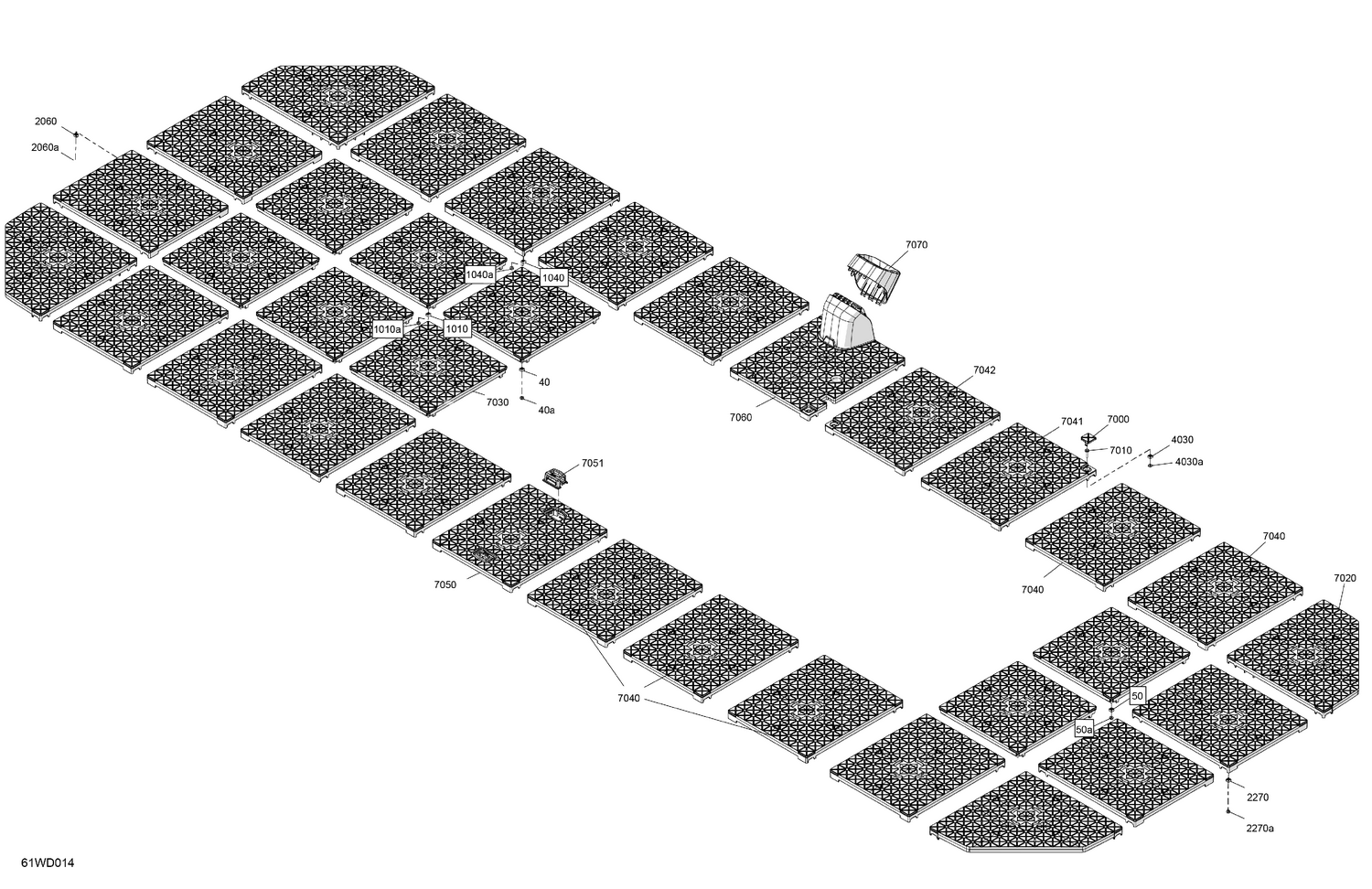

05- FLOOR - System Assembly
Parts (17)
| Ref | Part Number | Description |
|---|---|---|
| 40a | 232561200 | Brass Elastic Stop Nut M6 |
| 50a | 232561200 | Brass Elastic Stop Nut M6 |
| 1010a | 232561200 | Brass Elastic Stop Nut M6 |
| 1040a | 232561200 | Brass Elastic Stop Nut M6 |
| 2060a | 232561200 | Brass Elastic Stop Nut M6 |
| 2270a | 232561200 | Brass Elastic Stop Nut M6 |
| 4030a | 232561200 | Brass Elastic Stop Nut M6 |
| 7000 | 291004897 | Tile Cap |
| 7010 | 250000969 | Hex Screw SEMS M6X35, SS |
| 7020 | 291004853 | Interlocking Triangle Tile |
| 7030 | 291004857 | Interlocking Square Tile |
| 7040 | 291004858 | Interlocking Rectangle Tile |
| 7041 | 291006181 | Interlocking Driver Tile |
| 7042 | 291006182 | Interlocking Console Tile |
| 7050 | 291005480 | Interlocking Tile Linq |
| 7051 | 291005951 | Monument Gray, Cargo Base |
| 7060 | 291006232 | Interlocking Neck Tile |
