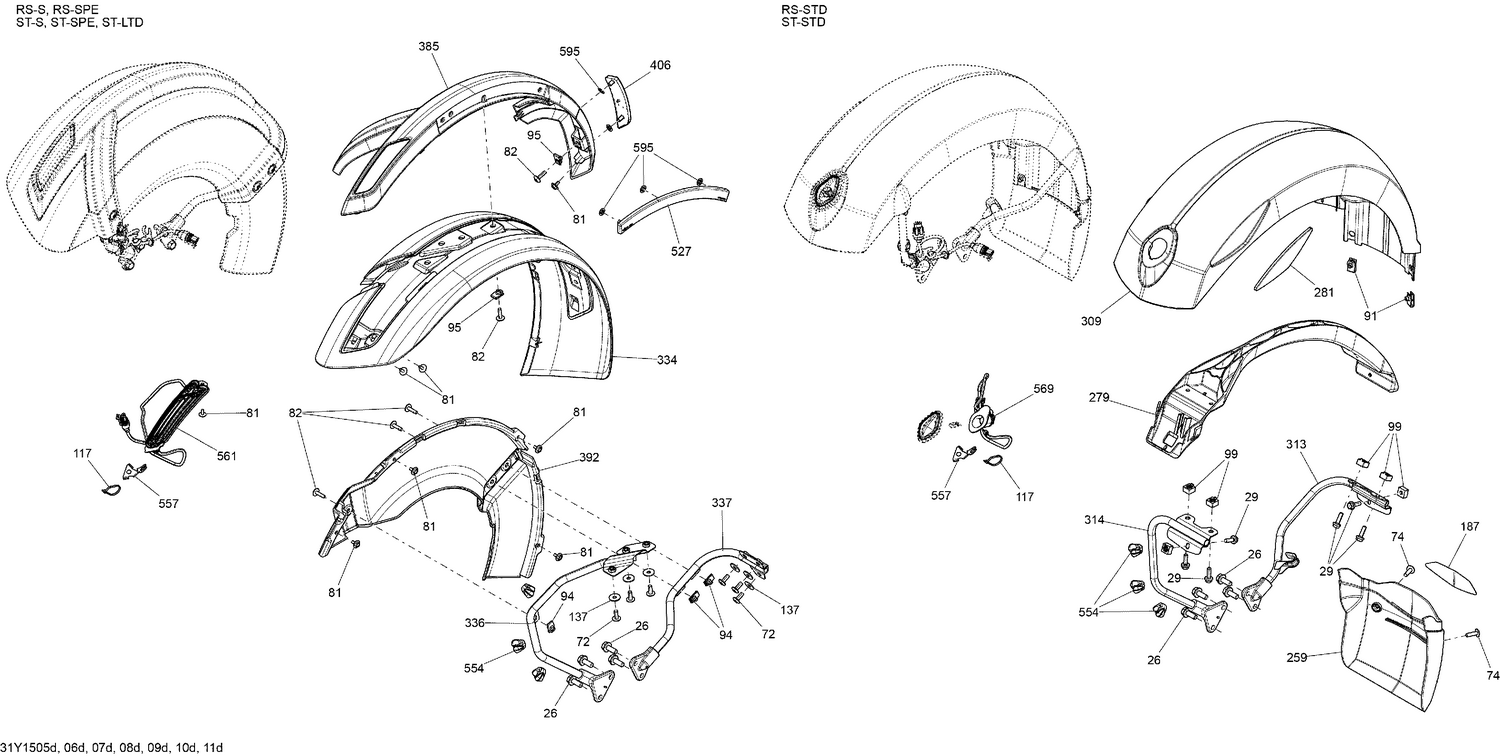

| Ref | Part Number | Description |
|---|
| 26 |
207582034 |
Hex. Flange Screw, Scotch Grip |
| 29 |
XXX |
Not Available As Spare Parts |
| 72 |
250000348 |
Torx Truss Screw M6 X 16 |
| 74 |
XXX |
Not Available As Spare Parts |
| 81 |
250000805 |
Plastite Screw M4 X 10 This part replaces 250000585. |
| 82 |
250000586 |
Torx Truss M5 X 20 |
| 91 |
XXX |
Not Available As Spare Parts |
| 94 |
250100176 |
Panel Nut M5 X 0.8 |
| 95 |
250100176 |
Panel Nut M5 X 0.8 |
| 99 |
XXX |
Not Available As Spare Parts |
| 117 |
293750001 |
Tie Wrap 94 mm |
| 137 |
250200082 |
Flat Washer |
| 187 |
XXX |
Not Available As Spare Parts |
| 259 |
XXX |
Not Available As Spare Parts |
| 279 |
XXX |
Not Available As Spare Parts |
| 281 |
XXX |
Not Available As Spare Parts |
| 309 |
XXX |
Not Available As Spare Parts |
| 313 |
XXX |
Not Available As Spare Parts |
| 314 |
XXX |
Not Available As Spare Parts |
| 334 |
705004801 |
Bare, LH Front Fender This part replaces 705008027. |
| 334 |
705006909 |
Metallic Black Front Fender RH This part replaces 705008026. |
| 336 |
219800497 |
LH Fender Front Support Kit This part replaces 705005265. |
| 336 |
705005264 |
RH PAINTED FENDER FRONT SUPPORT - Call your local BRP dealership |
| 337 |
219800398 |
RH Fender Rear Support Kit This part replaces 705008117. |
| 337 |
219800414 |
LH Support This part replaces 705008116. |
| 385 |
705006912 |
Carbone Black Front Fender Moulding LH This part replaces 705008010. |
| 385 |
705006913 |
Carbone Black Front Fender Moulding RH This part replaces 705008011. |
| 392 |
705007616 |
LH Inner Fender |
| 392 |
705007617 |
RH Inner Fender |
| 527 |
705008661 |
Yellow LH Reflector |
| 527 |
705008662 |
Yellow RH Reflector |
| 554 |
710001452 |
WIRE BRACKET - Call your local BRP dealership |
| 557 |
710002018 |
RH WIRE SUPPORT - Call your local BRP dealership |
| 557 |
710002019 |
LH WIRE SUPPORT - Call your local BRP dealership |
| 561 |
710004032 |
LH Position Light |
| 561 |
710004033 |
RH Position Light |
| 569 |
XXX |
Not Available As Spare Parts |
