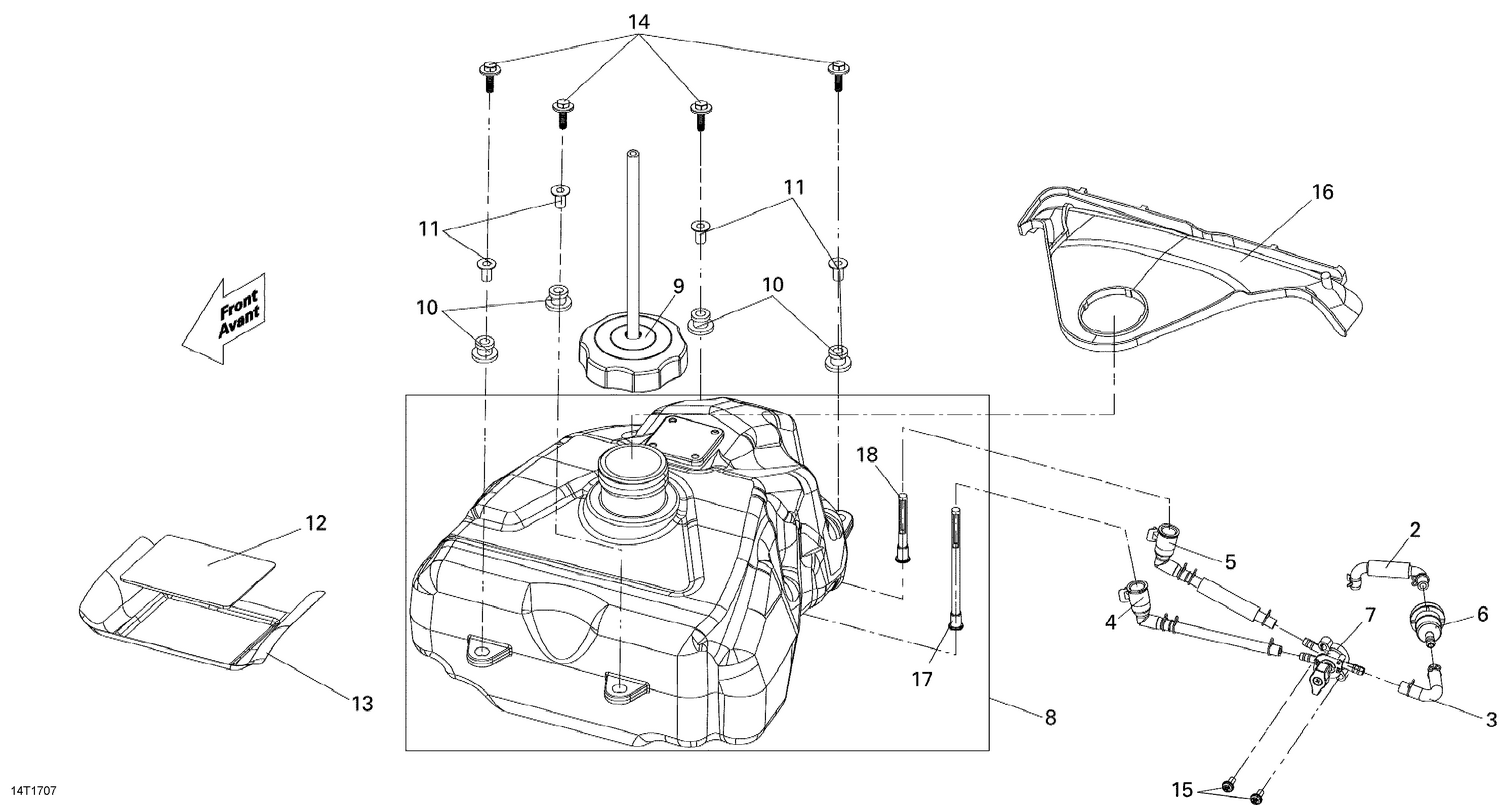

02- Fuel System
Parts (11)
| Ref | Part Number | Description |
|---|---|---|
| 6 | S16910GN5911M1 | Fuel Strainer This part replaces S16910GN5911A. |
| 7 | V16950DGF010LL | Fuel Valve This part replaces S16950RCA010. |
| 8 | S17500RCB000 | Fuel Tank |
| 9 | S17620RCB000 | Fuel Tank Cap This part replaces S17620RCA000. |
| 10 | S80103RCA000 | Fuel Tank Rubber Bushing |
| 11 | S80104RCA000 | Fuel Tank Collar |
| 12 | S80101RCA000 | Heat Shield A |
| 13 | S80102RCA000 | Heat Shield B |
| 14 | S934040603007 | Washer Bolt M6 X 30 |
| 15 | S938910501807 | Washer Bolt M5 X 18 |
| 17 | S17501RCA000 | Fuel Strainer A |
