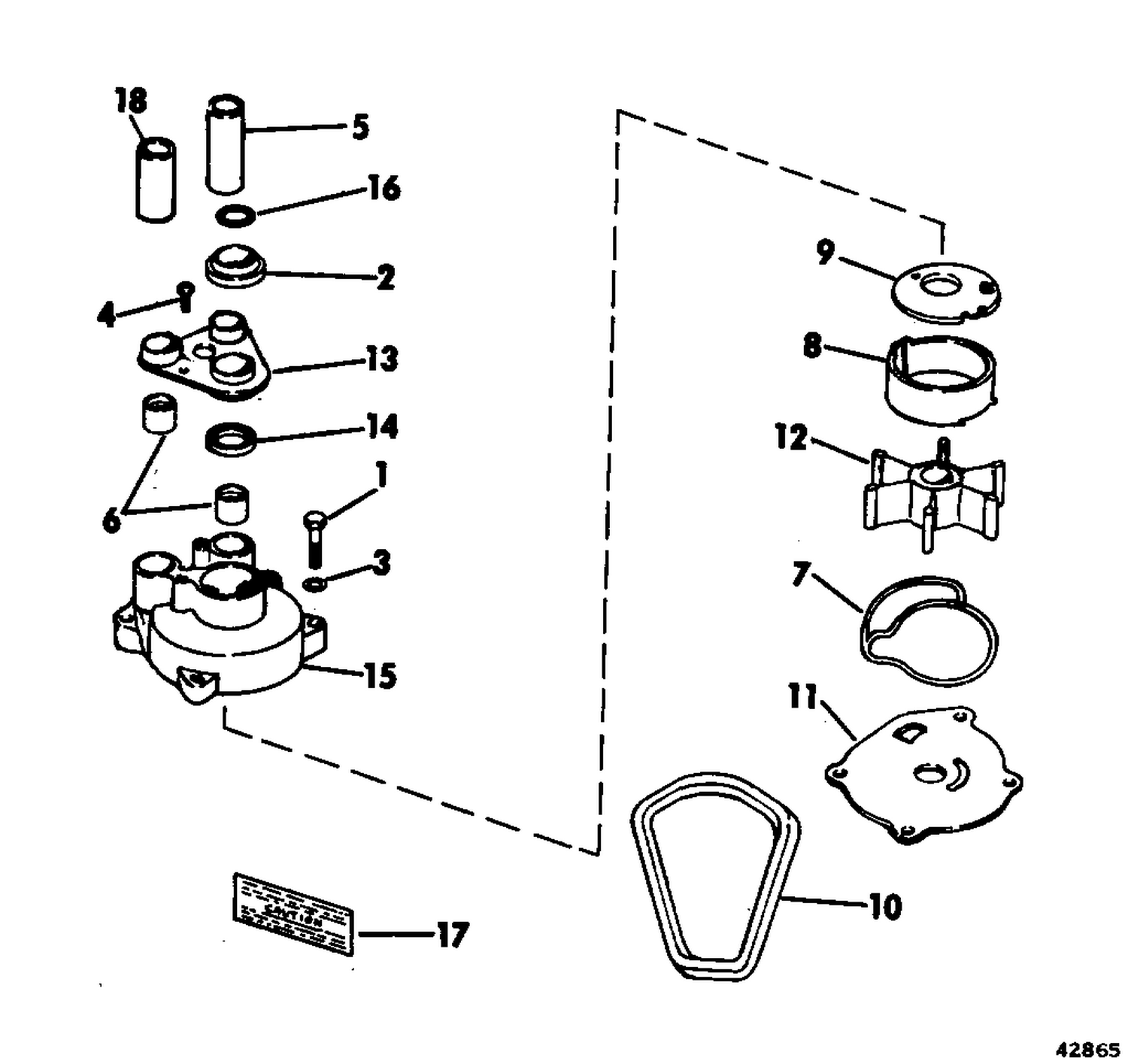

CHROME PUMP KITS 85, 115 & 135 HP
Parts (15)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 0323626 | SCREW This part replaces 0302873. |
| 2 | 0317844 | GROMMET |
| 3 | 0329241 | RONDELLE This part replaces 0305981. |
| 5 | 0314765 | GUIDE, Water tube |
| 6 | 0314832 | GROMMET, Water tube |
| 7 | 0314880 | SEAL |
| 8 | 0321651 | LINER This part replaces 0314874. |
| 9 | 0318433 | PLATE |
| 10 | 0314937 | SEAL |
| 11 | 0318365 | PLATE |
| 12 | 0385528 | IMPELLER ASSEMBLY |
| 13 | 0385545 | COVER & SEAL |
| 15 | 0385801 | IMPELLER HOUSING ASSY. |
| 17 | 0316349 | TRANSFER, Caution |
| 0385802 | 0385802 | CHROME PUMP KIT |
