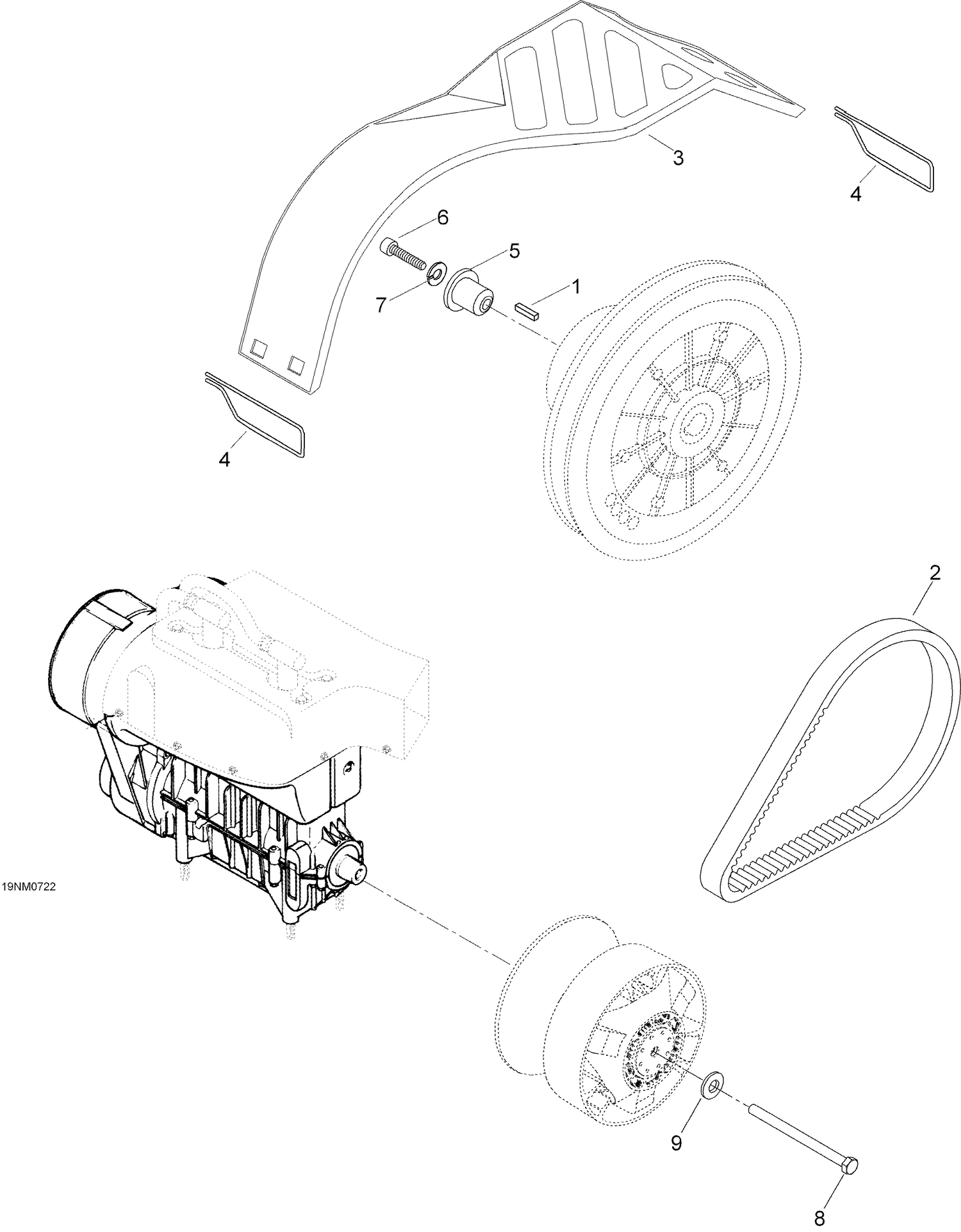

05- Pulley System
Parts (8)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 619690074 | KEY - Call your local BRP dealership This part replaces 418763. |
| 2 | 417300155 | Drive belt |
| 3 | 605150015 | Belt quard |
| 4 | 5442726 | Pin |
| 5 | 5443201 | Sleeve |
| 6 | 40286 | Allen sc. M8 X 45 DIN912m8.8Zn(1=10pcs) - Call your local BRP dealership |
| 7 | 20014 | Lock washer A8 |
| 8 | 417113800 | BOLT - Call your local BRP dealership |
