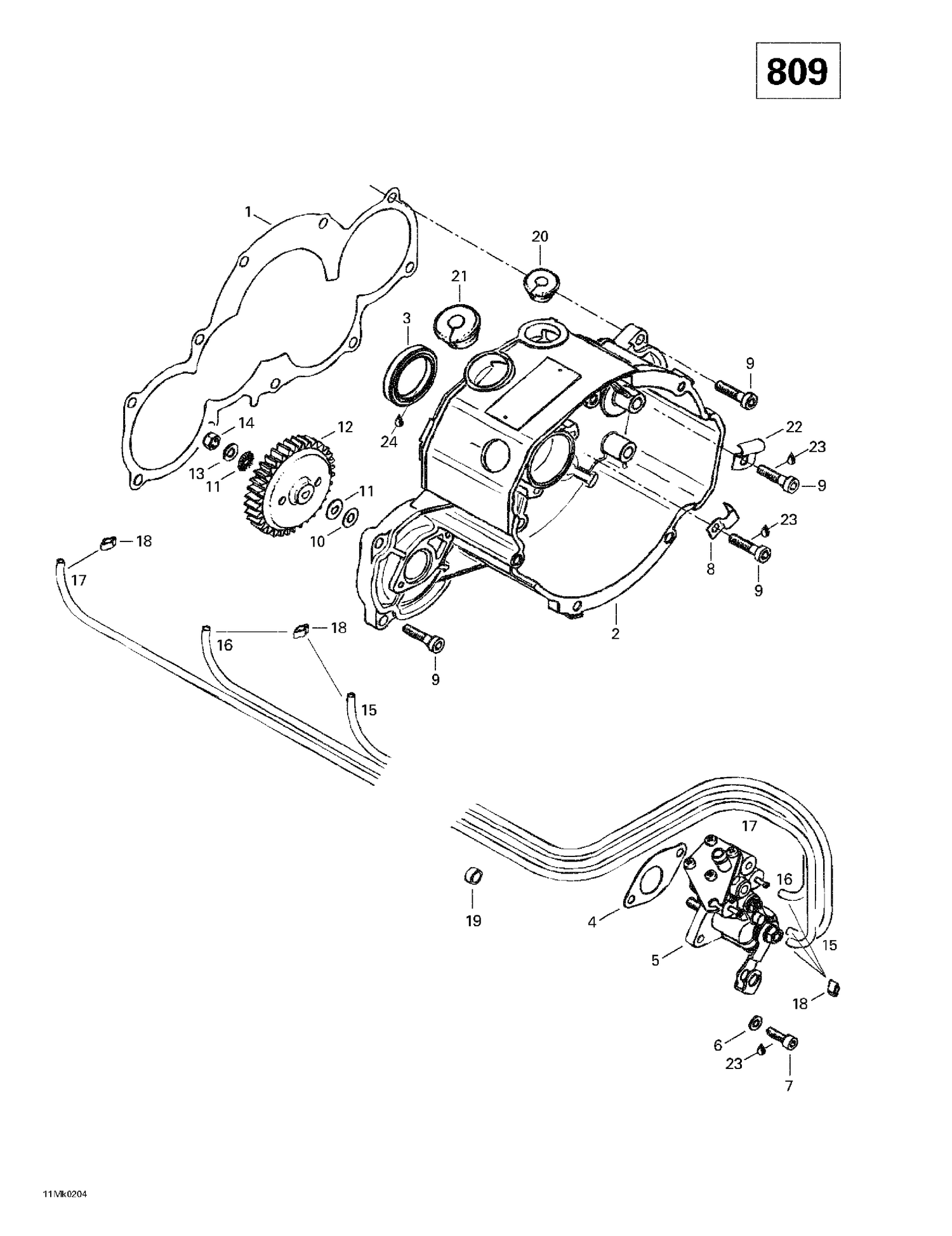

03- Ignition Housing Oil Pump
Parts (23)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 420950284 | GASKET 0.8 MM - Call your local BRP dealership |
| 2 | 420811510 | Ignition Housing |
| 3 | 420931290 | OIL SEAL - Call your local BRP dealership |
| 4 | 420950460 | Gasket |
| 5 | 420887935 | Oil Pump Ass'y |
| 6 | 420945750 | Lock Washer |
| 7 | 420640071 | Allen Screw M5 x 16 |
| 8 | 420953387 | Cable Clamp |
| 9 | 420941691 | Allen Screw M6 x 25 |
| 10 | 420244215 | Flat Washer |
| 11 | 420227150 | Washer |
| 12 | 420834270 | Oil Pump Gear (36 Tooth) |
| 13 | 420945751 | WASHER-LOCK DIN.128 - Call your local BRP dealership |
| 14 | 232561414 | Elastic Stop Nut M6 |
| 15 | 219704404 | Oil Hose 1500Mm Long |
| 16 | 219704404 | Oil Hose 1500Mm Long |
| 17 | 219704404 | Oil Hose 1500Mm Long |
| 18 | 420256408 | Clamp |
| 19 | 420960700 | Rubber Ring |
| 20 | 420860967 | Cable Grommet |
| 21 | 420860965 | Cable Grommet |
| 22 | 420953382 | Clamp |
| 23 | 293800060 | Loctite 243, 10 ml |
