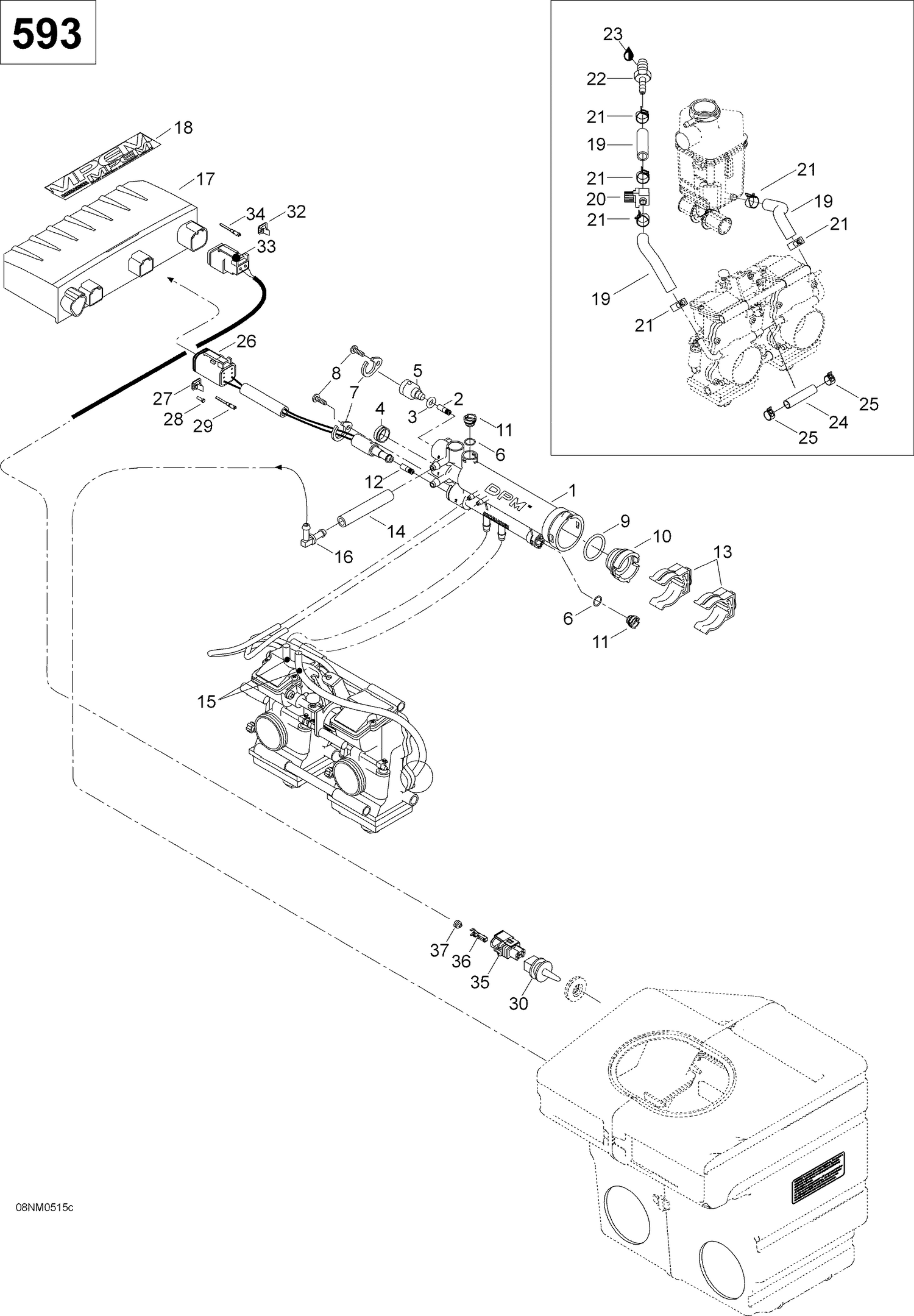

01- Engine And Engine Support, 593
Parts (34)
| Ref | Part Number | Description |
|---|---|---|
| 2 | 404161824 | Starter jet |
| 3 | 512059558 | O-ring |
| 4 | 512058982 | Cap |
| 5 | 512059557 | Cap |
| 6 | 512058925 | O-ring |
| 7 | 415061600 | SOLENOID LOCK - Call your local BRP dealership |
| 8 | 241140060 | Screw K40 x 10 |
| 9 | 512058950 | O-ring |
| 10 | 512058949 | Cap |
| 11 | 512058921 | Cap |
| 12 | 404161825 | STARTER JET - Call your local BRP dealership |
| 13 | 512058919 | SUPPORT - Call your local BRP dealership |
| 14 | 39004 | Hose |
| 15 | 39030 | Hose |
| 16 | 414580600 | Male connector |
| 17 | 512059455 | Calibration module |
| 18 | 516000245 | Decal, MPEM |
| 19 | 509000093 | Hose |
| 20 | 512059324 | Ventil |
| 21 | 414655700 | Clamp |
| 22 | 293710082 | Straight fitting |
| 23 | 293800018 | SEALANT LOCTITE 592 - Call your local BRP dealership |
| 24 | 404161956 | Hose |
| 25 | Not | Available As Spare Part - Clamp |
| 26 | 515175673 | Female connector housing |
| 27 | 515175678 | Lock |
| 28 | 293000052 | Sealing Cap |
| 29 | 278000632 | Female connector |
| 30 | 270600000 | AIR TEMPERATURE SENSOR - Call your local BRP dealership |
| 32 | 515175706 | Female lock |
| 33 | 515175670 | Female connector housing |
| 34 | 278000632 | Female terminal |
| 35 | 515175588 | FEMALE TERMINAL HOUSING, 2 CIRCUITS - Call your local BRP dealership |
| 36 | 278000998 | Female terminal |
