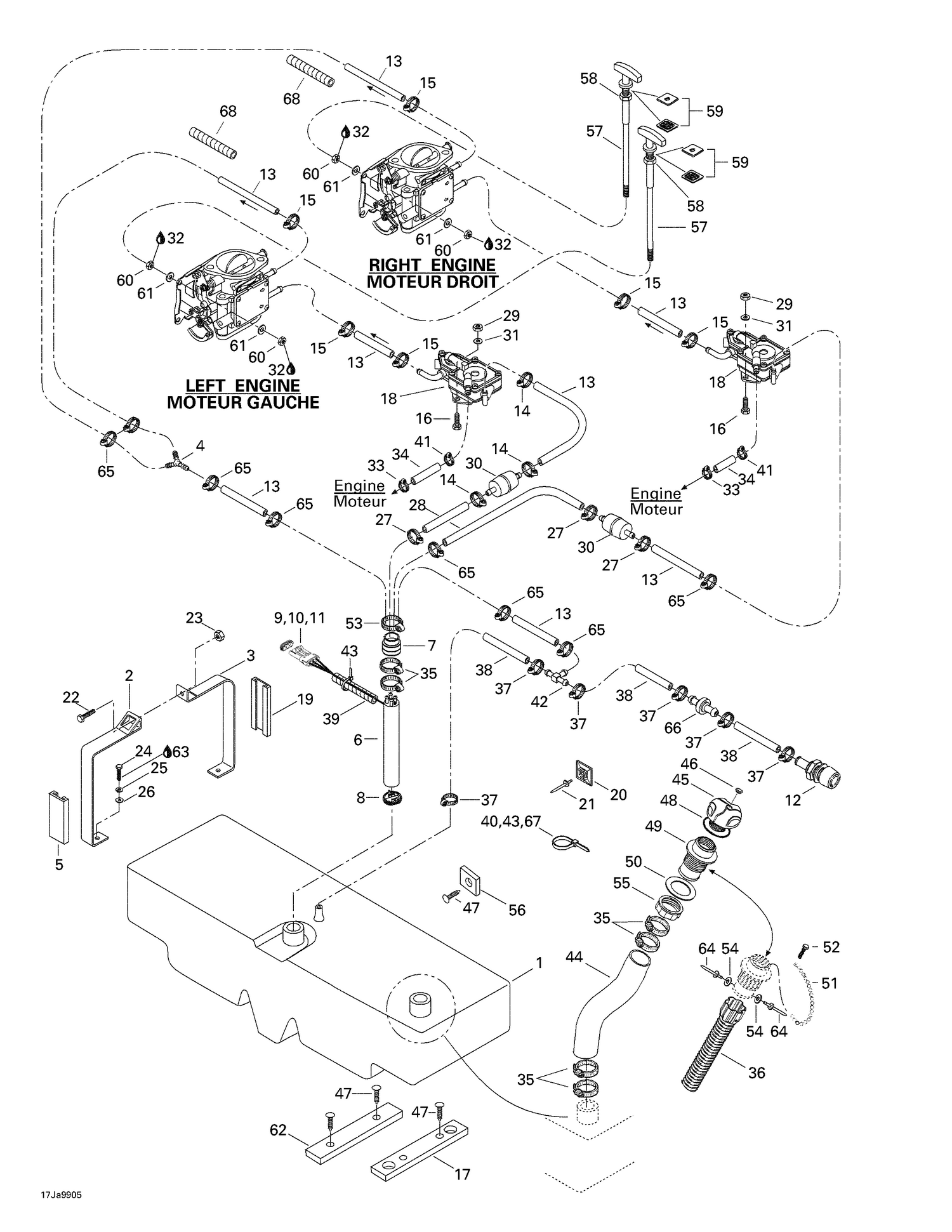

02- Fuel System
Parts (65)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 204560053 | Plastic Fuel Tank |
| 2 | 204560065 | Tank Bracket |
| 3 | 204560072 | Tank Bracket |
| 4 | 293710059 | Y-Fitting |
| 5 | 204560075 | Protector Strip |
| 7 | 204560066 | Fuel Tube Adaptor |
| 8 | 275500397 | FUEL FILTER - Call your local BRP dealership |
| 9 | 278000218 | Wire Seal |
| 10 | 278000223 | Female Terminal |
| 11 | 278000273 | Male Housing, 3 Circuits |
| 12 | 275500206 | VENT BOAT - Call your local BRP dealership |
| 13 | 204560099 | Hose 6 mm (Meter) |
| 14 | 293650088 | Norma Clamp |
| 15 | 293650070 | NORMA CLAMP - Call your local BRP dealership |
| 16 | 207162060 | Hex. Forming Screw M6 X 20 |
| 17 | 204060185 | Rubber Pad |
| 18 | 270500390 | Fuel Pump |
| 19 | 204560076 | Protector Strip |
| 20 | 293750015 | TIE RAP MOUNT - Call your local BRP dealership |
| 21 | 293150008 | Pop Rivet 3/16" |
| 22 | 207185560 | HEX. SCREW M8 X 55 - Call your local BRP dealership |
| 23 | 232581600 | Hex. Elastic Nut M8 |
| 24 | 207183060 | Hex. Screw M8 X 30 |
| 25 | 234181601 | Lock Washer 8 mm, Stainless |
| 26 | 234082600 | Flat Washer 8 mm, Stainless |
| 27 | 293650087 | NORMA CLAMP - Call your local BRP dealership |
| 28 | 204560070 | Hose 5/16" |
| 29 | 232561600 | Hex. Elastic Stop Nut M6 |
| 30 | 204560077 | FUEL FILTER - Call your local BRP dealership |
| 31 | 234061600 | Stainless Flat Washer M6 |
| 32 | Not | Available As Spare Part - Loctite 220 |
| 33 | 293650170 | Tridon Gear Clamp This part replaces 293650038. |
| 34 | 219704396 | HOSE-6MM. 5000MM LONG - Call your local BRP dealership |
| 35 | 293650081 | Norma Clamp |
| 36 | 275500757 | FILLER NECK, INTERIOR - Call your local BRP dealership This part replaces 275500067. |
| 37 | 293650069 | NORMA CLAMP - Call your local BRP dealership |
| 38 | 204560358 | HOSE 16 MM - Call your local BRP dealership This part replaces 275500205. |
| 39 | Not | Available As Spare Part - Slit Conduit |
| 40 | 293750002 | Tie Wrap 142 mm |
| 41 | 293650042 | Oetiker Clamp |
| 42 | 204560038 | T-Fitting |
| 43 | 414115200 | Tie-Rap 180 mm This part replaces 294000606. |
| 44 | 204560079 | Exterior Hose Filler Neck |
| 46 | 293000034 | Black, Snap Cap |
| 47 | 293730006 | Black, Dart |
| 48 | 293250017 | Gasket |
| 49 | 275500247 | Filler Neck |
| 50 | 293250029 | Gasket |
| 51 | 275500015 | Oil Cap Chain |
| 52 | 241140060 | Screw K40 X 10 |
| 53 | 293650077 | Norma Clamp This part replaces 293650078. |
| 54 | 234032600 | Flat Washer M3, Stainless |
| 55 | 211100012 | Filler Neck Nut, Fuel |
| 56 | 274000354 | Rubber Pad |
| 58 | 211100007 | Hex. Nut |
| 59 | 291000457 | Choke Plate |
| 60 | 232160600 | Hex. Nut M6 |
| 61 | 234061600 | Stainless Flat Washer M6 |
| 62 | 293830055 | Rubber Pad |
| 63 | 293800005 | Loctite 271, 10 ml |
| 64 | 293150057 | Rivet 1/8” |
| 65 | 293650088 | Norma Clamp |
| 66 | 204560101 | VENT FUEL SURGE PROTECTOR - Call your local BRP dealership |
| 67 | 293750008 | Tie Wrap 368 mm |
| 204250066 | LH | Choke Cable 204250066 |
