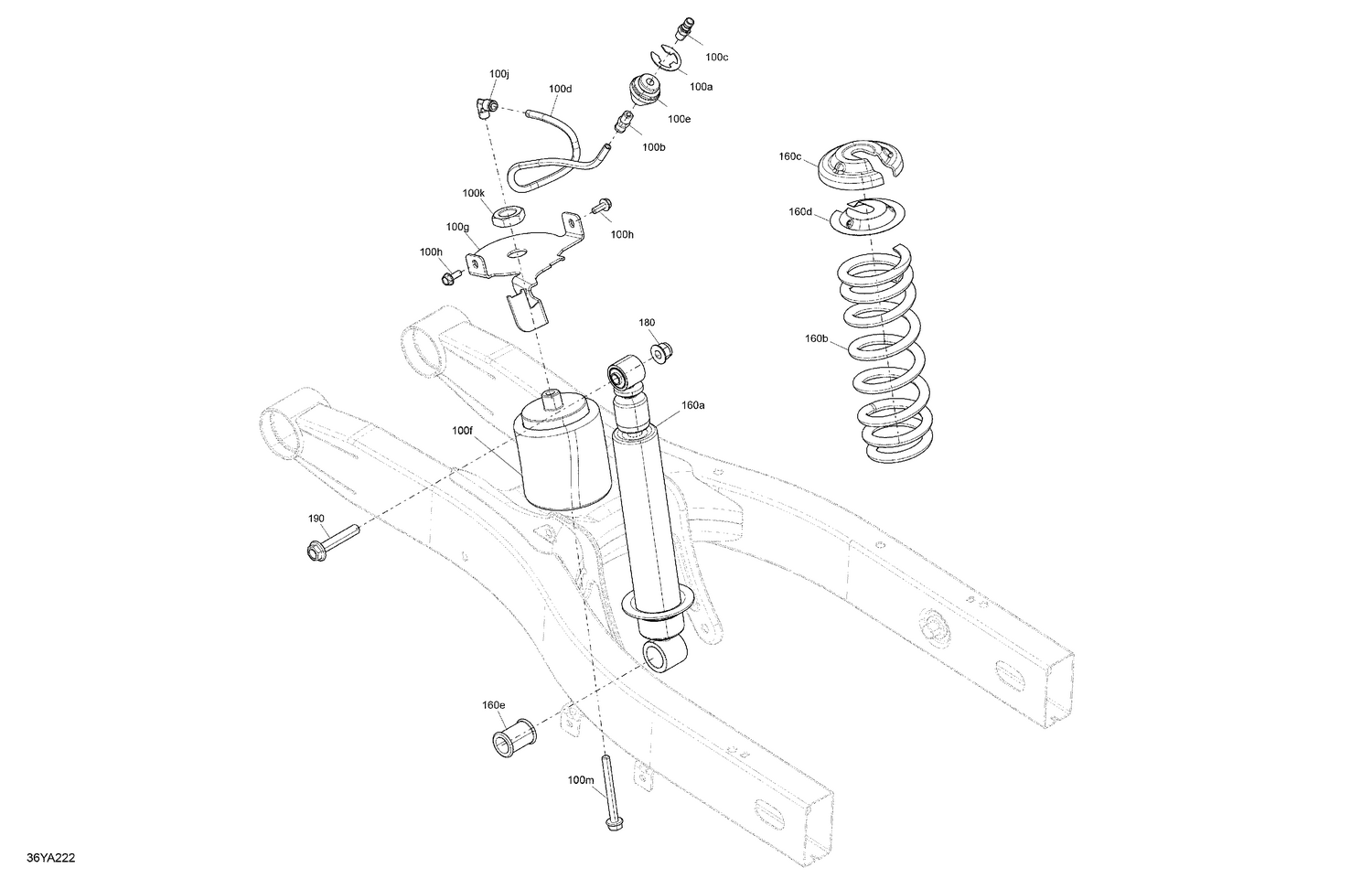

05- Suspension - Rear Shocks
Parts (17)
| Ref | Part Number | Description |
|---|---|---|
| 100a | 293370123 | Circlip |
| 100b | 706000869 | Connector |
| 100c | 706002797 | Air Valve |
| 100d | 706002679 | Hose |
| 100e | 706004028 | Pneumatic Connector |
| 100f | 219800175 | Air Damper Kit |
| 100g | 706002456 | Support Plate |
| 100h | 210261050 | Hex. Forming Screw M6 X 10 |
| 100j | 706001018 | Elbow 90° |
| 100k | 250100119 | Jam Nut M20 |
| 100m | 207687544 | Hex. Flange Screw M8 X 75 |
| 160a | 706001706 | Shock |
| 160b | 706001707 | Spring |
| 160c | 503193781 | Spring Stopper |
| 160d | 503193782 | Cap |
| 160e | 503191609 | Urethane Cushion |
| 180 | 233201464 | Hex. Flange Elastic M10 x 1.5 |
