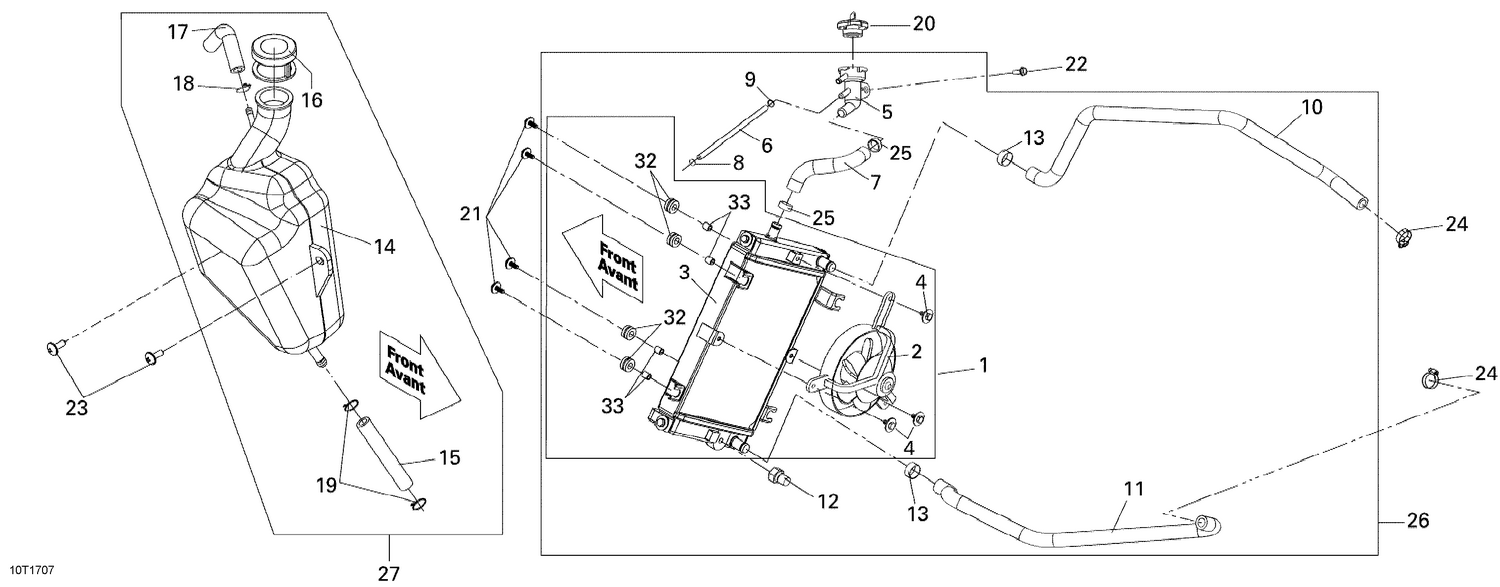

01- Cooling System
Parts (28)
| Ref | Part Number | Description |
|---|---|---|
| 1 | NASP/NDPR | Not Available As Spare Parts |
| 2 | S19005RB1000 | Fan Ass'y |
| 3 | S19010RCA000 | Radiator |
| 4 | S958010601208 | Flanged Bolt M6 X 12 |
| 5 | S19039H9A000 | Filler Neck Ass'y |
| 6 | S19124RB1000 | Hose |
| 7 | S19125RB1000 | Hose |
| 8 | S950024073008 | Spring Clamp, Universal |
| 9 | S950024085008 | Spring Clamp, Universal |
| 10 | S19121RB1000 | Radiator Inlet Hose |
| 11 | S19123RCA000 | Radiator Outlet Hose |
| 12 | S37760RCA000 | Thermostatic Switch |
| 13 | S19505KS6700 | Clamp |
| 14 | NASP/NDPR | Not Available As Spare Parts |
| 15 | NASP/NDPR | Not Available As Spare Parts |
| 16 | S19104MB0700 | RADIATOR PRESSURE CAP - Call your local BRP dealership |
| 17 | NASP/NDPR | Not Available As Spare Parts |
| 18 | NASP/NDPR | Not Available As Spare Parts |
| 19 | NASP/NDPR | Not Available As Spare Parts |
| 20 | S19111H9A000 | Radiator Cap Ass'y |
| 21 | S934040602007 | Washer Bolt |
| 22 | S958010601607 | Flanged Bolt M6 X 16 |
| 23 | S90119HMA000 | Washer Screw 5 X 18 |
| 24 | S19505KS6700 | Clamp |
| 25 | S90682SB0671 | Hose Clamp |
| 26 | NASP/NDPR | Not Available As Spare Parts |
| 27 | S1910ARCA000 | Reserve Tank Ass'y |
| 32 | S19011RCA000 | Rubber Washer |
