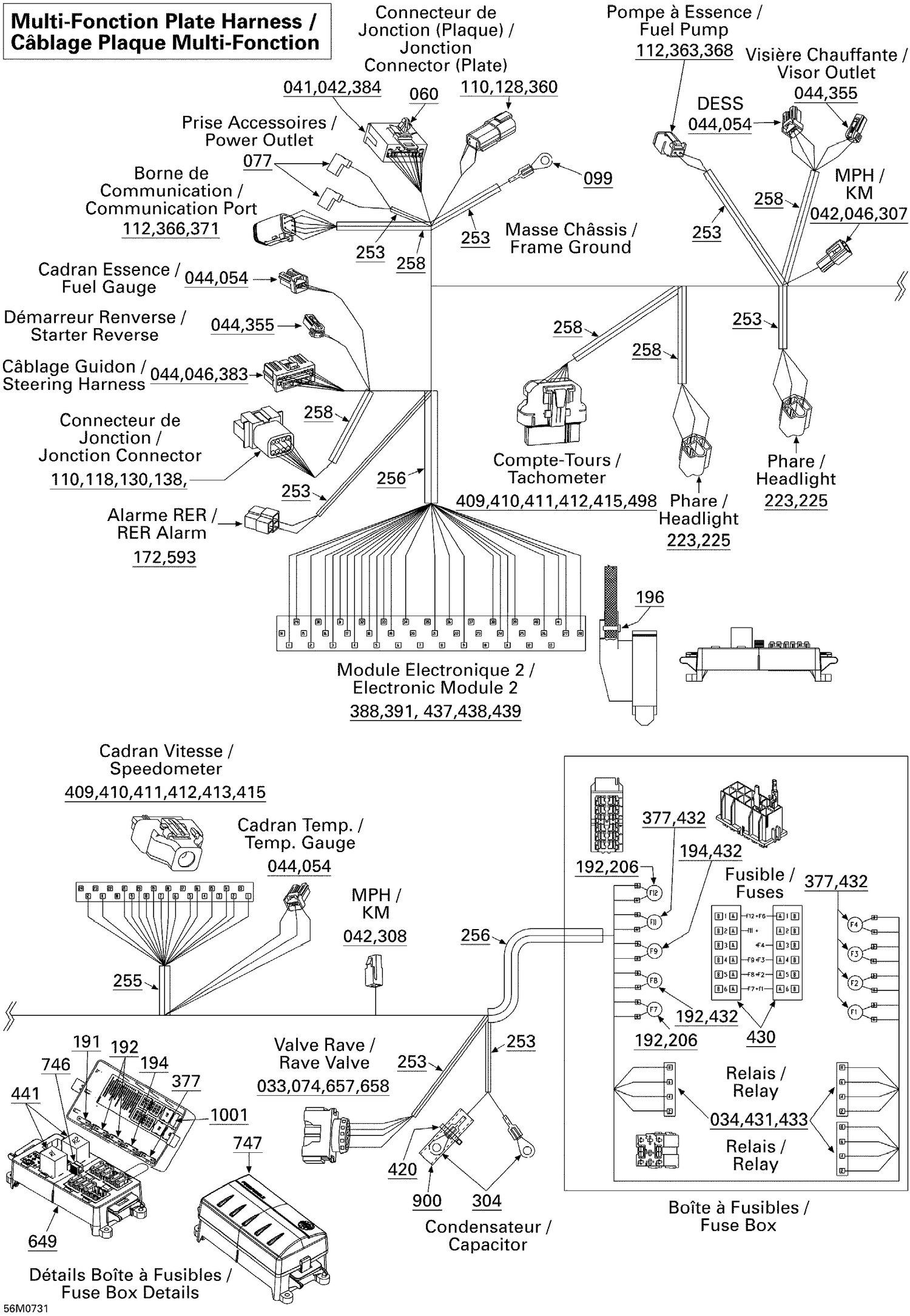

| Ref | Part Number | Description |
|---|
| 33 |
278000999 |
Wire Seal |
| 34 |
409010100 |
Female Terminal |
| 41 |
515175232 |
Male Terminal |
| 42 |
515175273 |
MALE TERMINAL - Call your local BRP dealership |
| 44 |
515175231 |
Female Terminal |
| 46 |
515175282 |
Female Terminal |
| 54 |
515175495 |
Female Housing, 3 Circuits |
| 60 |
515175283 |
Housing Support |
| 74 |
409013700 |
Plug |
| 77 |
409010300 |
Female Terminal |
| 99 |
278000992 |
Open Barrel |
| 110 |
278000631 |
Male Terminal |
| 112 |
278000632 |
Female Terminal |
| 118 |
278001742 |
CONNECTOR 6 CAVITIES - Call your local BRP dealership |
| 128 |
278000636 |
Female Wedge, 4 Circuits |
| 130 |
515175276 |
LOCK MALE, 8 CIRCUITS - Call your local BRP dealership |
| 138 |
293000052 |
Sealing Cap |
| 172 |
561503100 |
FEMALE TERMINAL - Call your local BRP dealership |
| 191 |
410917200 |
Fuse, 30 Amperes |
| 192 |
409003900 |
Fuse, 20 Amperes |
| 194 |
278001197 |
Fuse, 10 Amperes |
| 196 |
293750002 |
Tie Wrap 142 mm |
| 206 |
409004200 |
Female Terminal |
| 223 |
515175320 |
FEMALE TERMINAL - Call your local BRP dealership |
| 225 |
409202700 |
FEMALE TERMINAL HOUSING, 3 CIRCUITS - Call your local BRP dealership |
| 253 |
219704425 |
Tubing 6 Mm 3000Mm Long |
| 255 |
219704400 |
Was 409901800 Tubing (13 mm) |
| 256 |
219704408 |
Tubing 16 Mm 1000Mm Long |
| 258 |
219704407 |
Tubing 10 MM 1000MM Long |
| 304 |
515175504 |
Ring Terminal |
| 307 |
515175509 |
MALE TERMINAL HOUSING, 1 CIRCUIT - Call your local BRP dealership |
| 308 |
515175510 |
FEMALE TERMINAL HOUSING, 1 CIRCUIT - Call your local BRP dealership |
| 355 |
515175658 |
Female Housing, 2 Circuits |
| 363 |
515175670 |
Female Terminal Housing, 2 Circuits |
| 366 |
515175673 |
Male Housing, 6 Circuits |
| 368 |
515175675 |
Female Lock, 2 Circuits |
| 371 |
515175678 |
Male Wedge, 6 Circuits |
| 377 |
278000344 |
Fuse, 5 Amperes |
| 383 |
515175719 |
FEMALE TERMINAL HOUSING, 11 CIRCUITS - Call your local BRP dealership |
| 384 |
515175720 |
MALE TERMINAL HOUSING, 11 CIRCUITS - Call your local BRP dealership |
| 388 |
278001750 |
FEMALE TERMINAL - Call your local BRP dealership |
| 391 |
278001751 |
MALE HOUSING, 41 CIRCUITS - Call your local BRP dealership |
| 409 |
515175812 |
Plug |
| 410 |
515175801 |
Female Housing, 24 Circuits |
| 411 |
515175802 |
Retainer Block |
| 412 |
515175803 |
Wire Seal |
| 413 |
515175804 |
BLOCK - Call your local BRP dealership |
| 415 |
515175806 |
Female Terminal |
| 420 |
414115200 |
Tie-Rap 180 mm |
| 430 |
515175857 |
FUSE HOLDER - Call your local BRP dealership |
| 431 |
515175856 |
RELAY HOLDER - Call your local BRP dealership |
| 432 |
515175855 |
FEMALE TERMINAL - Call your local BRP dealership |
| 433 |
515175854 |
FEMALE TERMINAL - Call your local BRP dealership |
| 437 |
515175886 |
SEAL - Call your local BRP dealership |
| 438 |
515175883 |
Latch |
| 439 |
515175884 |
LOCK - Call your local BRP dealership |
| 441 |
515177672 |
Relais *Relay This part replaces 410113604. |
| 498 |
710000399 |
Female Housing |
| 593 |
515176069 |
MALE TERMINAL HOUSING, 3 CIRCUITS - Call your local BRP dealership |
| 649 |
515176065 |
FUSE BOX BASE - Call your local BRP dealership |
| 657 |
515176238 |
Male Housing, 5 Circuits |
| 658 |
515176239 |
FEMALE TERMINAL - Call your local BRP dealership |
| 746 |
515175811 |
FUSE TOOL - Call your local BRP dealership |
| 747 |
515176066 |
COVER - Call your local BRP dealership |
| 900 |
415079200 |
Hose |
