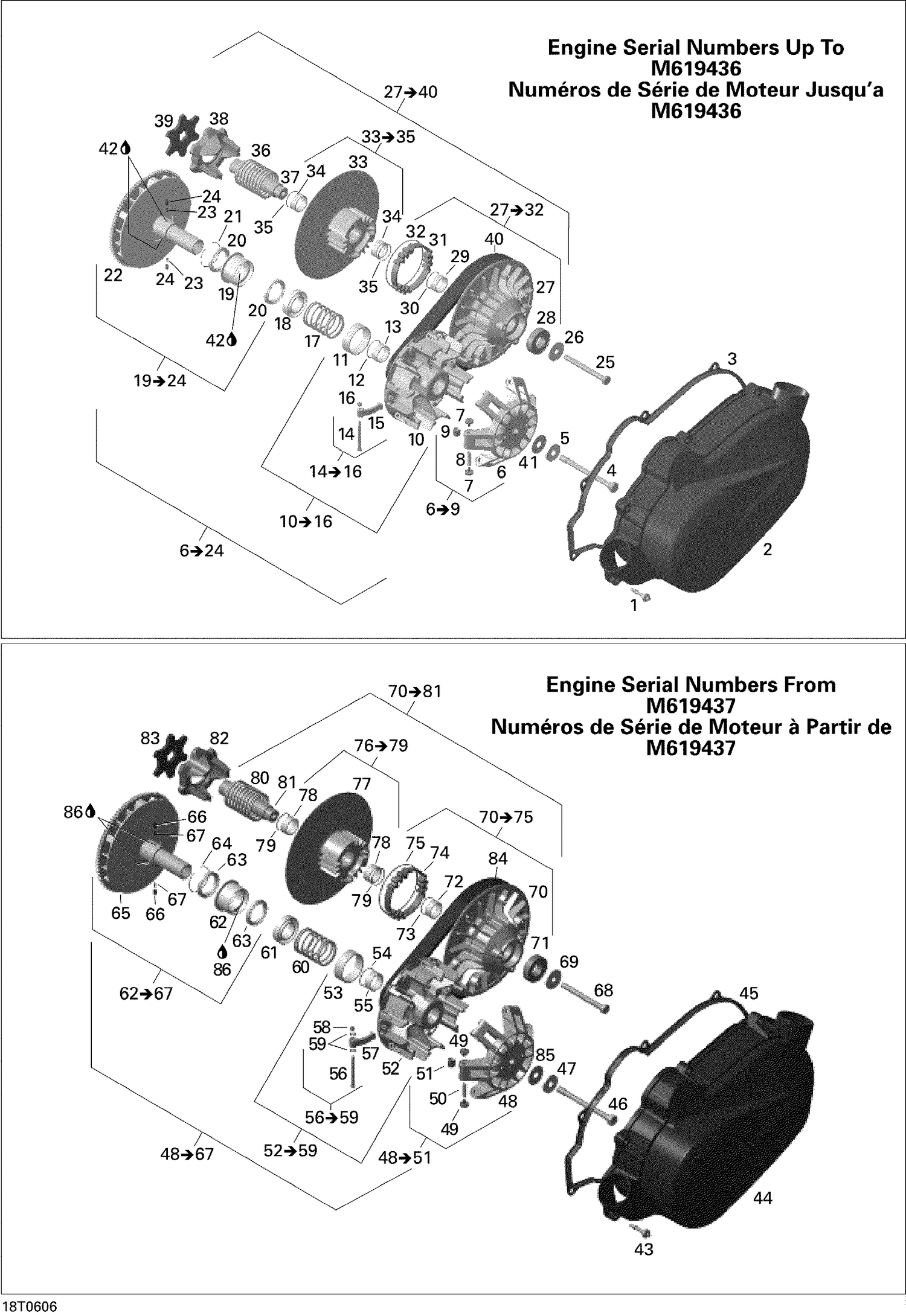

05- Transmission

05- Transmission

Parts (84)

RefPart NumberDescription
1 420440568 Hex Screw M6 X 30 This part replaces 420440307.
2 420610421 CVT COVER - Call your local BRP dealership
3 420630290 CVT Cover Gasket
4 420641812 Hex. Screw M12 X 140
5 420627760 Spring Washer
6 Not Available As Spare Part - Governor Cup
7 420281296 Slider Shoe Set This part replaces 420281290.
8 417223257 Roller Axle This part replaces 420233890.
9 417223767 Roller This part replaces 420229585.
10 Not Available As Spare Part - Outer Half
11 Not Available As Spare Part - Bushing
12 Not Available As Spare Part - Retaining Ring
13 Not Available As Spare Part - Bushing
14 Not Available As Spare Part - Bearing Screw M5
15 Not Available As Spare Part - Lever
16 Not Available As Spare Part - Lock Nut M5
17 420238166 Compression Spring This part replaces 420238161.
18 420627578 Seat Spring This part replaces 420627574.
19 420257439 Clutch This part replaces 420257437.
20 420632377 Ball Bearing This part replaces 420632371.
21 420245951 Retaining Ring This part replaces 420245950.
22 Not Available As Spare Part - Inner Half Ass'y
23 420229577 Spring Sleeve This part replaces 420229576.
24 420239135 Compression Spring This part replaces 420239132.
25 420441485 Hex. Screw M10 X 110 This part replaces 420941906.
26 420627594 Thrust Washer This part replaces 420627590.
27 Not Available As Spare Part - Outer Half
28 420932421 Ball Bearing This part replaces 420932426.
29 Not Available As Spare Part - Bushing
30 Not Available As Spare Part - Retaining Ring
31 420660120 TORQUE GEAR - Call your local BRP dealership
32 420245911 Retaining Ring This part replaces 420245910.
33 Not Available As Spare Part - Inner Half
34 Not Available As Spare Part - Bushing
35 Not Available As Spare Part - Retaining Ring
36 420238340 COMPRESSION SPRING - Call your local BRP dealership
37 420220913 Driven Pulley Shaft This part replaces 420220911.
38 420280250 Cam
39 420627586 Cam Plate This part replaces 420627582.
40 422280283 Drive Belt This part replaces 715900024.
41 420627920 Thrust Washer
42 293550021 Isoflex Grease, TOPAS NB52, 50 g
43 420440568 Hex Screw M6 X 30 This part replaces 420440567.
44 420610421 CVT COVER - Call your local BRP dealership
45 420630290 CVT Cover Gasket
46 420641812 Hex. Screw M12 X 140
47 420627760 Spring Washer
48 Not Available As Spare Part - Governor Cup
49 420281296 Slider Shoe Set This part replaces 420281290.
50 417223257 Roller Axle This part replaces 420233890.
51 417223767 Roller This part replaces 420229585.
52 Not Available As Spare Part - Outer Half
53 Not Available As Spare Part - Bushing
54 Not Available As Spare Part - Retaining Ring
55 Not Available As Spare Part - Bushing
56 Not Available As Spare Part - Bearing Screw M5
57 Not Available As Spare Part - Lever
58 Not Available As Spare Part - Lock Nut M5
59 Not Available As Spare Part - Thrust Washer
60 420238166 Compression Spring This part replaces 420238161.
61 420627578 Seat Spring This part replaces 420627574.
62 420257439 Clutch This part replaces 420257437.
63 420632377 Ball Bearing This part replaces 420632371.
64 420245951 Retaining Ring This part replaces 420245950.
65 Not Available As Spare Part - Inner Half Ass'y
66 420229577 Spring Sleeve This part replaces 420229576.
67 420239135 Compression Spring This part replaces 420239132.
68 420441485 Hex. Screw M10 X 110 This part replaces 420941906.
69 420627594 Thrust Washer This part replaces 420627590.
70 Not Available As Spare Part - Outer Half
71 420932421 Ball Bearing This part replaces 420932426.
72 Not Available As Spare Part - Bushing
73 Not Available As Spare Part - Retaining Ring
74 420660124 Torque Gear This part replaces 420660121.
75 420245911 Retaining Ring This part replaces 420245910.
77 Not Available As Spare Part - Inner Half
78 Not Available As Spare Part - Bushing
79 Not Available As Spare Part - Retaining Ring
80 420238340 COMPRESSION SPRING - Call your local BRP dealership
81 420220913 Driven Pulley Shaft This part replaces 420220911.
82 420280250 Cam
83 420627586 Cam Plate This part replaces 420627582.
84 422280283 Drive Belt This part replaces 715900024.
85 420627920 Thrust Washer
