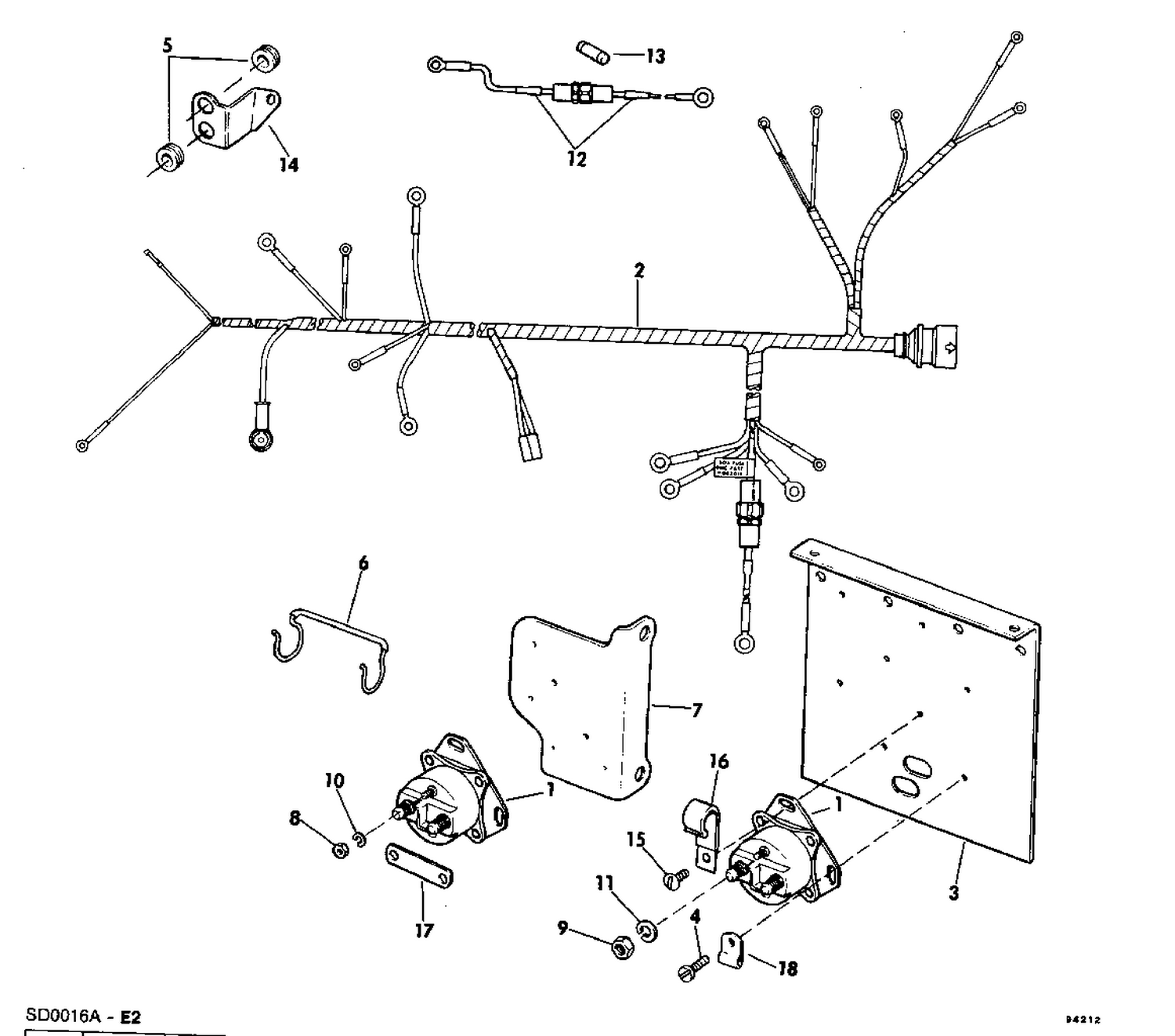

SOLENOIDS & CABLE ASSEMBLY GROUP
Parts (10)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 0985063 | SOLENOID This part replaces 0982187. |
| 2 | 0982025 | CABLE ASSEMBLY |
| 3 | 0909451 | BRACKET |
| 5 | 0909988 | BUSHING, Tilt & trim cable |
| 7 | 0910554 | BRACKET, Solenoid to engine This part replaces 0909448. |
| 12 | 0983321 | FUSEHOLDER ASSY, Trim & tilt This part replaces 0982024. |
| 14 | 0910206 | BRACKET, Fuse holder |
| 15 | 0317753 | SCREW |
| 16 | 0330151 | CLAMP, Harness to oil tank boss This part replaces 0309846. |
| 17 | 0909450 | BUS BAR |
