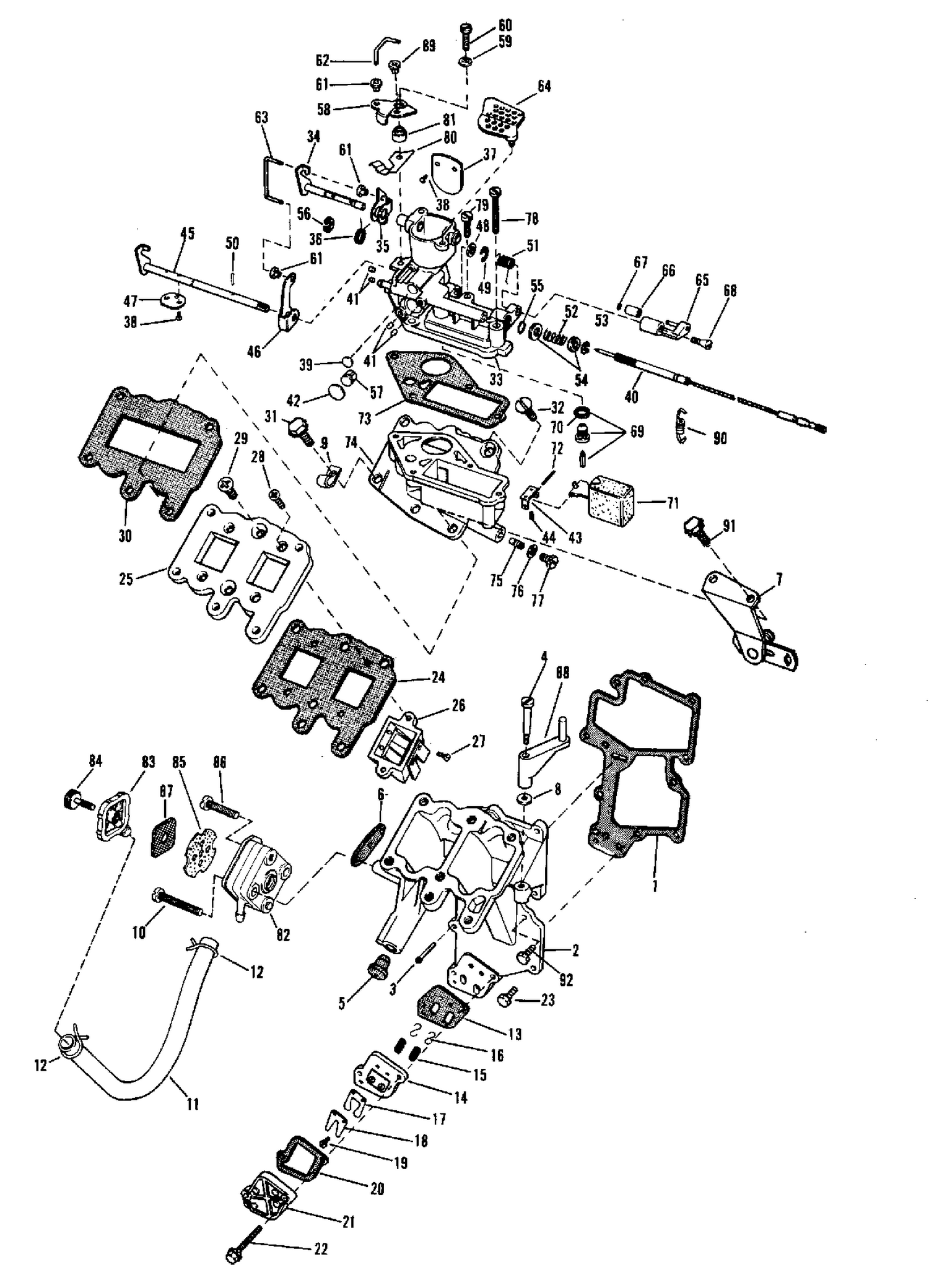

| Ref | Part Number | Description |
|---|
| 1 |
0314172 |
GASKET, Manifold to cylinder |
| 2 |
0383805 |
INTAKE MANIFOLD & NIPPLE ASSEMBLY |
| 4 |
0309720 |
SCREW, Cam follower |
| 5 |
0309767 |
BUMPER, Cover |
| 6 |
0303615 |
GASKET |
| 7 |
0381826 |
VIBRATION DAMPENER ASSEMBLY, Stbd |
| 8 |
0328737 |
RONDELLE, levier de sens de marche et manette des gaz This part replaces 0306015. |
| 9 |
0304790 |
CLAMP, H t leads |
| 10 |
0309654 |
SCREW |
| 11 |
0203730 |
HOSE, Fuel pump to carburetor |
| 12 |
0302647 |
CLAMP |
| 13 |
0309427 |
GAKSET, Drain valve |
| 14 |
0379093 |
DRAIN PLATE & SCREEN ASSEMBLY |
| 15 |
0310628 |
SCREEEN |
| 16 |
0310629 |
SPRING |
| 17 |
0302031 |
LEAF PLATE |
| 18 |
0304655 |
PLATE |
| 19 |
0303761 |
SCREW |
| 21 |
0302033 |
COVER |
| 22 |
0309746 |
SCREW, Cover to manifold |
| 23 |
0311750 |
SCREW, Cover 11/16" long |
| 24 |
0309657 |
GASKET, Base to mfld |
| 25 |
0309659 |
BASE, Leaf plate |
| 26 |
0379689 |
LEAF BLOCK ASSEMBLY |
| 27 |
0303761 |
SCREW |
| 28 |
0307609 |
SCREW |
| 29 |
0310748 |
SCREW, Leaf plate to manif. |
| 30 |
0309658 |
GASKET, Carb. mtg |
| 31 |
0303288 |
SCREW, Carb to manifold |
| 32 |
0309701 |
SCREW, Carb to manifold |
| 33 |
0381840 |
BODY ASSY |
| 34 |
0379152 |
CHOKE SHAFT ASSY |
| 35 |
0309632 |
ARM, Choke |
| 36 |
0309699 |
SPRING, Choke return |
| 37 |
0309677 |
CHOKE VALVE |
| 39 |
0550078 |
CORE PLUG |
| 40 |
0384107 |
NEEDLE VALVE This part replaces 0383500. |
| 43 |
0305223 |
HINGE |
| 44 |
0309650 |
DRIVE SCREW, Hinge |
| 45 |
0379153 |
SHAFT & LEVER, Throttle |
| 46 |
0309647 |
ARM, Throttle |
| 47 |
0312908 |
THROTTLE VALVE |
| 50 |
0305249 |
ROLL PIN, Shaft |
| 51 |
0309782 |
SPRING, Throtlle return |
| 52 |
0302993 |
SPRING |
| 53 |
0312382 |
E-RING |
| 54 |
0300399 |
WASHER |
| 57 |
0312909 |
FILLER PLUG |
| 58 |
0312145 |
BELLCRANK, Choke detent |
| 61 |
0204708 |
RETAINER |
| 62 |
0309627 |
LINK, Choke to bellcrank |
| 63 |
0309656 |
LINK, Choke to throttle |
| 64 |
0309786 |
SCREEN, Carburetor intake |
| 65 |
0379195 |
LEVER & PIN |
| 66 |
0305232 |
ROLLER, Cam foller |
| 67 |
0307529 |
JOINT TORIQUE, galet vers contre-came |
| 68 |
0551517 |
SCREW |
| 71 |
0379154 |
FLOAT & ARM ASSEMBLY |
| 72 |
0312481 |
HINGE PIN, Float |
| 73 |
0309741 |
GASKET, Body to chamber |
| 74 |
0309726 |
FLOAT CHAMBER |
| 77 |
0307832 |
PLUG, Screw |
| 78 |
0309654 |
SCREW |
| 79 |
0309652 |
SCREW, Short |
| 80 |
0309678 |
SPRING, Choke detent |
| 81 |
0309672 |
SPACER, Bellcrank |
| 82 |
0388833 |
FUEL PUMP ASSY. This part replaces 0382224. |
| 86 |
0310302 |
SCREW PUMP ASSY |
| 88 |
0310001 |
CAM FOLLOWER |
| 89 |
0313329 |
LOCKWASHER, Carburetor link |
| 91 |
0312902 |
SCREW, Dampener to carb |
| 0383501 |
0383501 |
CARBURETOR ASSEMBLY COMPLETE |
