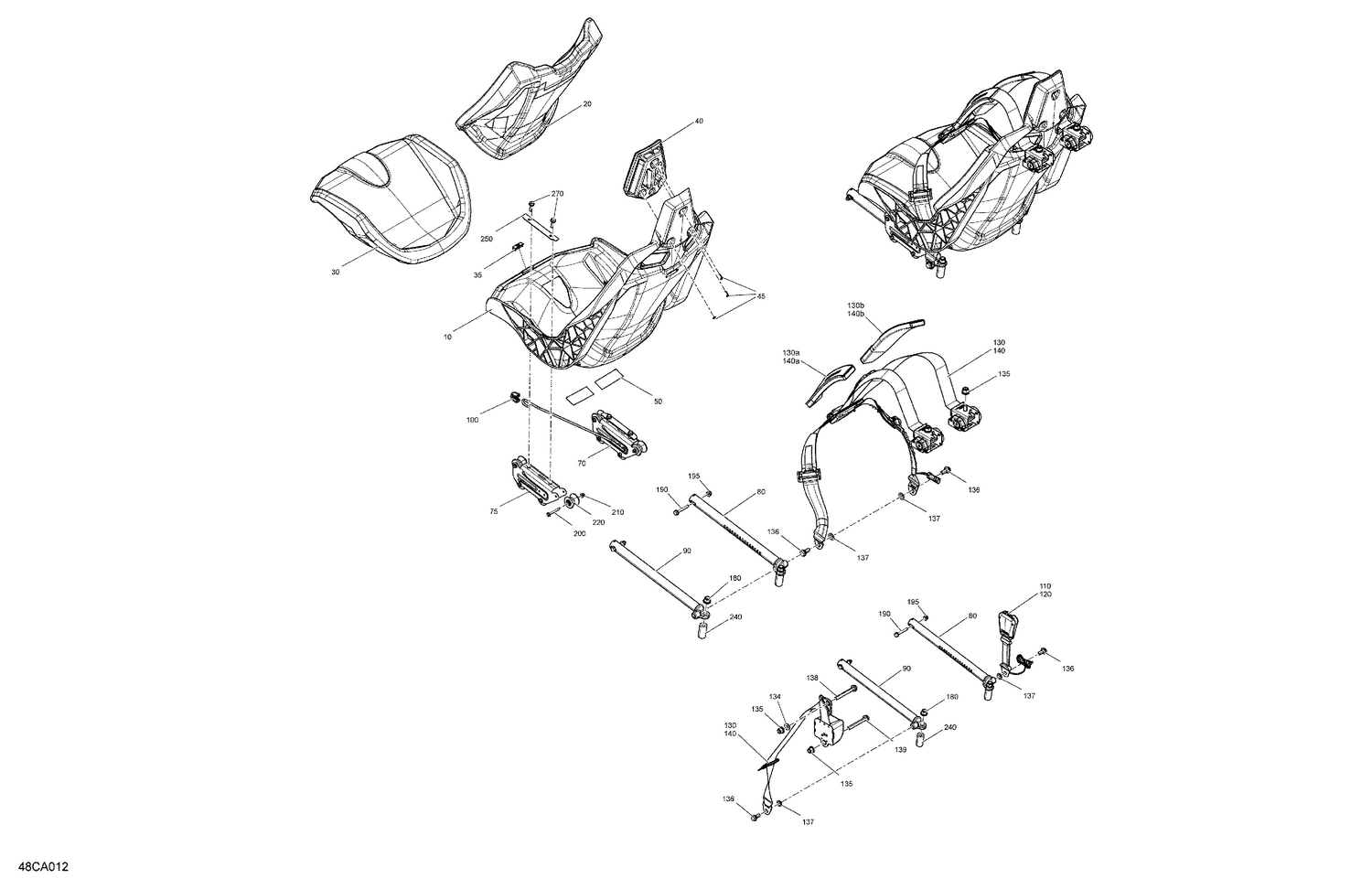

07- Body - Seat
Parts (20)
| Ref | Part Number | Description |
|---|---|---|
| 35 | 708002670 | Stopper |
| 40 | 708002131 | Headrest |
| 45 | 250000760 | Torx Screw Truss Head K50X20 T20 |
| 50 | 708002535 | Velcro Tape |
| 70 | 703500997 | Adjustable Trolley Kit |
| 75 | 708002298 | Trolley |
| 80 | 708003061 | Seat Rail |
| 90 | 708003064 | Seat Rail |
| 100 | 708002655 | Adjustment Handle |
| 135 | 233221416 | Elastic Flange Nut M12 |
| 136 | 708002504 | Safety Belt screw |
| 137 | 708000891 | Position Washer |
| 180 | 233221416 | Elastic Flange Nut M12 |
| 190 | 207685554 | Hex. Flange Screw M8 X 55 |
| 195 | 233281464 | Elastic Flange Nut M8 |
| 200 | 207665054 | Hex. Flange Screw M6 X 50 |
| 210 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 220 | 708002134 | Wheel |
| 240 | 708002299 | Rear Bushing |
| 250 | 708003680 | Plate This part replaces 708002480. |
