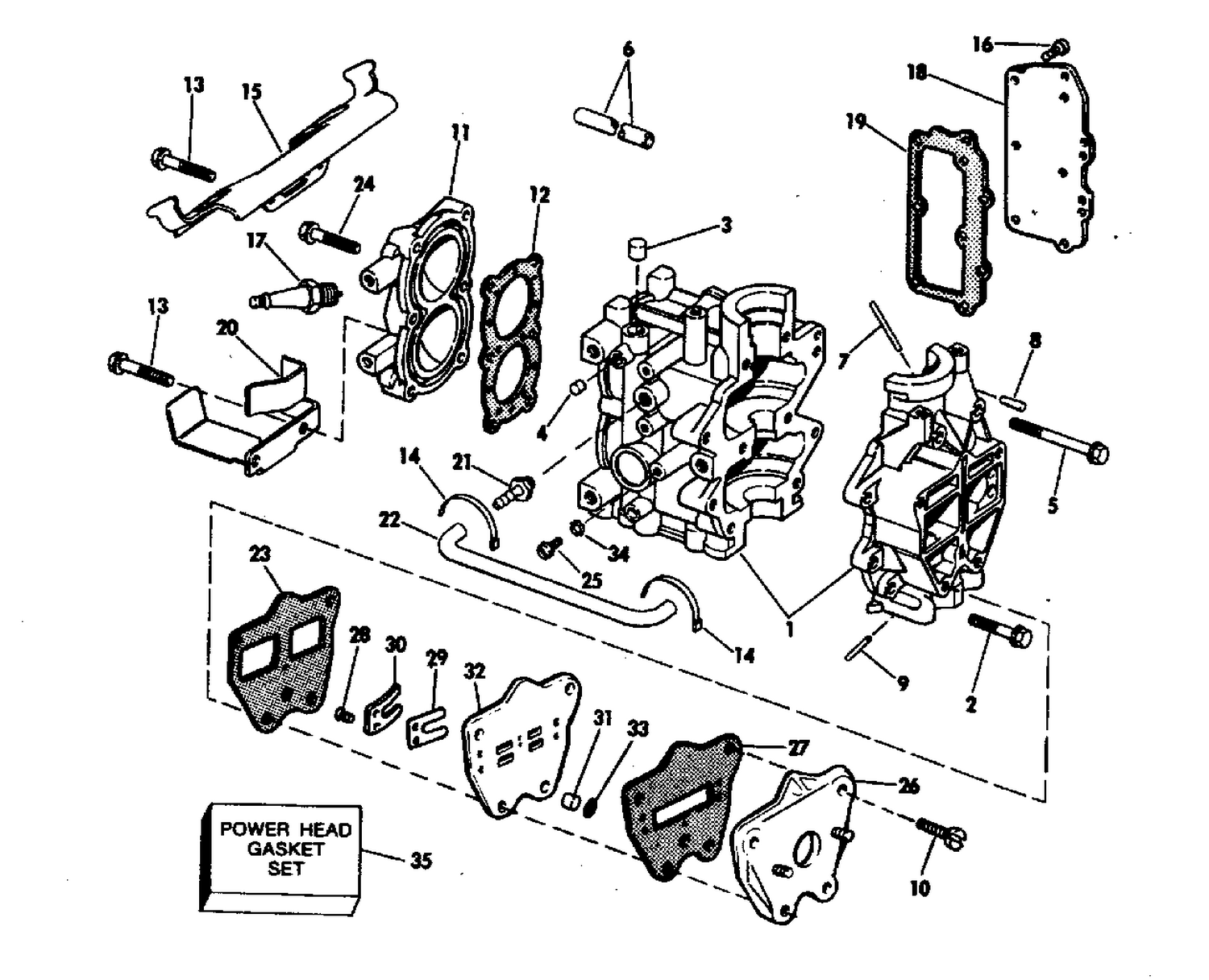

| Ref | Part Number | Description |
|---|
| 1 |
0389682 |
CYLINDER & C'CASE ASSY. |
| 2 |
0314951 |
SCREEN, Mfld. to c'case |
| 5 |
0322831 |
SCREW |
| 7 |
0328158 |
TUBE, Crankcase drain |
| 9 |
0328159 |
TUBE, Crankcase drain |
| 10 |
0314951 |
SCREEN, Mfld. to c'case |
| 11 |
0398131 |
CYLINDER HEAD This part replaces 0391309. |
| 12 |
0332010 |
GASKET, Cylinder head This part replaces 0326953. |
| 13 |
0307471 |
SCREW |
| 14 |
0320107 |
ATTACHE-CÂBLE, connecteur capteur de position de vilebrequin vers clapet |
| 15 |
0324570 |
MOUNTING BRACKET, Fuel tank, upper |
| 17 |
0386939 |
PARK PLUG,AC M40FFX |
| 17 |
0386941 |
SPARK PLUB,Champion L77J4 |
| 17 |
0502180 |
SPARK PLUG, Champion QL77JC4 This part replaces 0387633. |
| 18 |
0323263 |
PLATE, EXH COVER |
| 19 |
0323445 |
GASKET, Cover plate |
| 20 |
0324571 |
MOUNTING BRACKET, Fuel tank, lower |
| 21 |
0326544 |
NIPPLE, Pulse |
| 22 |
0331526 |
HOSE, Manifold to #1 carb. This part replaces 0325881. |
| 23 |
0323446 |
GASKET, Plate c'case |
| 24 |
0314951 |
SCREEN, Mfld. to c'case |
| 26 |
0388941 |
MANIFOLD, Intake |
| 27 |
0323444 |
GASKET, Leaf plate to manifold |
| 0388653 |
0388653 |
LEAD PLATE ASSY |
