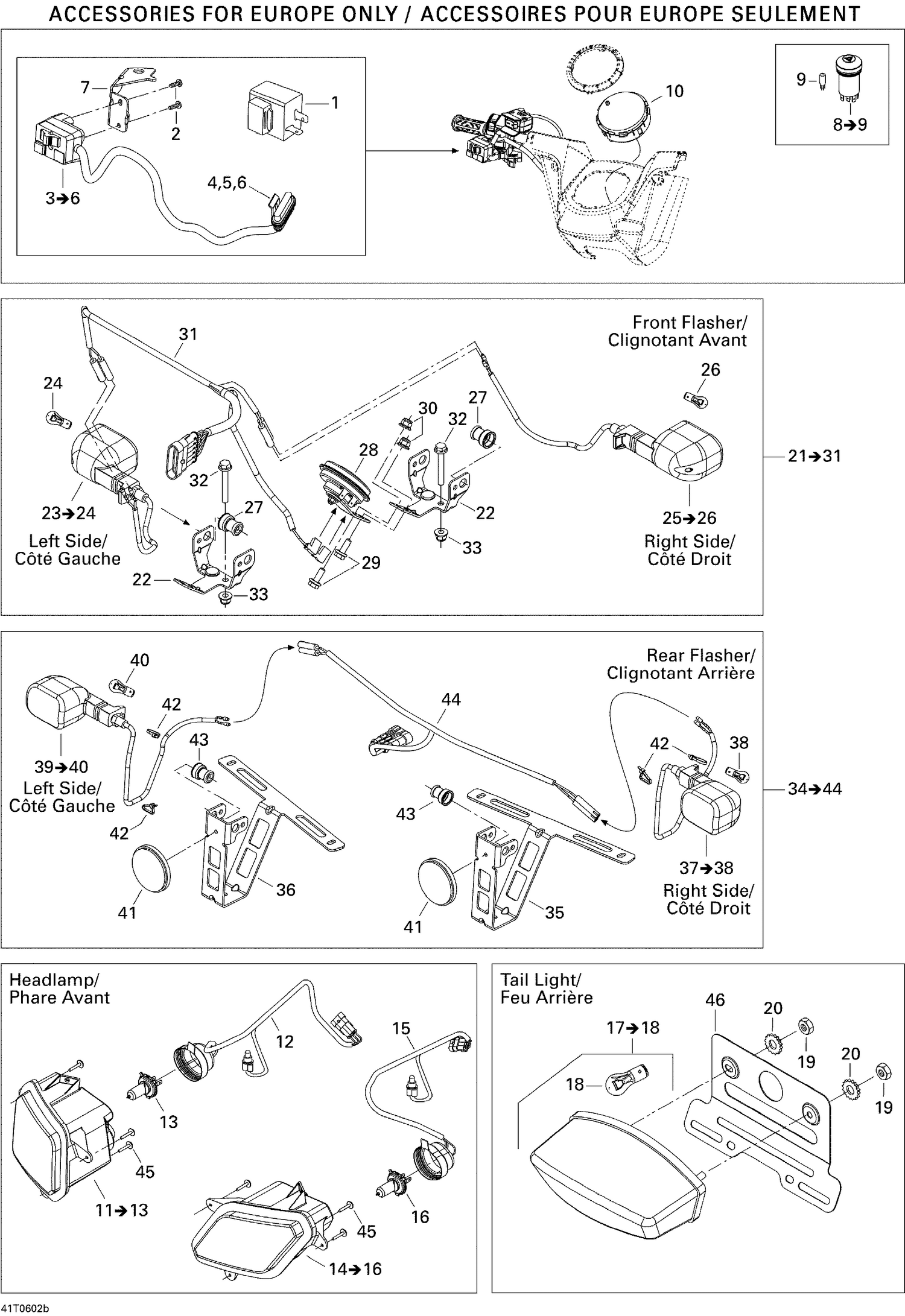

| Ref | Part Number | Description |
|---|
| 1 |
710000581 |
FLASHER UNIT - Call your local BRP dealership |
| 2 |
250000078 |
PHILLIPS SCREW M4 X 8 - Call your local BRP dealership |
| 4 |
710000780 |
Connector |
| 5 |
278001014 |
Female Terminal |
| 6 |
278001013 |
Wire Seal |
| 7 |
710000905 |
Switch Support |
| 9 |
710000661 |
EMERGENCY SWITCH LIGHT BULB - Call your local BRP dealership |
| 10 |
710000920 |
Calibrated Speedometer |
| 12 |
710000923 |
Headlamp Harness |
| 13 |
710000871 |
Bulb, 12V 35/35W |
| 15 |
710000923 |
Headlamp Harness |
| 16 |
710000871 |
Bulb, 12V 35/35W |
| 18 |
520000758 |
Bulb This part replaces 410504100. |
| 19 |
232061600 |
Hex. Nut M6 |
| 20 |
234461608 |
External Serrated Lock Washer 6 mm |
| 22 |
710000893 |
Bracket |
| 24 |
Not |
Available As Spare Part - Flasher Bulb |
| 26 |
Not |
Available As Spare Part - Flasher Bulb |
| 27 |
710001826 |
CAP GUARD - Call your local BRP dealership This part replaces 710000765. |
| 28 |
710000783 |
Horn |
| 29 |
207661644 |
Hex. Flange Screw M6 X 16 |
| 30 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 |
| 31 |
710000814 |
Front Fender Harness |
| 32 |
207664544 |
Hex. Flange Screw M6 X 45 |
| 33 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 |
| 35 |
710000865 |
RH FLASHER SUPPORT BRACKET - Call your local BRP dealership |
| 36 |
710000867 |
LH Flasher Support Bracket |
| 38 |
Not |
Available As Spare Part - Flasher Bulb |
| 40 |
Not |
Available As Spare Part - Flasher Bulb |
| 41 |
710000775 |
REFLECTOR - Call your local BRP dealership |
| 42 |
293750001 |
Tie Wrap 94 mm |
| 43 |
710001826 |
CAP GUARD - Call your local BRP dealership This part replaces 710000765. |
| 44 |
710000931 |
Rear Fender Harness |
| 45 |
250000101 |
Plastite Screw Type K-40, M4 X 25 |
