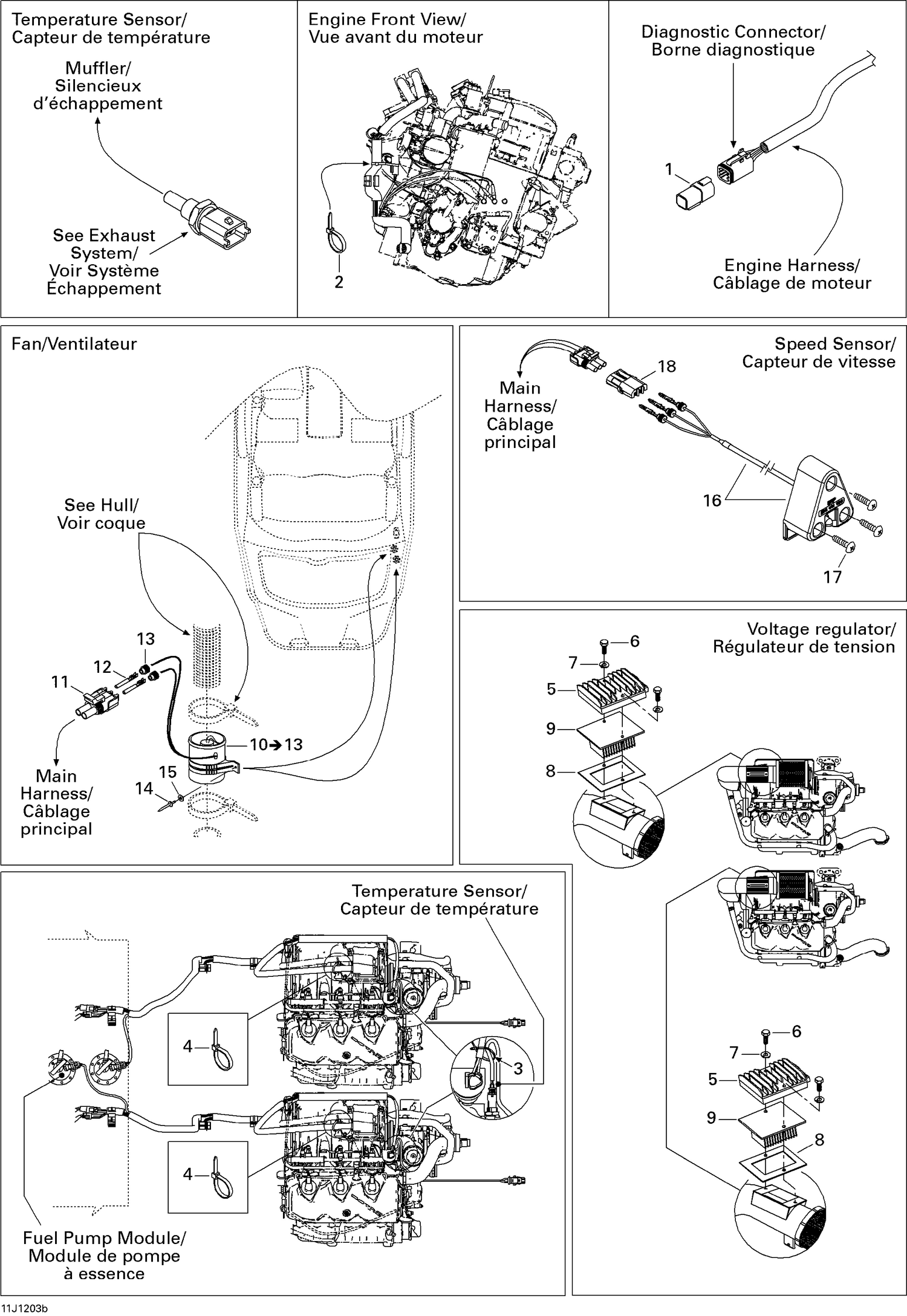

10- Electrical Accessories 2
Parts (16)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 278002704 | Diagnostic Connector This part replaces 278002148. |
| 2 | 414115200 | Tie-Rap 180 mm |
| 3 | 293750002 | Tie Wrap 142 mm |
| 4 | 293750002 | Tie Wrap 142 mm |
| 5 | 710001103 | Voltage Regulator |
| 6 | 204100226 | HEX. SCREW 1/4-20 X 1 - Call your local BRP dealership |
| 7 | 211200025 | Lock Washer 1/4” |
| 8 | 204471293 | SEAL - Call your local BRP dealership |
| 9 | 204471296 | RECTIFIER HEAT SINK - Call your local BRP dealership |
| 11 | 278000220 | Male Connector, 2 Circuits |
| 12 | 278000223 | Female Terminal |
| 13 | 278000218 | Wire Seal |
| 14 | 293150008 | Pop Rivet 3/16" This part replaces 293150011. |
| 15 | 234052600 | Flat Washer 5 mm, Stainless |
| 16 | 278001993 | Speed Sensor |
| 17 | 211000021 | PHILLIPS SCREW #10 X 7/8 - Call your local BRP dealership |
