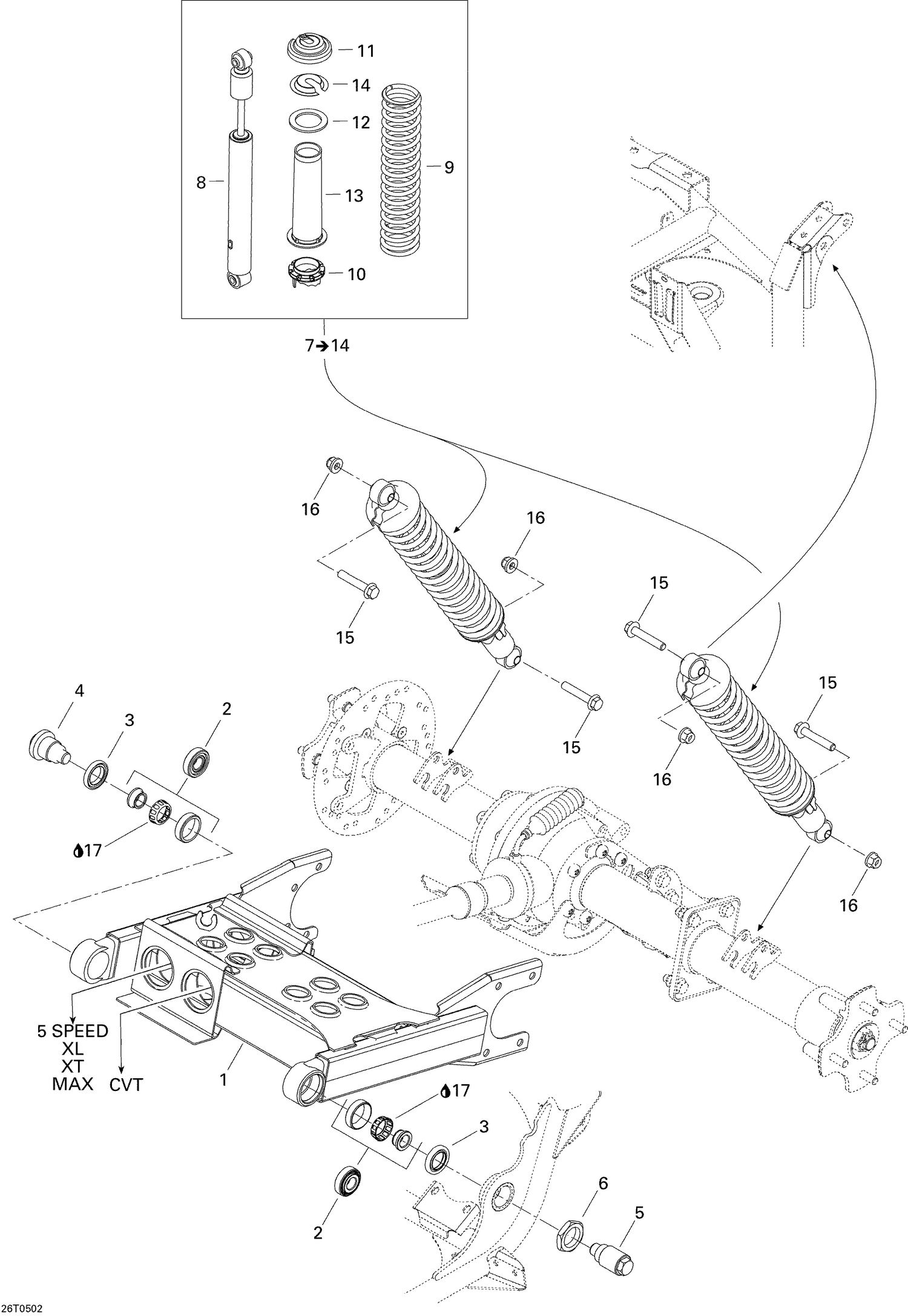

| Ref | Part Number | Description |
|---|
| 1 |
706000298 |
SWING ARM, BLACK - Call your local BRP dealership |
| 2 |
706000169 |
CONE BEARING - Call your local BRP dealership |
| 3 |
706000010 |
OIL SEAL - Call your local BRP dealership |
| 4 |
706000092 |
RH Pivot Bolt |
| 5 |
706000093 |
LH PIVOT BOLT - Call your local BRP dealership |
| 6 |
706000006 |
HEX. JAM NUT - Call your local BRP dealership |
| 8 |
706000380 |
Rear Shock |
| 9 |
706000301 |
Rear Spring, Yellow |
| 10 |
706002356 |
Adjuster Ring This part replaces 706000294. |
| 11 |
706200881 |
Spring Stopper This part replaces 503140600. |
| 12 |
706000533 |
SPRING SEAT - Call your local BRP dealership This part replaces 706000335. |
| 13 |
503190436 |
PROTECTOR - Call your local BRP dealership |
| 14 |
706200785 |
Cap This part replaces 503141600. |
| 15 |
207605544 |
Hex. Flange Screw M10 X 55 |
| 16 |
233201414 |
Hex. Flange Elastic Nut M10 |
