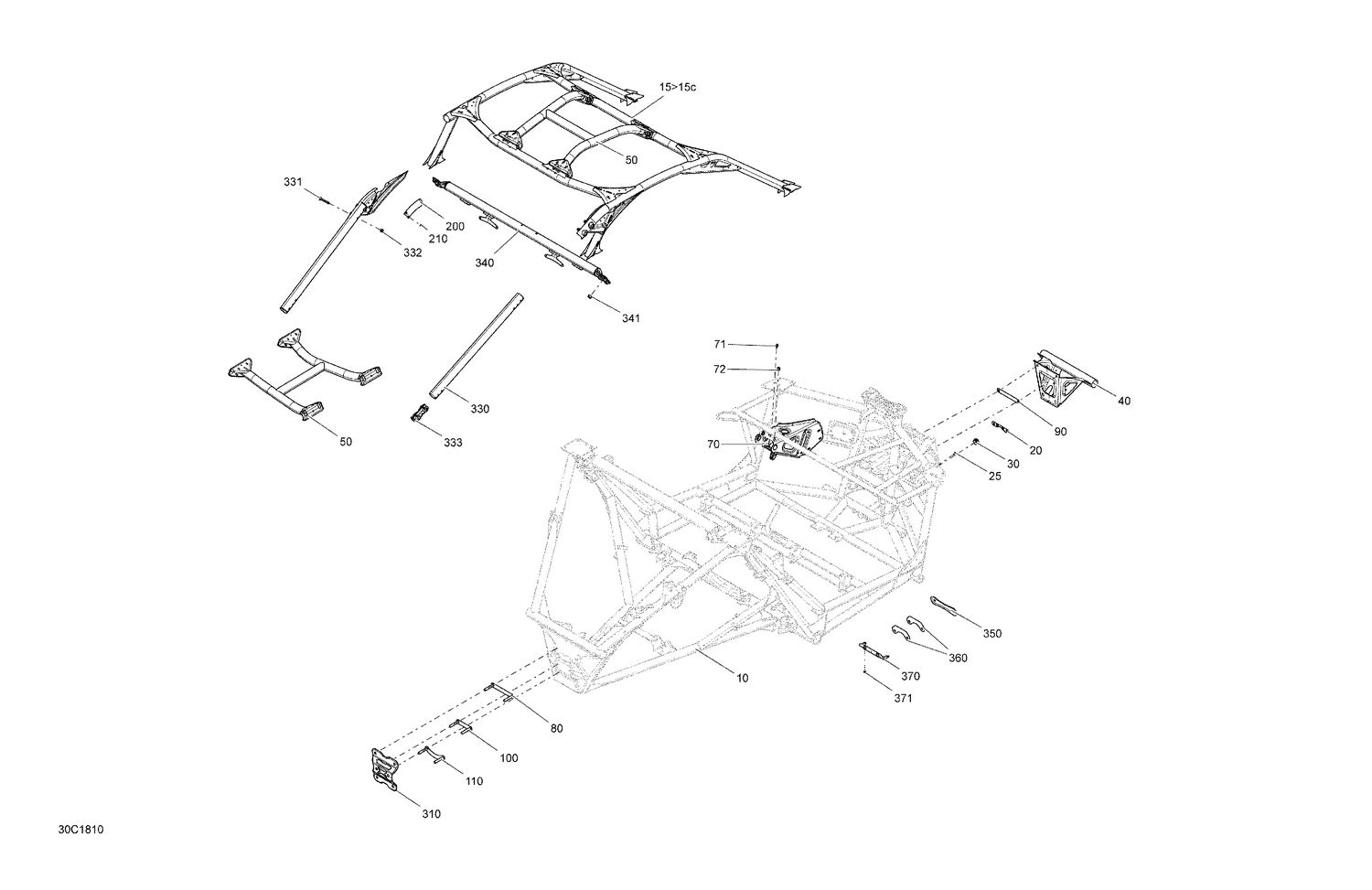

09- Frame Maverick X3 Non MAX
Parts (24)
| Ref | Part Number | Description |
|---|---|---|
| 15a | 250000720 | Torx Screw K50 X 16 |
| 15b | 207523036 | Hex. Flange Screw S.Grip M12 X 30 |
| 15c | 233221414 | Hex. Flange Elastic Nut M12 |
| 20 | 705211561 | Front Plate This part replaces 705207424. |
| 25 | 207561044 | Flange Screw M6 X 10, Scotch Grip |
| 30 | 250100199 | Insert Half Hex Body M6 x 1.0 |
| 70 | 705206924 | DPS Support |
| 71 | 207581244 | Hex. Flange Screw M8 X 12, Scotch Grip |
| 72 | 233281414 | Hex. Flange Elastic Nut M8 |
| 80 | 705206852 | Rear Upper Plate |
| 90 | 705206877 | Stifner Plate This part replaces 705205564. |
| 100 | 705211558 | Rear Central Plate This part replaces 705206853. |
| 110 | 705206854 | Rear Plate |
| 210 | 293730076 | BLACK DART - Call your local BRP dealership |
| 310 | 705205750 | Rear Plate |
| 331 | 250000901 | Torx Truss M8 X 65 |
| 332 | 250100025 | Elastic Flange Nut M8 |
| 333 | 705210648 | Sleeve This part replaces 705205634. |
| 340 | 705205268 | Belt Bar |
| 341 | 232521416 | Elastic Stop Nut M12 |
| 350 | 705205294 | Upper Link Arm |
| 360 | 705210249 | Retaining Plate This part replaces 705205295. |
| 370 | 706203122 | Support |
| 371 | 390402000 | Pop Rivet 3/16" |
