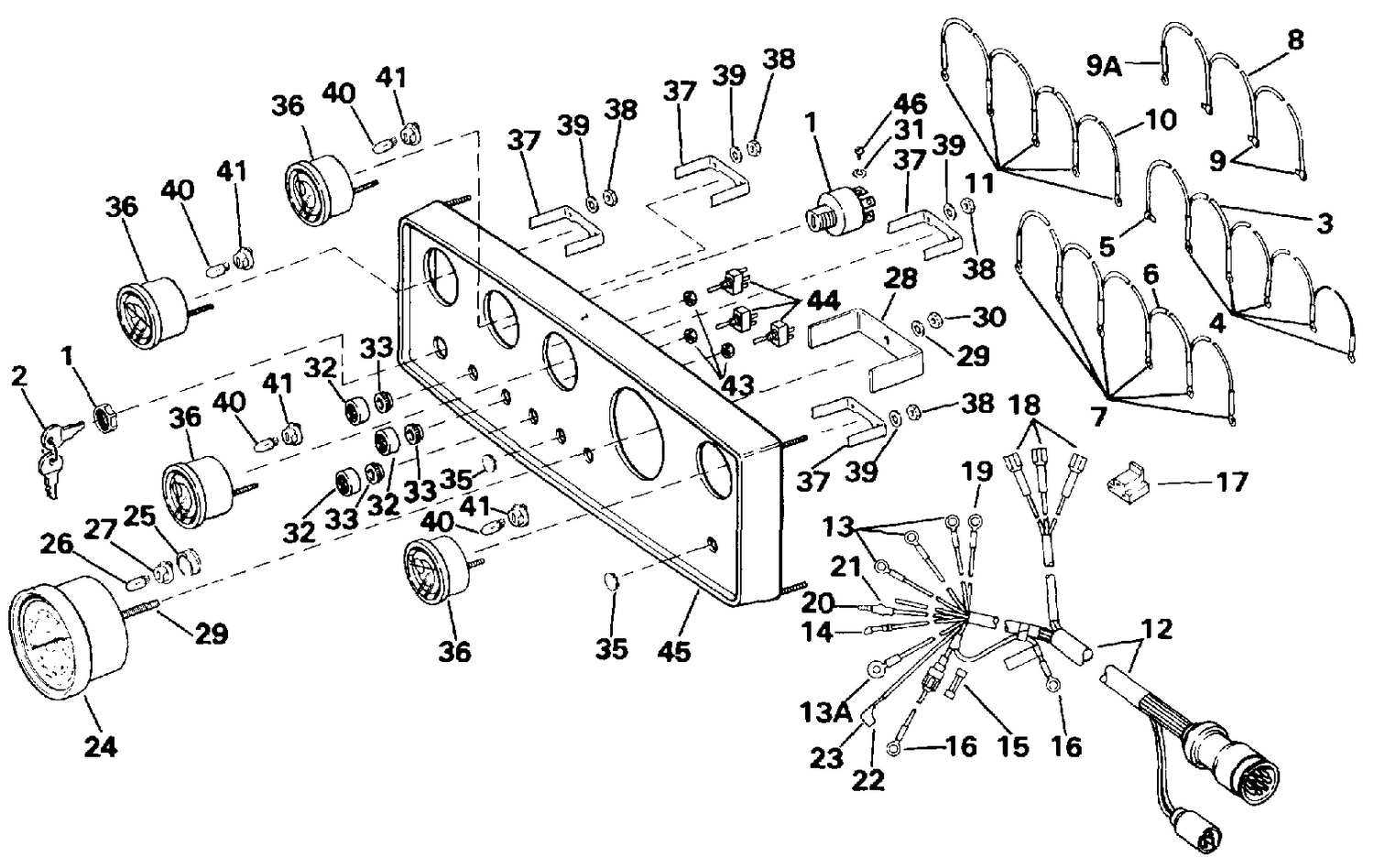

INSTRUMENT PANEL ASSEMBLY
Parts (16)
| Ref | Part Number | Description |
|---|---|---|
| 2 | 0320003 | IGNITION KEY BLANK |
| 3 | 0174766 | LEAD ASSEMBLY, Blue |
| 6 | 0174768 | LEAD ASSEMBLY, Purple |
| 8 | 0174346 | LEAD ASSEMBLY |
| 10 | 0174767 | LEAD ASSEMBLY, Black |
| 12 | 0175209 | CABLE ASSEMBLY, 23 ft. (7m) |
| 23 | 0914745 | COVER |
| 24 | 0174629 | TACHOMETER ASSY, 7000 RPM |
| 35 | 0316337 | PLUG |
| 36 | 0174685 | OIL PRESSURE GAUGE |
| 36 | 0174687 | KIT VOLTMÈTRE |
| 36 | 0174748 | TRIM GAUGE |
| 36 | 0175470 | WATER TEMP GAUGE |
| 44 | 0172437 | INSTRUMENT LIGHT SWITCH |
| 45 | 0174398 | INSTRUMENT PANEL & STUD |
| 0175509 | 0175509 | INSTRUMENT PANEL ASSY. |
