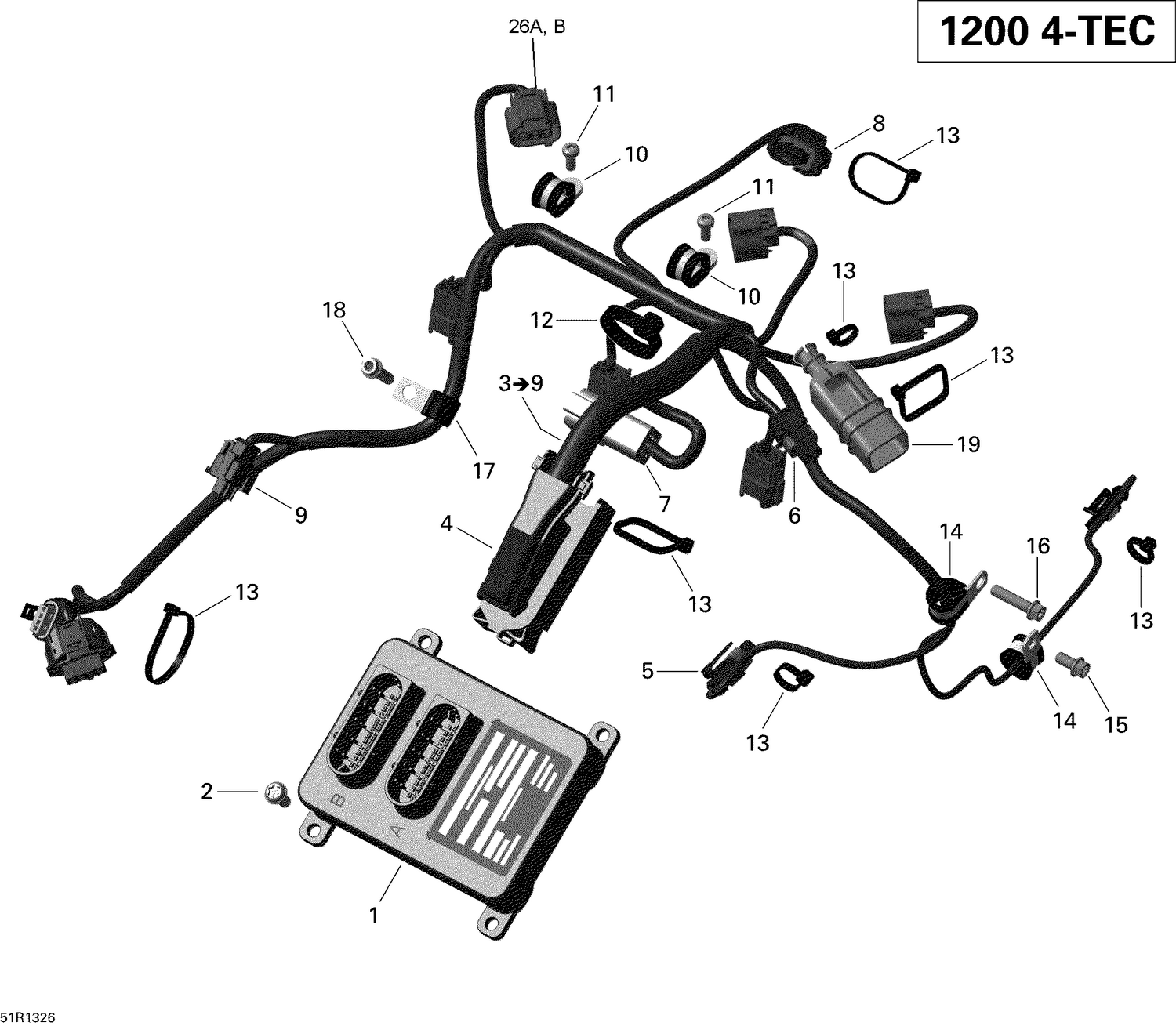

| Ref | Part Number | Description |
|---|
| 1 |
420666128 |
ECM, Engine Control Module |
| 2 |
420641588 |
Torx Flange Screw M6 X 16 This part replaces 420641583. |
| 4 |
420664450 |
ECM Connector |
| 5 |
278001005 |
Male Housing, 2 Circuits |
| 6 |
278001005 |
Male Housing, 2 Circuits |
| 7 |
710001539 |
Male Terminal Housing, 6 Circuits This part replaces 270000137. |
| 8 |
278001830 |
Housing Connector, 3 Circuits |
| 9 |
278001829 |
Housing Connector, 3 Circuits |
| 10 |
420851108 |
CABLE CLAMP - Call your local BRP dealership |
| 11 |
420640086 |
Torx Screw M5 X 12 |
| 12 |
420866716 |
Tie-Rap |
| 13 |
420651397 |
Tie Rap This part replaces 420651396. |
| 14 |
420851492 |
Cable Clamp |
| 15 |
420440147 |
Hex. Flange Screw M6 X 12 |
| 16 |
420440234 |
Torx Flange Screw M6 X 25 This part replaces 420440232. |
| 17 |
420251812 |
Cable Clamp |
| 18 |
420440234 |
Torx Flange Screw M6 X 25 |
| 19 |
420201070 |
PROTECTOR - Call your local BRP dealership |
| 26 |
Not |
Available As Spare Part - Connector - Coil 1-3 |
| 26a |
710000335 |
Female Terminal |
