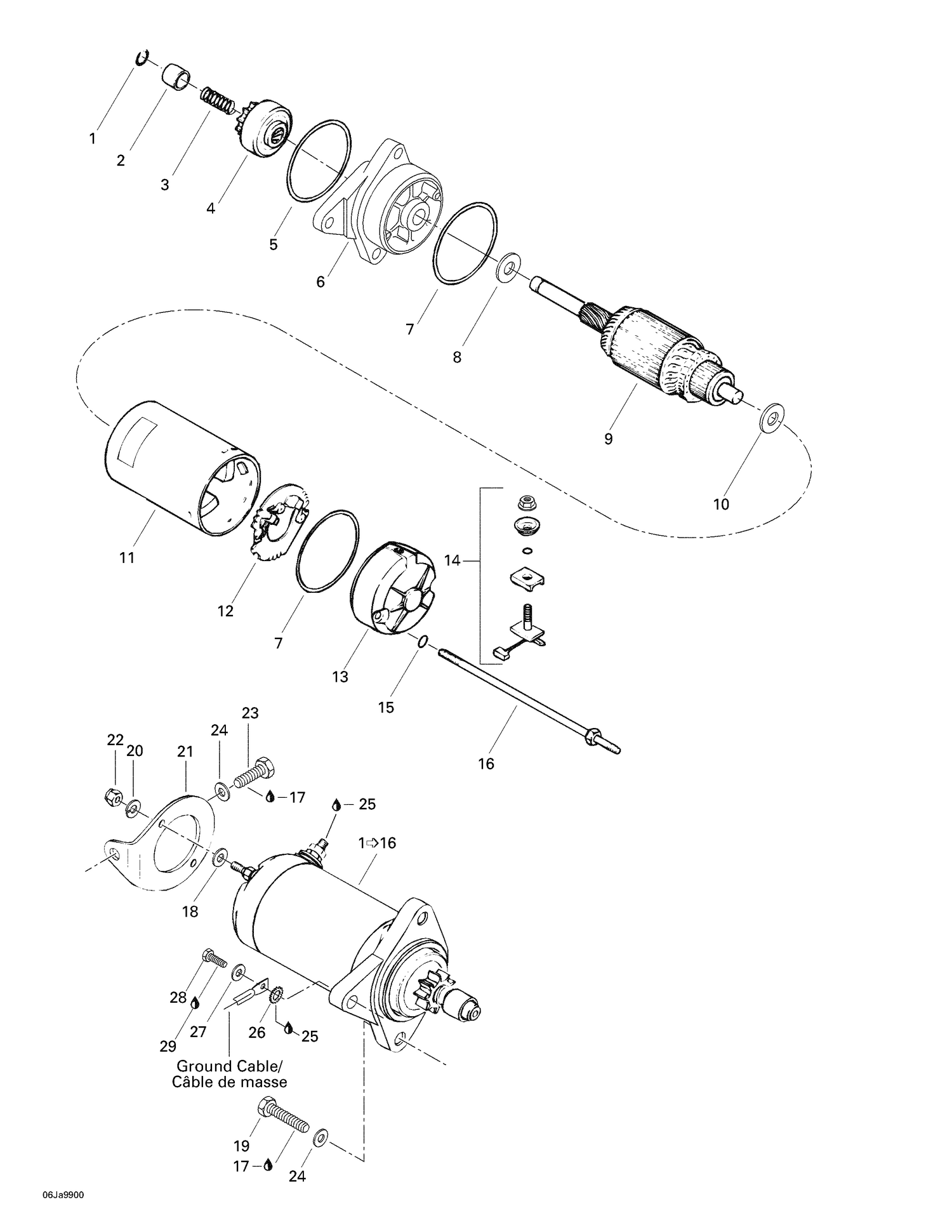

04- Starter
Parts (28)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 410207700 | SNAP RING - Call your local BRP dealership |
| 2 | 278000254 | Stopper Bushing |
| 3 | 278000168 | SPRING - Call your local BRP dealership |
| 4 | 295500089 | Starter Clutch Ass'y |
| 5 | 278000694 | O-RING - Call your local BRP dealership |
| 6 | 278000697 | Housing Ass'y |
| 7 | 278000695 | O-Ring |
| 8 | 278000054 | Flat Washer |
| 9 | 278000699 | Armature |
| 10 | 278000056 | THRUST WASHER - Call your local BRP dealership |
| 11 | 278000057 | Yoke Ass'y |
| 12 | 278001296 | Brush Holder |
| 13 | 278000251 | Commutator End Frame |
| 14 | 278001297 | Brush Starter Kit |
| 15 | 278000060 | O-RING - Call your local BRP dealership |
| 16 | 278000170 | RETAINER STUD - Call your local BRP dealership |
| 17 | 293800060 | Loctite 243, 10 ml This part replaces 293800015. |
| 18 | 234051600 | Flat Washer M5, Stainless |
| 19 | 207183060 | Hex. Screw M8 X 30 |
| 20 | 234151601 | Helical Lock Washer M5 |
| 21 | 270000080 | Starter Support |
| 22 | 232051600 | Hex. Nut M5 |
| 23 | 207181660 | Hex. Screw M8 X 16 |
| 24 | 234081600 | Stainless, Flat Washer 8 mm |
| 25 | 219704453 | Was 293550004 Dielectric Grease, 150 g |
| 26 | 234381608 | TOOTHED LOCK WASHER - Call your local BRP dealership |
| 27 | 234080600 | Flat Washer M8, Stainless |
| 28 | 207182060 | HEX. SCREW M8 X 20 - Call your local BRP dealership |
