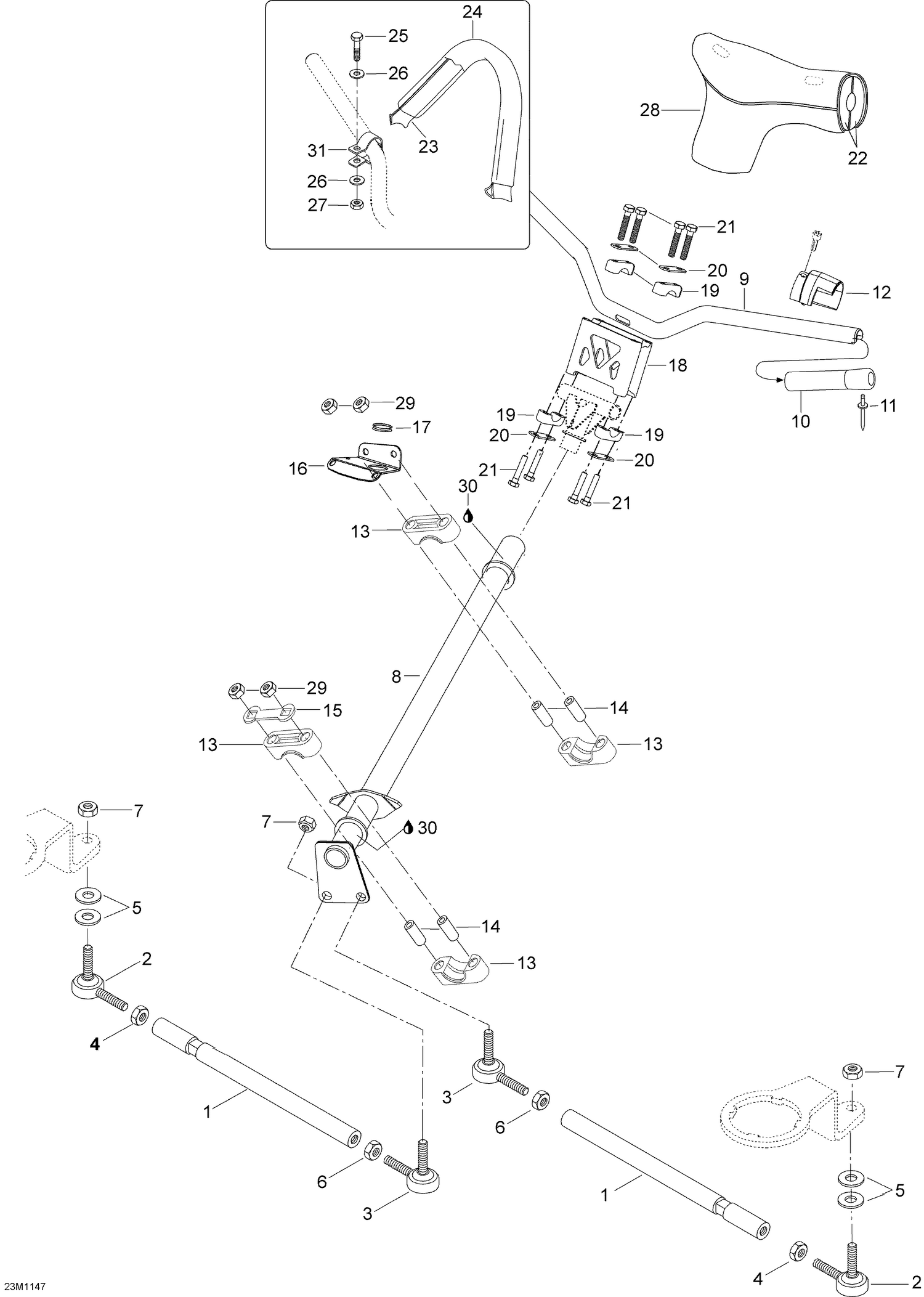

07- Steering
Parts (31)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 605454293 | LH TIE ROD - Call your local BRP dealership |
| 1 | 605454772 | RH TIE ROD - Call your local BRP dealership |
| 2 | 506151492 | RH BALL JOINT - Call your local BRP dealership |
| 3 | 506151845 | LH JOINT BALL - Call your local BRP dealership |
| 4 | M33019 | RH NUT - Call your local BRP dealership |
| 5 | M31014 | Washer |
| 6 | M33017 | LH NUT - Call your local BRP dealership |
| 7 | 232501416 | Elastic Flange Nut M10 |
| 8 | 605253421 | MAIN TUBE - Call your local BRP dealership |
| 9 | 605251368 | HANDLE BAR - Call your local BRP dealership |
| 10 | 506152483 | Grip This part replaces M5340464. |
| 11 | 36005 | Rivet This part replaces M36005. |
| 12 | 506151566 | ADAPTATOR - Call your local BRP dealership |
| 13 | 506150400 | Housing Half |
| 14 | 506150500 | Housing Bushing |
| 15 | 506150600 | Stopper Plate |
| 16 | 605351973 | Bracket |
| 17 | 28022 | Grommet This part replaces M28022. |
| 18 | 860603900 | Riser Handle Bar Kit |
| 19 | 709400919 | Steering Support This part replaces 506151622. |
| 20 | 709400509 | Stiffner |
| 21 | 250000074 | Hex. Screw With Nylon M8 X 40 |
| 22 | 605354907 | Foam |
| 23 | 506152115 | Strap Ass'y |
| 24 | 506152115 | Strap Ass'y |
| 25 | 207162544 | Hex. Screw M6 X 25 |
| 26 | 234061410 | Flat Washer 6 mm |
| 27 | 232561414 | Elastic Stop Nut M6 |
| 28 | 605254571 | STEERING COVER - Call your local BRP dealership |
| 29 | 233281414 | Hex. Flange Elastic Nut M8 |
| 30 | 293550033 | SUSPENSION GREASE, 10 X 400 G - Call your local BRP dealership |
