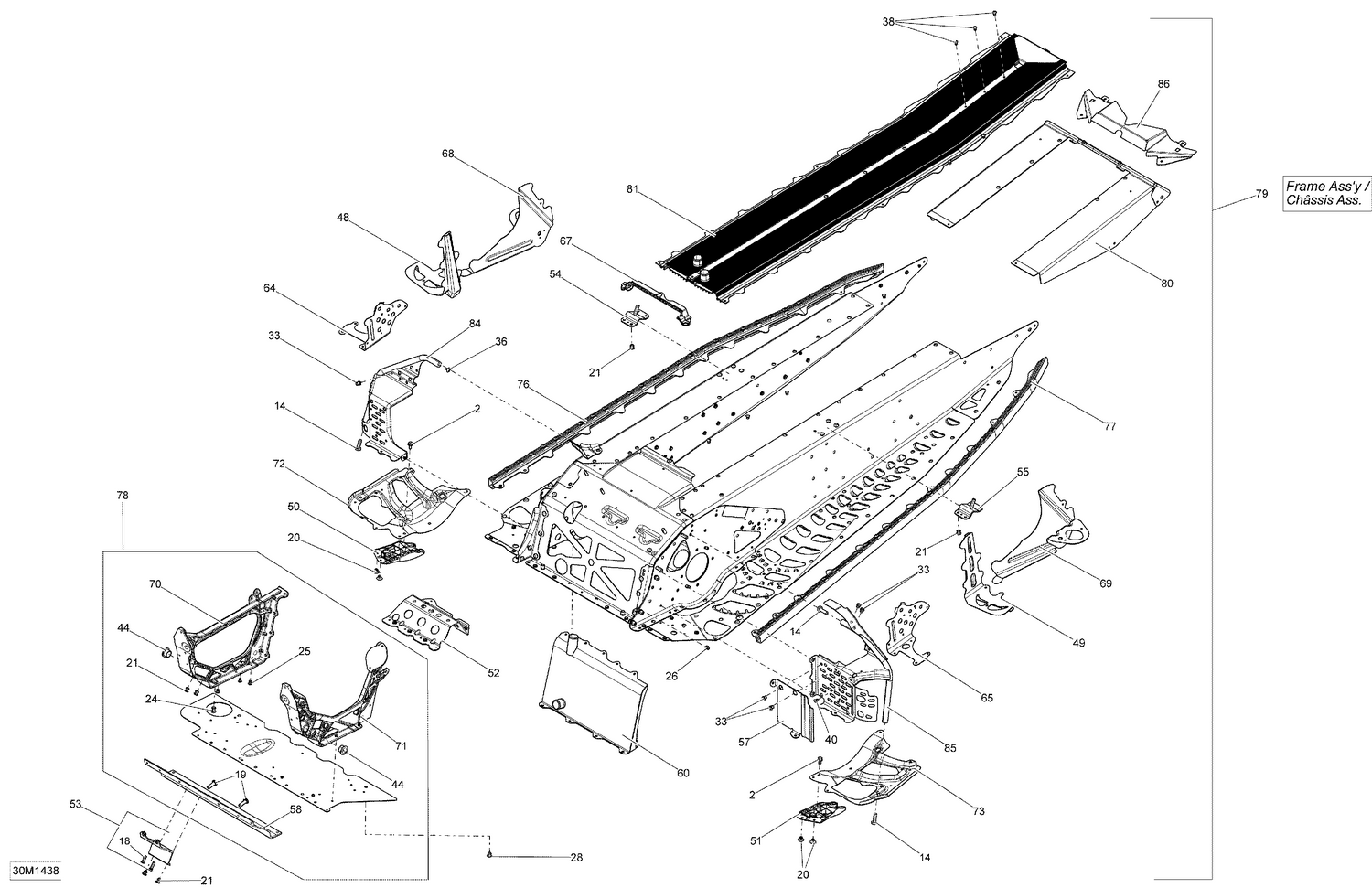

09- Frame _30M1438
Parts (43)
| Ref | Part Number | Description |
|---|---|---|
| 2 | 207561244 | Hex. Flange Screw M6 X 12, Scotch Grip |
| 14 | 250000752 | Torx Screw M8 X 1.25 X 25, Scotch Grip This part replaces 250000248. |
| 18 | 250300027 | Clinch Stud M6 X 20 |
| 19 | 250300038 | Clinch Stud |
| 20 | 293150104 | Pop Rivet 3/16" |
| 21 | 293150119 | Hemlock Rivet, 6.5 mm |
| 24 | 293150120 | Hemlock Rivet 6.5 mm |
| 25 | 293150144 | Stavex Rivet |
| 26 | 293150146 | Henrob Rivet |
| 28 | 293150174 | Hemlock Rivet, 6.4 mm |
| 33 | 293450268 | Insert M5 X 0.8 |
| 36 | 293730042 | Full Moon Dart 5 mm |
| 38 | 390909100 | Avex Rivet |
| 40 | 390909200 | Avex Rivet |
| 44 | 505073317 | Leg Cushion |
| 48 | 518325747 | RH REINFORCEMENT - Call your local BRP dealership |
| 49 | 518325748 | LH REINFORCEMENT - Call your local BRP dealership |
| 50 | 518325782 | RH Deflector, Black Polypropylene |
| 51 | 518325783 | LH Deflector, Black Polypropylene |
| 52 | 518325796 | LINK CROSS - Call your local BRP dealership |
| 53 | 518325943 | MAG Engine Support |
| 54 | 518325973 | RH Rear Base |
| 55 | 518325974 | LH Rear Base |
| 57 | 518326188 | PLATE - Call your local BRP dealership |
| 58 | 518326198 | Front Member |
| 60 | 518326485 | Front Radiator This part replaces 518326486. |
| 64 | 518326616 | RH Front Suspension Retainer |
| 65 | 518326617 | LH Front Suspension Retainer |
| 67 | 518326656 | Seal |
| 68 | 518326766 | RH REAR SUPPORT - Call your local BRP dealership |
| 69 | 518326767 | LH REAR SUPPORT - Call your local BRP dealership |
| 70 | 518326795 | RH Member |
| 71 | 518326796 | LH Member |
| 72 | 518326937 | RH Reinforcement, Running Board |
| 73 | 518326938 | LH Reinforcement, Running Board |
| 76 | 518327187 | RH ROLLER - Call your local BRP dealership |
| 77 | 518327188 | LH ROLLER - Call your local BRP dealership |
| 78 | 518327567 | E Module |
| 79 | 415129852 | FRAME ASS'Y - Call your local BRP dealership |
| 80 | 518327624 | REAR CAP - Call your local BRP dealership |
| 81 | 518327632 | REAR WELDED RADIATOR - Call your local BRP dealership |
| 84 | 518327841 | RH Stirup |
| 85 | 518327937 | LH Stirup |
