Home / BRP / 2027 / 008 - XTerrain Series / Europe - XTERRAIN 600RR E-TEC - Limited / Europe - XTERRAIN - 600RR E-TEC - Limited - SVVA - Deep Black - 146X15X2.0P Track - 2027 000SVVA00 / 07- Body - Seat

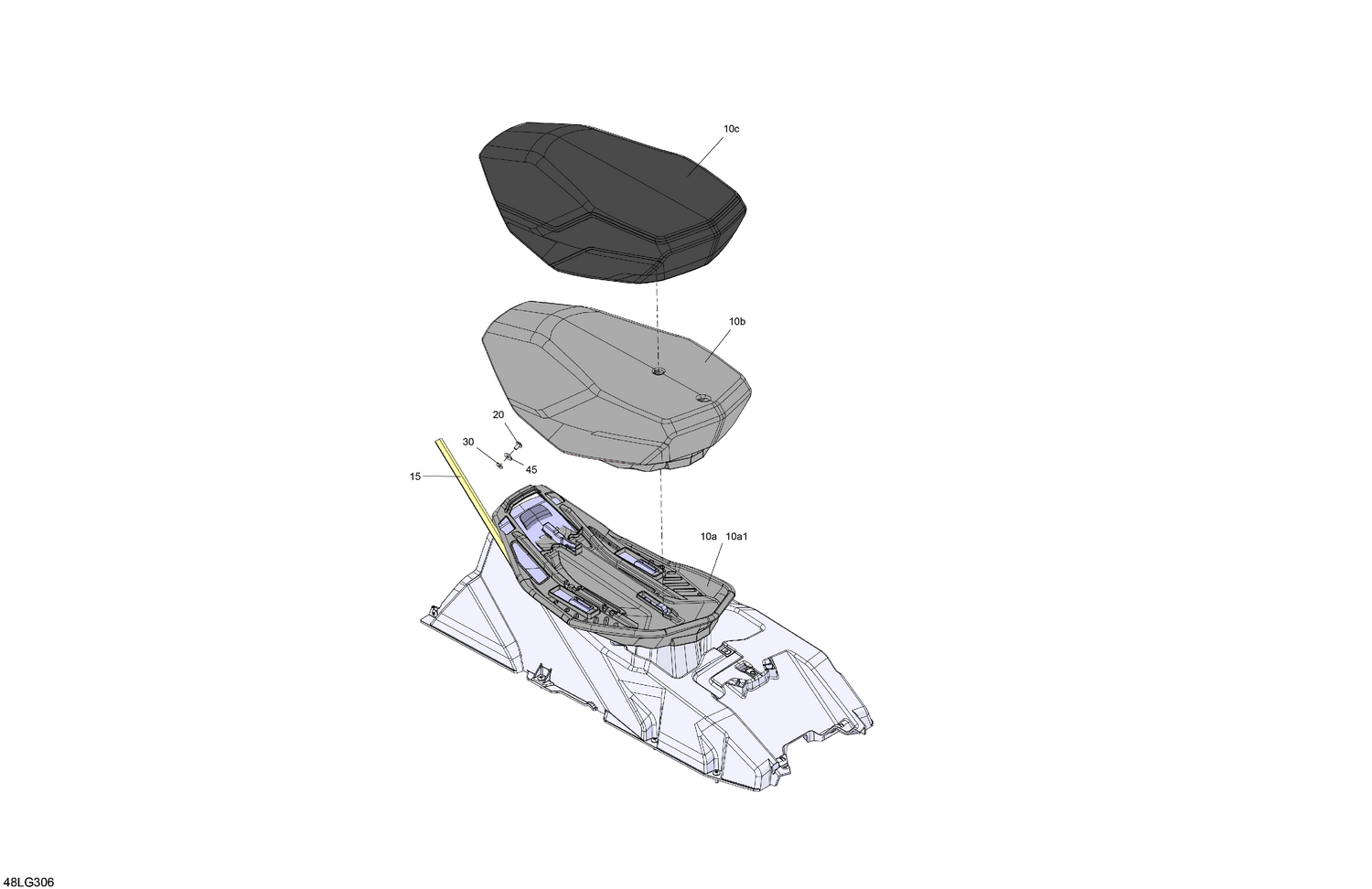

07- Body - Seat

07- Body - Seat

Parts (6)

RefPart NumberDescription
10a1 510007701 Driver Seat Base
10b 510008147 Driver Seat Foam
10c 510008207 Driver Seat Cover
15 510007841 Tube_Sectional
20 250000767 Torx Truss Screw M6 X 12
30 250200039 Flat Washer
