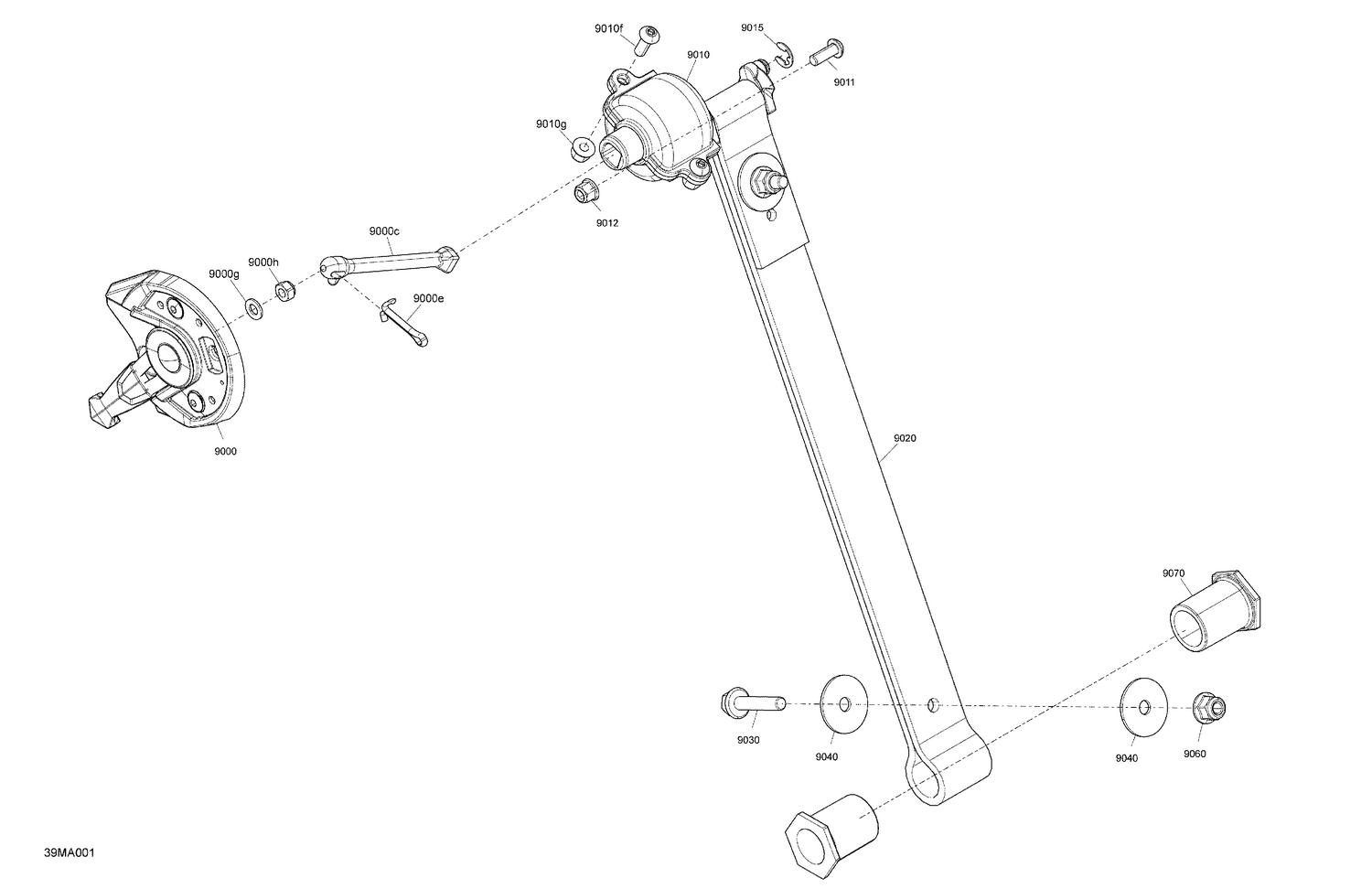

05- Suspension - Adjustable Limiter Strap
Parts (13)
| Ref | Part Number | Description |
|---|---|---|
| 9000c | 503194147 | Shaft |
| 9000e | 371800800 | COTTER PIN - Call your local BRP dealership |
| 9000g | 234051410 | Flat Washer M5 |
| 9000h | 232551414 | Elastic Stop Nut M5 |
| 9010f | 235551454 | Screw-Torx Button Head M5 X 14 |
| 9010g | 233251434 | Flange Elastic Nut M5 |
| 9011 | 235551454 | Screw-Torx Button Head M5 X 14 |
| 9012 | 233251434 | Flange Elastic Nut M5 |
| 9015 | 705601030 | Circlip |
| 9020 | 503194054 | Stopper Strap |
| 9030 | 207663056 | Hex. Flange Screw M6 X 1.0 X 30 |
| 9040 | 503193995 | Washer |
| 9060 | 233261466 | Hex. Flange Elastic Nut M6 |
