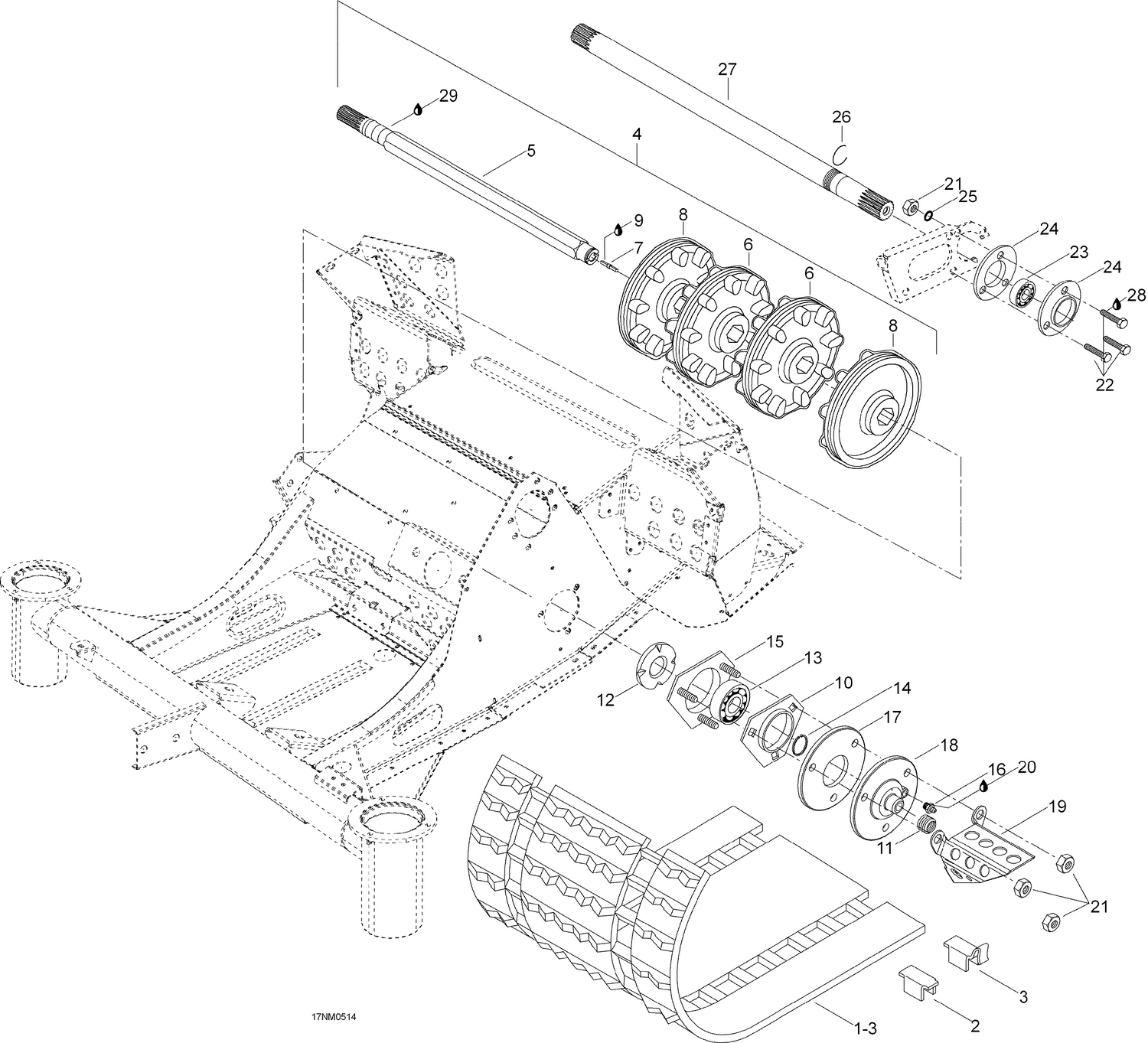

| Ref | Part Number | Description |
|---|
| 2 |
5318329 |
Flat cleat |
| 3 |
5318330 |
Guide cleat |
| 5 |
5346304 |
Vetoakseli |
| 6 |
539750 |
Sprocket |
| 7 |
542013 |
Speedo drive insert |
| 8 |
5342920 |
Sprocket |
| 9 |
Not |
Available As Spare Part - Loctite 2701 |
| 10 |
501025000 |
FLANGE - Call your local BRP dealership |
| 11 |
5446614 |
Threated bushing |
| 12 |
501017400 |
BEARING PROTECTOR - Call your local BRP dealership |
| 13 |
293350060 |
Ball Bearing This part replaces 504152009. |
| 14 |
31001 |
Circlip |
| 15 |
504151860 |
BEARING HOUSING - Call your local BRP dealership |
| 16 |
34011 |
Grease Fitting M6 x 1,00(1=10pcs) - Call your local BRP dealership |
| 17 |
5446641 |
Plate |
| 18 |
504151836 |
Flange |
| 19 |
517290100 |
CABLE PROTECTOR - Call your local BRP dealership |
| 20 |
293550033 |
SUSPENSION GREASE, 10 X 400 G - Call your local BRP dealership |
| 21 |
232581414 |
Hex. Elastic Stop Nut M8 This part replaces 33011. |
| 22 |
40336 |
HEX. SCREW M8 X 20 - Call your local BRP dealership |
| 23 |
504152008 |
BALL BEARING - Call your local BRP dealership |
| 24 |
5346237 |
Flange - Call your local BRP dealership |
| 25 |
414484400 |
O-ring |
| 26 |
371910000 |
Circlip |
| 27 |
5146138 |
Counter shaft |
| 28 |
293800060 |
Liima Loctite 243 10ml |
