| Ref | Part Number | Description |
|---|
| 1 |
0174362 |
BASE ASSY |
| 1 |
0174363 |
BASE ASSY - 4.3 LITRE |
| 2 |
0124845 |
FITTING |
| 3 |
0174360 |
ADAPTER ASSY - 5.0, 5.7 LITRE |
| 3 |
0174361 |
ADAPTER ASSY - 4.3 LITRE |
| 4 |
0124843 |
FITTING |
| 5 |
0124810 |
O-RING, Adapter - 5.0 & 5.7 L models |
| 5 |
0124811 |
O-RING, Adapter - 4.3 L model |
| 6 |
0174359 |
BRACKET |
| 7 |
0315340 |
SCREW, Alternator to bracket |
| 8 |
0300977 |
SCREW |
| 9 |
3854292 |
LOCK WASHER, Screw to hsg. This part replaces 0304145. |
| 10 |
0328742 |
NUT This part replaces 0306338. |
| 11 |
0310896 |
SCREW |
| 13 |
0305496 |
LOCKNUT, Alternator to bracket |
| 14 |
0124844 |
CLAMP |
| 15 |
0320107 |
ATTACHE-CÂBLE, connecteur capteur de position de vilebrequin vers clapet |
| 16 |
0120177 |
L'WASHER, Alternator to brkt |
| 0174291 |
0174291 |

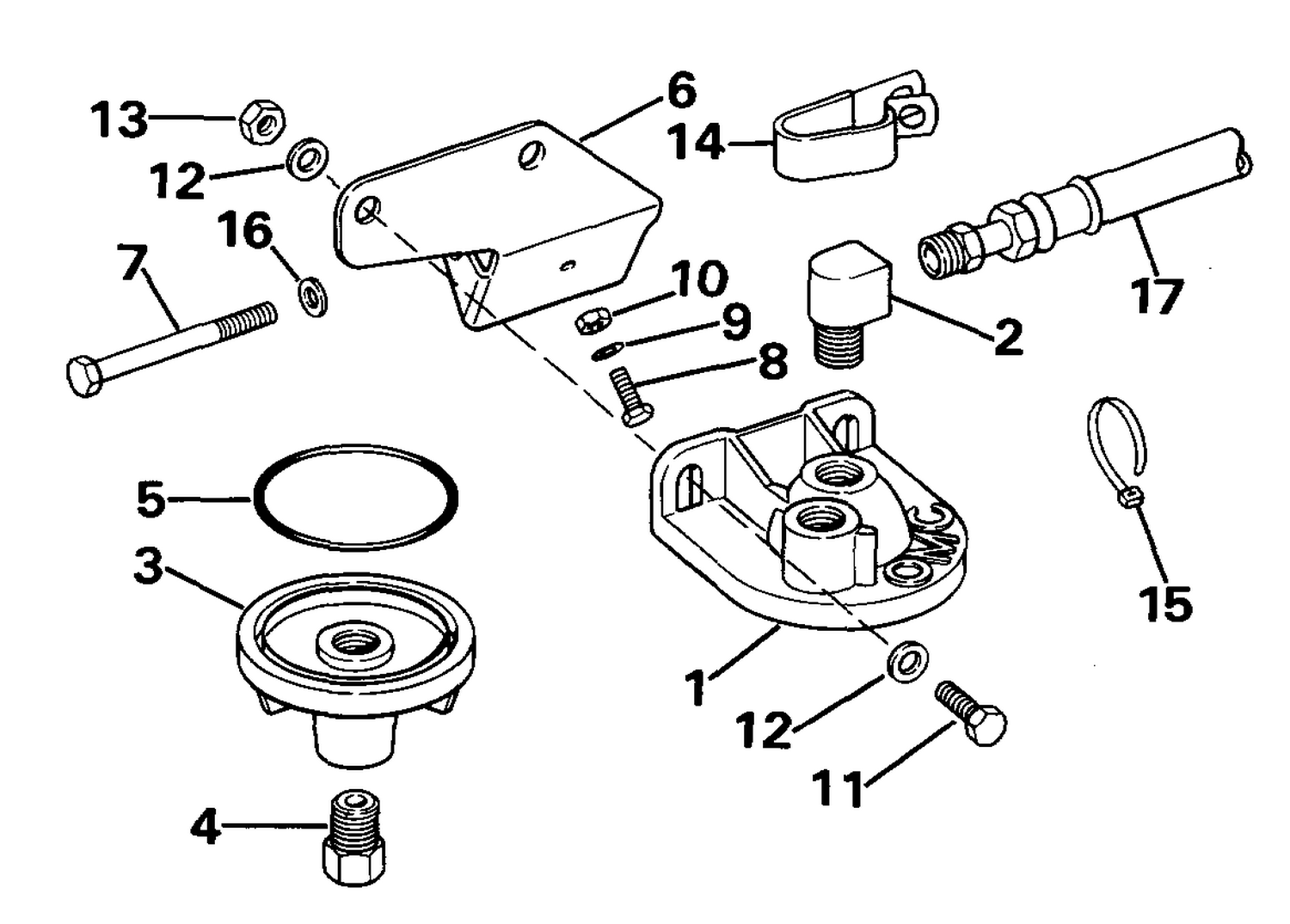

REMOTE OIL FILTER KIT - 5.0 & 5.7 L MODELS |
| 0174292 |
0174292 |
REMOTE OIL FILTER KIT - 4.3 L MODELS |
