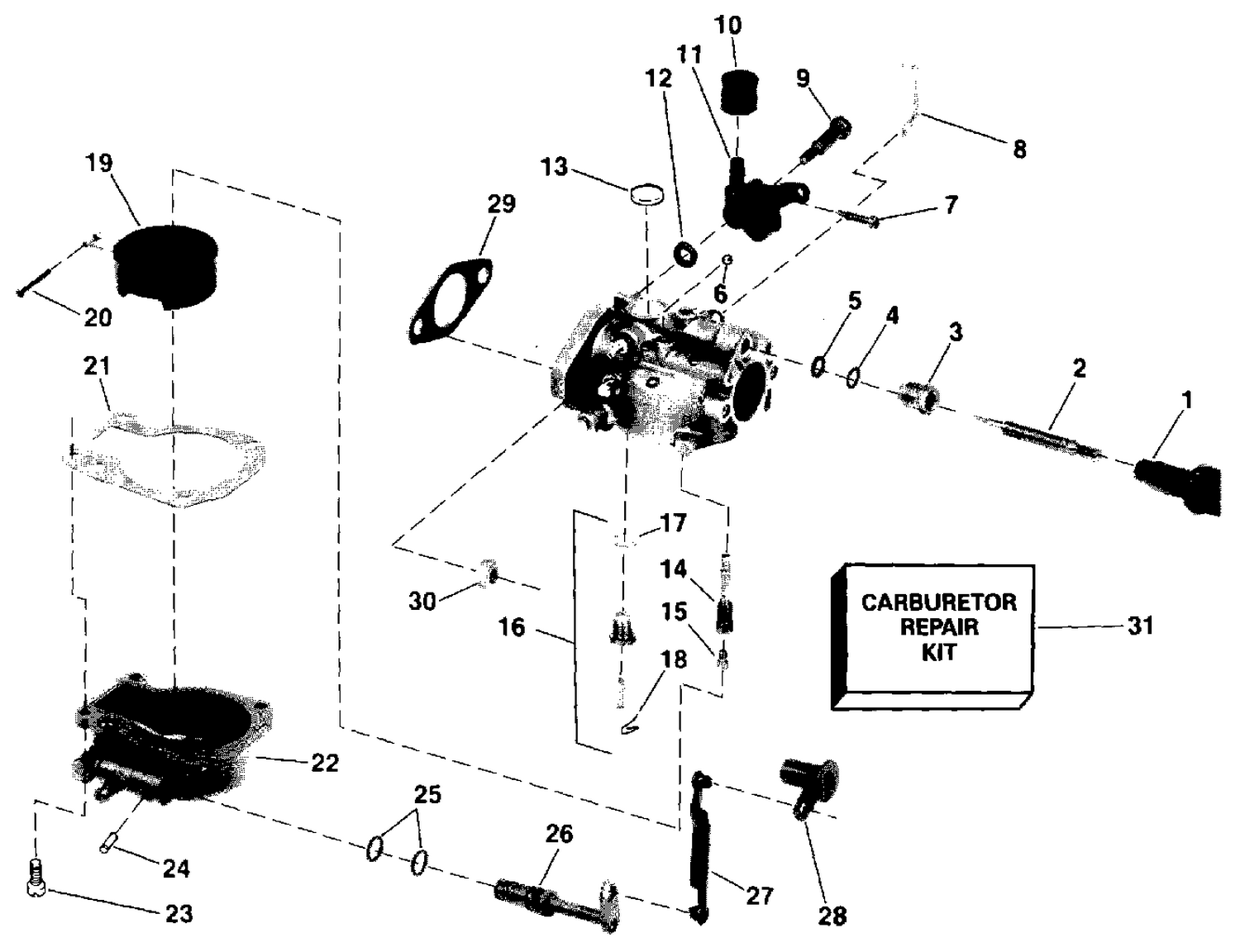

CARBURETOR
Parts (12)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 0331372 | KNOB, Adjusting, slow speed needle valve |
| 2 | 0431634 | NEEDLE VALVE ASSY., Slow speed adjustment |
| 8 | 0330192 | LINK, Cam follower |
| 18 | 0336842 | CLIP, SPRING This part replaces 0603145. |
| 22 | 0397460 | CHAMBER ASSY., Float |
| 26 | 0331467 | VALVE, Fuel shut-off |
| 27 | 0332029 | LINK, Fuel shut-off lever to valve |
| 28 | 0331368 | LEVER, Primer pump assy., fuel shutoff |
| 29 | 0323452 | GASKET |
| 30 | 0328742 | NUT |
| 0396470 | 0396470 | CARBURETOR ASSEMBLY |
| 0396512 | 0396512 | CARBURETOR ASSEMBLY |
