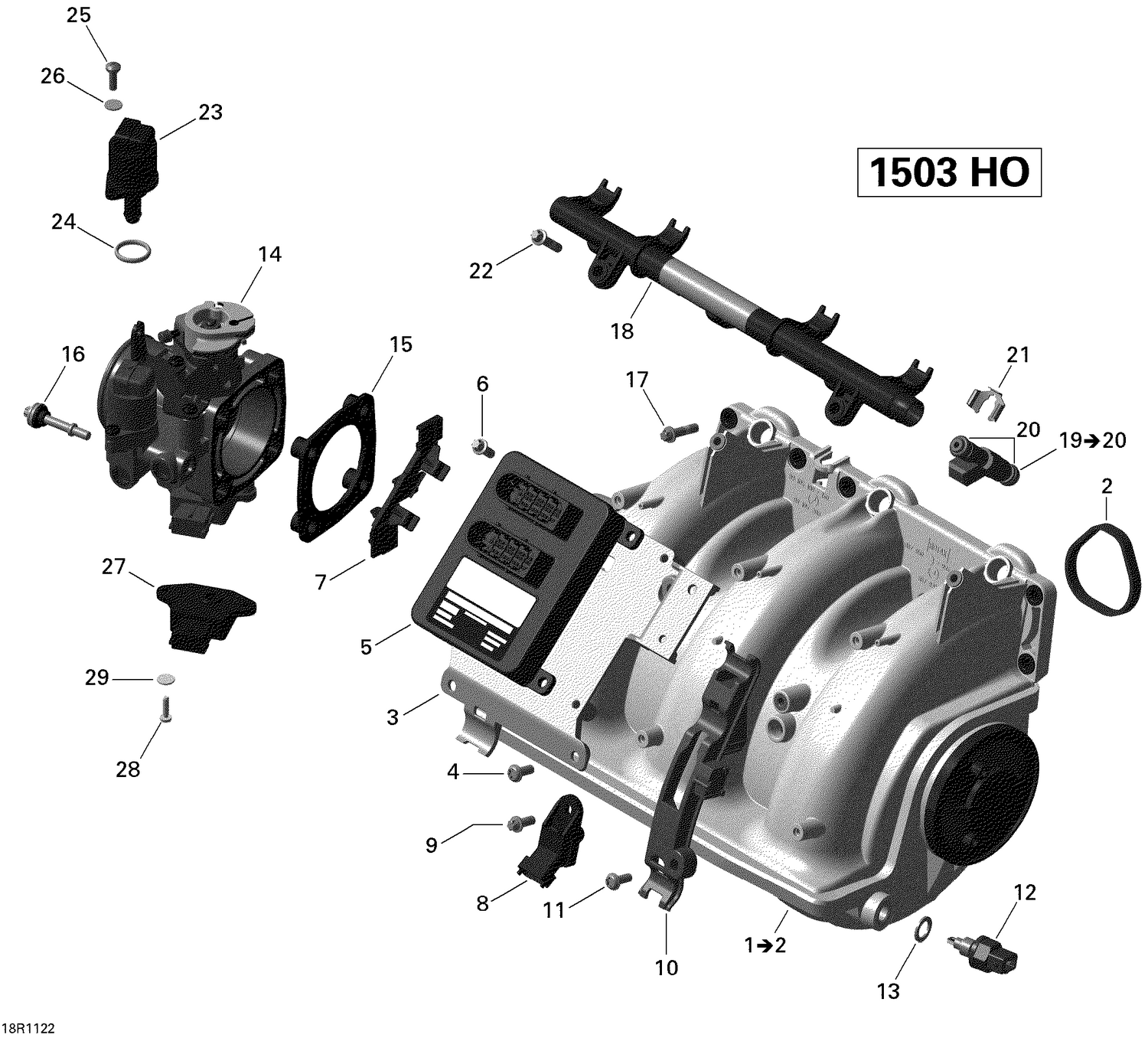

| Ref | Part Number | Description |
|---|
| 2 |
420950740 |
Gasket |
| 3 |
420851521 |
BASE PLATE - Call your local BRP dealership |
| 4 |
420641048 |
Torx Flange Screw M6 X 16 |
| 5 |
420665866 |
Electronic Box |
| 6 |
420641588 |
Torx Flange Screw M6 X 16 This part replaces 420641583. |
| 7 |
420660402 |
CONNECTOR BRACKET - Call your local BRP dealership |
| 8 |
420274058 |
Pressure Sensor This part replaces 420274057. |
| 9 |
420641048 |
Torx Flange Screw M6 X 16 |
| 10 |
420660410 |
WIRING SUPPORT - Call your local BRP dealership |
| 11 |
420641588 |
Torx Flange Screw M6 X 16 This part replaces 420641583. |
| 12 |
420222421 |
Temperature Sensor This part replaces 420222423. |
| 13 |
420250016 |
Aluminum Sealing Ring This part replaces 420250015. |
| 14 |
420892450 |
Throttle Body |
| 15 |
420950792 |
Rubber Gasket |
| 16 |
420440561 |
Allen Screw M6 x 30,5 This part replaces 420440560. |
| 17 |
420641238 |
Torx Flange Screw M6 X 25 |
| 18 |
420874394 |
FUEL RAIL ASS'Y - Call your local BRP dealership |
| 20 |
420631220 |
O-Ring |
| 21 |
420853030 |
Injector Clip This part replaces 420851531. |
| 22 |
420641238 |
Torx Flange Screw M6 X 25 |
| 23 |
420963051 |
Idle Bypass Valve |
| 24 |
420631780 |
O-Ring |
| 25 |
420440911 |
Binding Head Screw M5 X 16 |
| 26 |
420845710 |
Snap Ring |
| 27 |
420866120 |
Position Sensor This part replaces 270000251. |
| 28 |
208641660 |
Phillips Screw M4 X 16 |
