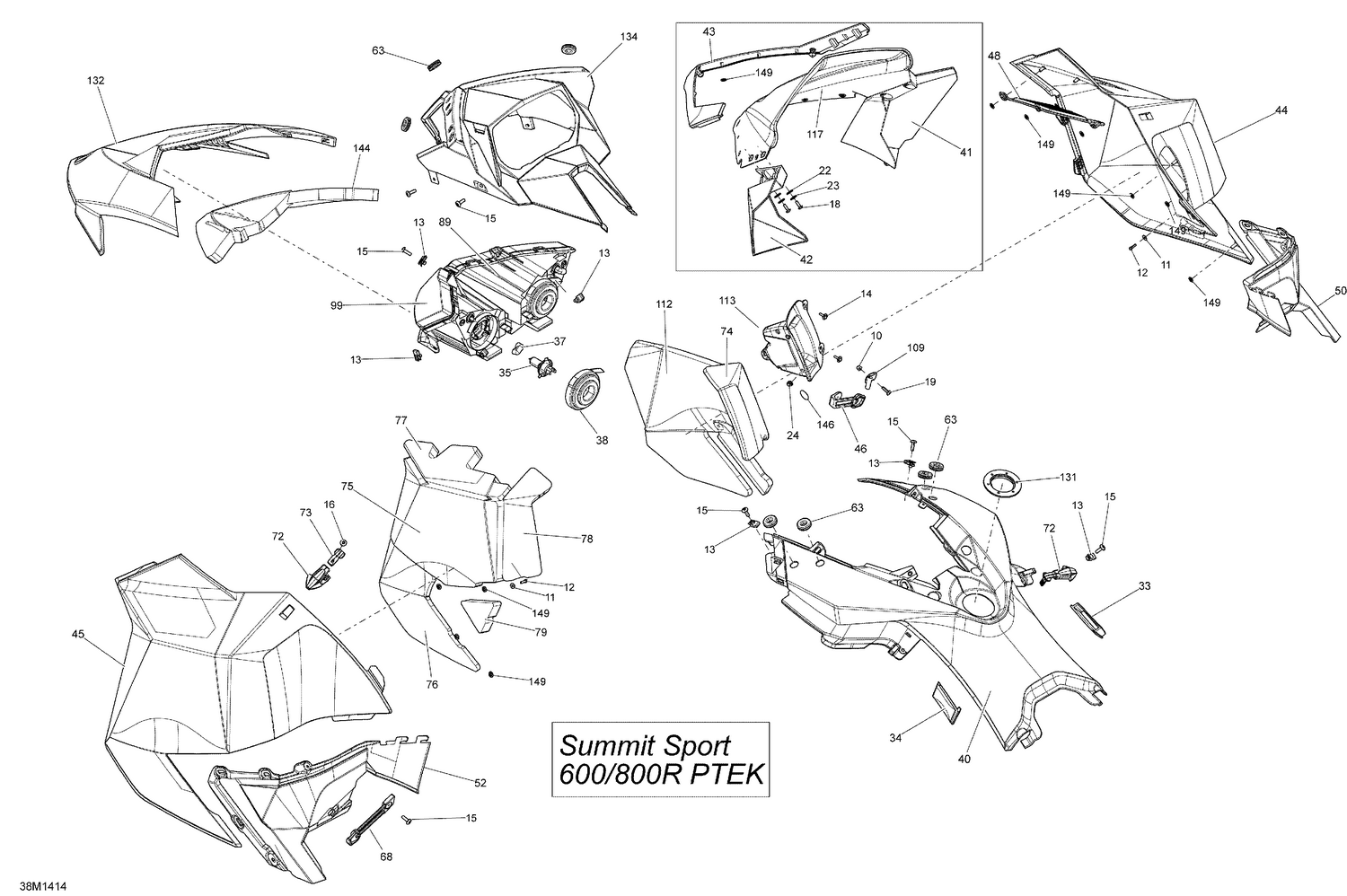

09- Hood, Windshield And Console
Parts (49)
| Ref | Part Number | Description |
|---|---|---|
| 10 | 233251434 | Flange Elastic Nut M5 This part replaces 233251414. |
| 11 | 234042600 | Flat Washer 4 mm, Stainless |
| 12 | 241141660 | Hex. Flange Screw K40 X 16 |
| 13 | 250100198 | Panel Nut M6 X 1.0 This part replaces 250100113. |
| 14 | 250000725 | Screw M4 X 16 This part replaces 250000113. |
| 15 | 250000722 | Torx Screw M6 X 20 This part replaces 250000128. |
| 16 | 250000721 | Torx Truss Screw M6 X 16 This part replaces 250000129. |
| 18 | 250000720 | Torx Screw K50 X 16 This part replaces 250000146. |
| 19 | 250000792 | Torx Screw M5 X 20 This part replaces 250000465. |
| 22 | 250200024 | Rubber Washer 5 mm |
| 23 | 250200025 | Washer M5 |
| 24 | 275500241 | Black, Cap |
| 33 | 513033471 | RH Panel Clip |
| 34 | 513033472 | LH Panel Clip |
| 35 | 515176274 | Halogen Bulb, 60/55 W, 12 V ( H4 ) |
| 37 | 515176498 | Cap |
| 38 | 219800280 | Rubber Cap Protector This part replaces 515176499. |
| 41 | 517303604 | RH Air Deflector |
| 42 | 517303605 | LH Air Deflector |
| 43 | 517303607 | Windshield Support |
| 44 | 517304029 | Deep Black, RH Panel |
| 45 | 517304030 | Deep Black, LH Panel |
| 46 | 517303612 | RH Panel Latch |
| 48 | 517303622 | Grille |
| 50 | 517303671 | Deep Black RH Moulding Panel |
| 52 | 517303673 | Deep Black, LH Moulding Panel |
| 63 | 517303756 | Grommet |
| 65 | 517304029 | Deep Black, RH Panel |
| 68 | 517303808 | LH Panel Latch |
| 72 | 860200239 | Black Latch Kit |
| 73 | 517303981 | Panel Latch |
| 74 | 517304884 | RH Panel Rear Foam |
| 75 | 517304887 | LH Panel Center Foam |
| 76 | 517304888 | LH Panel Lower Foam |
| 77 | 517304889 | LH Panel Upper Foam |
| 78 | 517304890 | LH Panel Rear Foam |
| 79 | 517304891 | Foam |
| 89 | 517304194 | RH Headlamp Ass'y |
| 99 | 517304195 | LH Headlamp Ass'y |
| 109 | 517304221 | Latch Support |
| 112 | 517304883 | RH Center Foam |
| 113 | 517304322 | Black, RH Console |
| 117 | 517304394 | Windsheld Kit 375 |
| 117 | 517304395 | Windsheld 375mm |
| 131 | 517304518 | Console Nut |
| 132 | 517304530 | Deep Black Hood |
| 134 | 517305213 | INDICATOR SUPPORT - Call your local BRP dealership |
| 144 | 517304913 | Hood Foam |
| 146 | 517305451 | Heat Shield |
