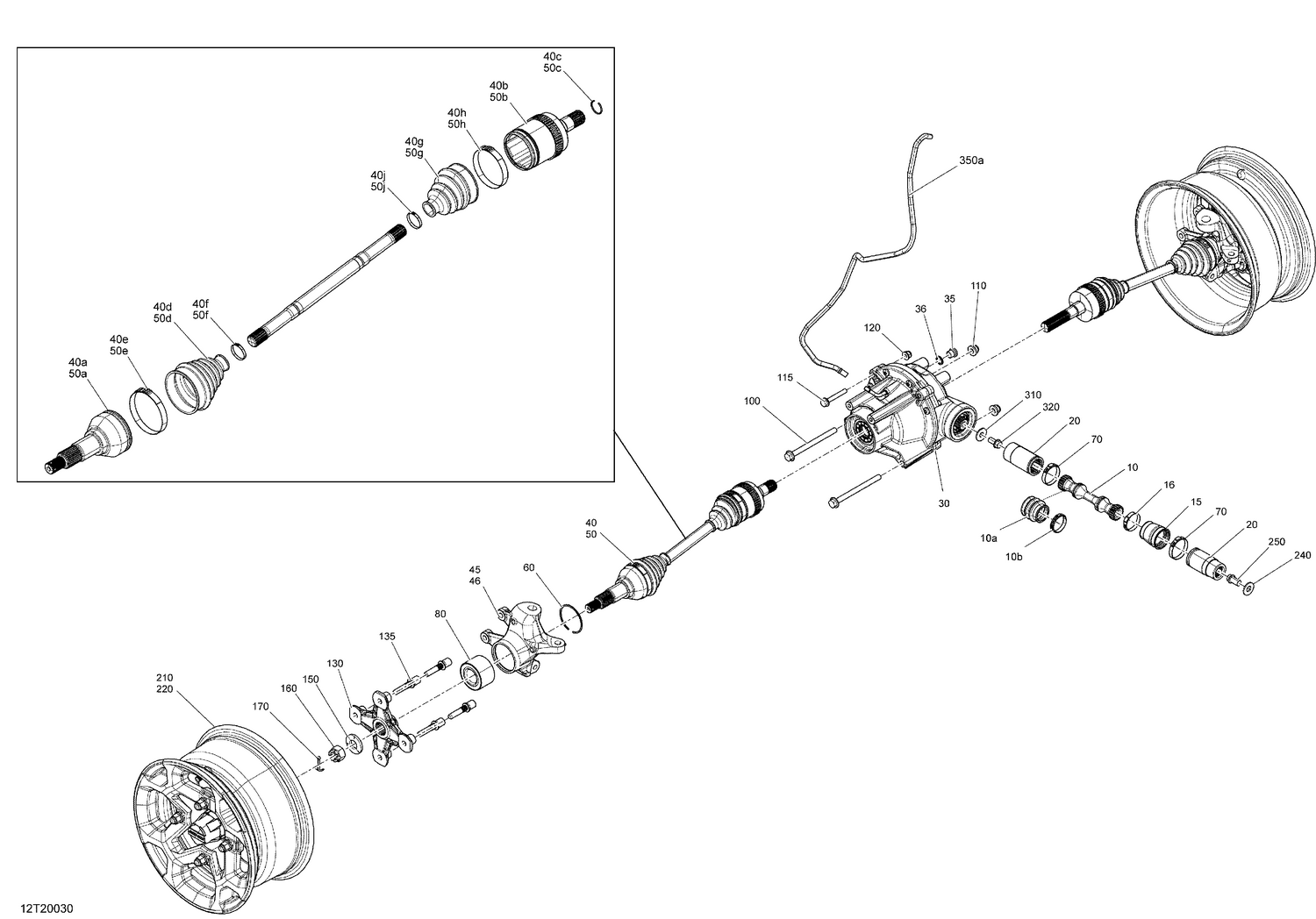

07- Front Drive - Common Parts
Parts (41)
| Ref | Part Number | Description |
|---|---|---|
| 10 | 705400913 | Propeller Shaft |
| 10a | 715900118 | Rubber Boot |
| 10b | 509000045 | Oetiker Gear Clamp 36.1MM |
| 15 | 705401093 | Rubber Boot |
| 16 | 293650199 | Oetiker Gear Clamp |
| 20 | 705401969 | Coupling Sleeve |
| 35 | 705500504 | Fill Level Plug |
| 36 | 705500506 | Copper Washer |
| 40 | 705401116 | RH Front - Premium CV Axle |
| 40a | 705401344 | CV Joint |
| 40c | 715900282 | Oetiker Clamp |
| 40d | 715900283 | Oetiker Clamp, Small |
| 40f | 715900284 | Oetiker Clamp, Large |
| 40g | 715900261 | Oetiker Clamp, Small |
| 40h | 705401348 | RH Plunging Joint |
| 40j | 705401349 | Circlip Joint |
| 45 | 705403307 | LH Knuckle This part replaces 705401290. |
| 46 | 705403308 | RH Knuckle This part replaces 705401291. |
| 50 | 705401115 | LH Front - Premium CV Axle |
| 50a | 705401344 | CV Joint |
| 50c | 715900282 | Oetiker Clamp |
| 50d | 715900283 | Oetiker Clamp, Small |
| 50f | 715900284 | Oetiker Clamp, Large |
| 50g | 715900261 | Oetiker Clamp, Small |
| 50h | 705401350 | LH Plunging Joint |
| 50j | 705401349 | Circlip Joint |
| 60 | 293350150 | Ball Bearing This part replaces 293350118. |
| 70 | 293650138 | Oetiker Gear Clamp 44.0MM |
| 80 | 293370019 | Circlip |
| 100 | 230602546 | Hex. Flange Screw M10 X 125 |
| 110 | 233201436 | Hex. Flange Elastic Nut M10 This part replaces 233201416. |
| 115 | 207685544 | Hex. Flange Screw M8 X 55 |
| 120 | 233281414 | Hex. Flange Elastic Nut M8 |
| 130 | 705501716 | Wheel Hub Ass'y |
| 150 | 250200171 | Conical Spring Washer M18 |
| 160 | 232291413 | Hex. Flange Castellated Nut M18 |
| 170 | 250400071 | Cotter Pin |
| 240 | 250200102 | Flat Washer M12 |
| 250 | 250001042 | Hex Flange Screw M12 X 20 |
| 310 | 250200014 | Flat Washer M10 |
| 320 | 250001046 | Hex Flange Screw M10 X 20 S.Grip |
