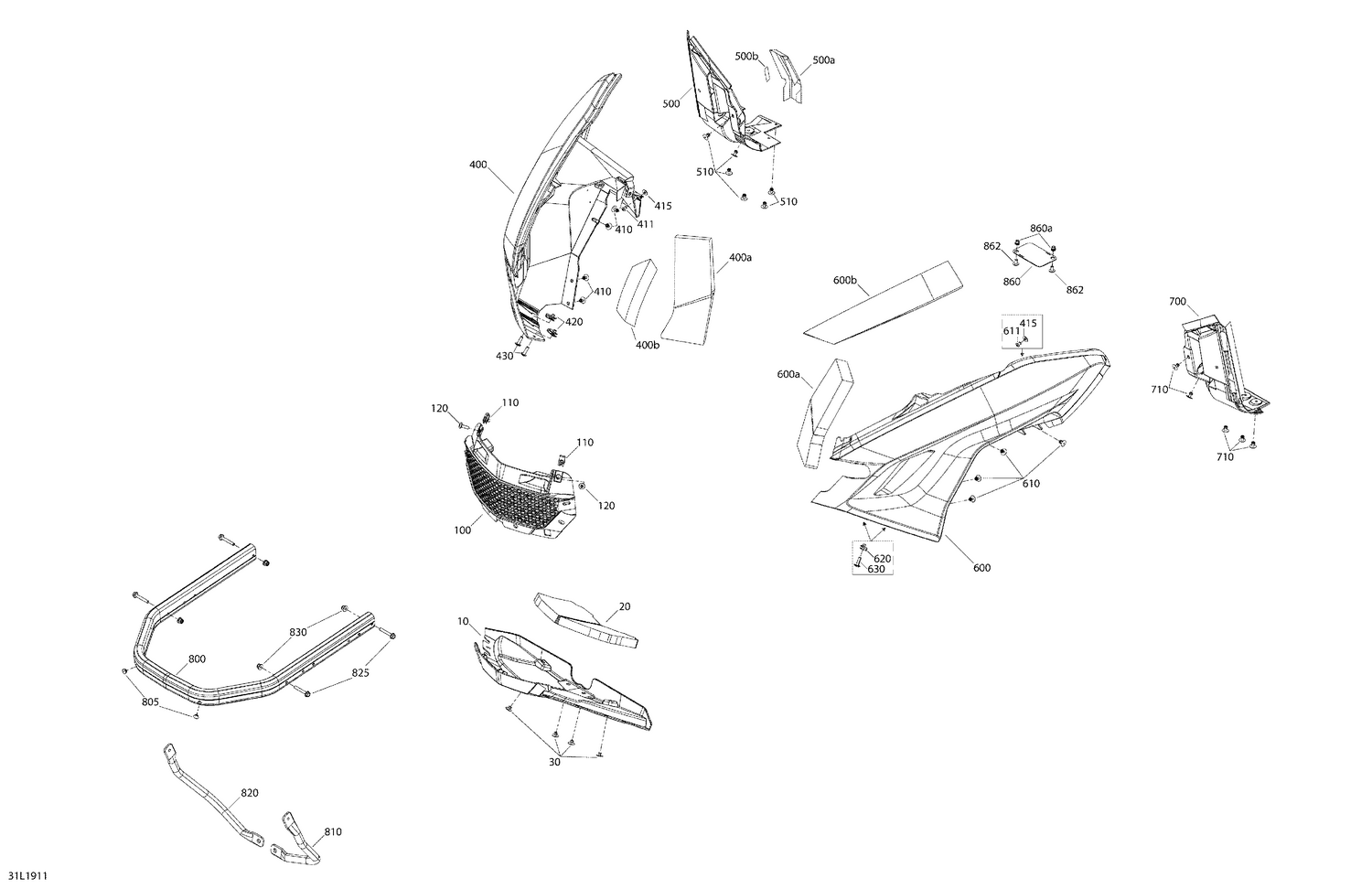

09- Bottom Pan Commander - 1200 4-TEC
Parts (31)
| Ref | Part Number | Description |
|---|---|---|
| 10 | 502008007 | Orange, Front Bottom Pan |
| 20 | 502007002 | Isolation |
| 30 | 293150103 | Pop Rivet 3/16 |
| 100 | 502007731 | Grill, Orange |
| 110 | 250100198 | Panel Nut , M6 X 1.0 This part replaces 250000957. |
| 120 | 250000722 | Torx Truss Screw M6 x 20 |
| 400a | 502007526 | Isolation |
| 400b | 502007009 | Isolation |
| 410 | 293150104 | Pop Rivet 3/16 |
| 411 | 390402200 | Pop Rivet 3/16 |
| 415 | 234052450 | Flat Washer M5 |
| 420 | 250100198 | Panel Nut , M6 X 1.0 This part replaces 250000957. |
| 430 | 250000722 | Torx Truss Screw M6 x 20 |
| 500a | 502007038 | Reflective sheet |
| 500b | 44110 | Aluminum Foil |
| 510 | 293150104 | Pop Rivet 3/16 |
| 600 | 502008000 | Black, LH Bottom Pan Ass'y |
| 600a | 502007003 | Isolation |
| 600b | 502007185 | Insulator |
| 610 | 293150104 | Pop Rivet 3/16 |
| 611 | 390402200 | Pop Rivet 3/16 |
| 620 | 250100198 | Panel Nut , M6 X 1.0 This part replaces 250000957. |
| 630 | 250000722 | Torx Truss Screw M6 x 20 |
| 700 | 502008012 | LH Rear Bottom Pan |
| 710 | 293150104 | Pop Rivet 3/16 |
| 800 | 502007685 | Black Anod. Bumper |
| 805 | 293730047 | Black, Dart 8 mm |
| 810 | 502007014 | LH Bumper Support Tube |
| 820 | 502007015 | RH Bumper Support Tube |
| 825 | 207664044 | Hex. Flange Screw M6 X 40 |
| 830 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
