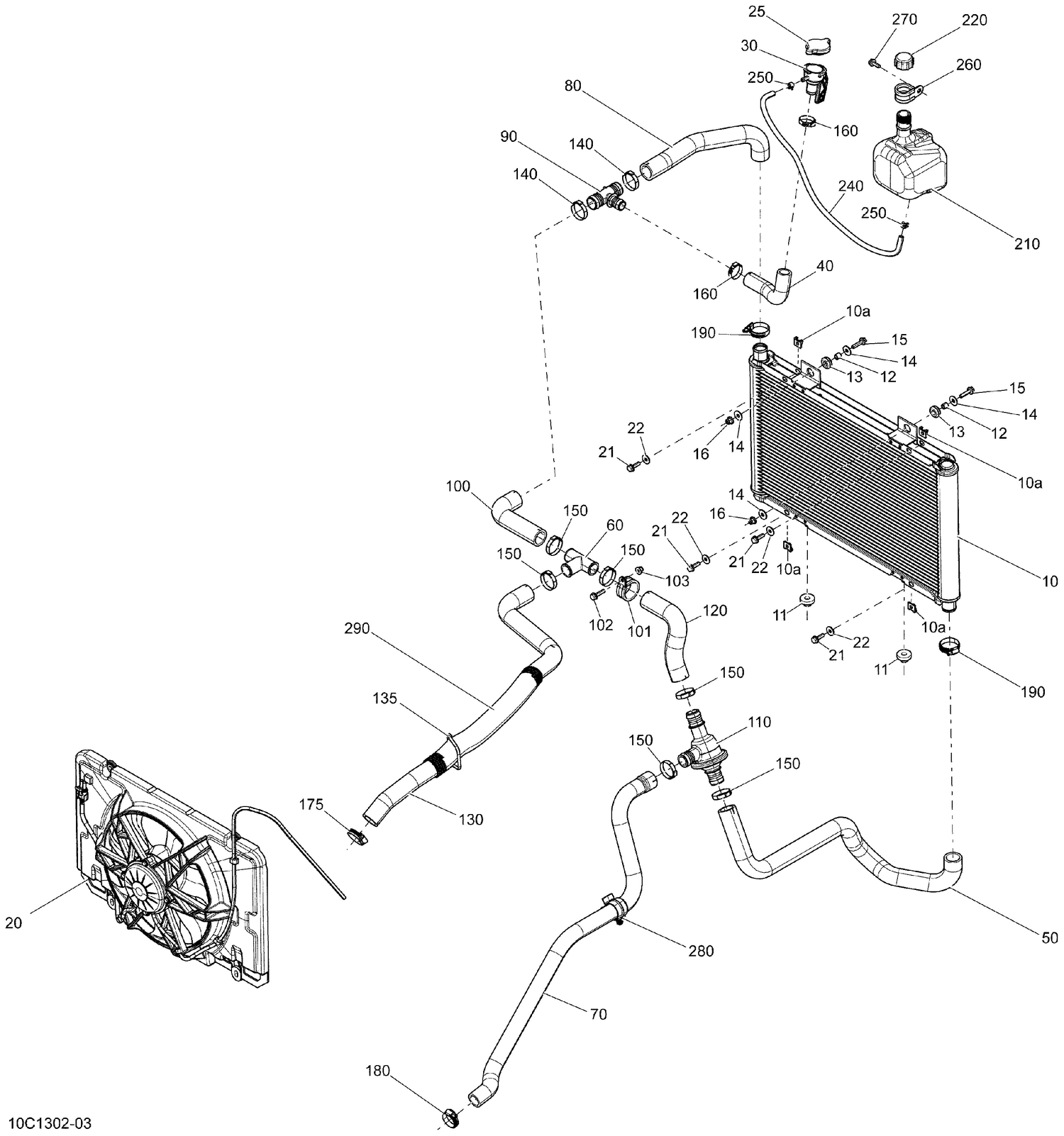

01- Cooling System
Parts (39)
| Ref | Part Number | Description |
|---|---|---|
| 10a | 715900148 | CLIP NUT M6 X 1 - Call your local BRP dealership |
| 11 | 709200285 | Grommet |
| 12 | 293900105 | Bushing |
| 13 | 709000582 | Grommet This part replaces 293720053. |
| 14 | 250200082 | Flat Washer |
| 15 | 207662534 | Hex. Flange Screw M6 X 25 |
| 16 | 233261434 | Flange Elastic Nut M6 |
| 20 | 709200566 | Fan Ass'y This part replaces 709200375. |
| 21 | 207662044 | Hex. Flange Screw M6 X 20 |
| 22 | 234062410 | Flat Washer 6 mm |
| 25 | 709200207 | Radiator Pressure Cap |
| 30 | 709200179 | Filler Neck |
| 40 | 709200264 | Filler Neck Hose |
| 50 | 709200378 | RADIATOR INLET HOSE - Call your local BRP dealership |
| 60 | 509000219 | T-Fitting |
| 70 | 709200379 | PUMP HOSE - Call your local BRP dealership |
| 80 | 709200265 | Radiator Outlet Hose |
| 90 | 509000372 | T-Fitting |
| 100 | 709200904 | Intermediate Hose This part replaces 709200380. |
| 101 | 293650218 | Hose Retainer |
| 102 | 207662534 | Hex. Flange Screw M6 X 25 |
| 103 | 233261434 | Flange Elastic Nut M6 |
| 110 | 709200406 | Thermostat |
| 120 | 709200381 | RECIRCULATION HOSE - Call your local BRP dealership |
| 130 | 709200382 | Intermediate Hose |
| 135 | 293750008 | Tie Wrap 368 mm |
| 140 | 509000162 | Gear Clamp |
| 150 | 509000162 | Gear Clamp |
| 160 | 293650099 | Crimp Clamp |
| 175 | 293650098 | Norma Gear Clamp |
| 180 | 293650098 | Norma Gear Clamp |
| 190 | 293650098 | Norma Gear Clamp |
| 210 | 709200624 | Coolant Tank Ass'y This part replaces 709200312. |
| 220 | 709200587 | Tank Cap This part replaces 709200328. |
| 240 | 219704414 | Was 415110000 Polyurethane Hose 5.2 mm |
| 250 | 414554800 | Spring Clamp |
| 260 | 709200036 | Hose Anchor |
| 270 | 207661644 | Hex. Flange Screw M6 X 16 |
| 280 | 275500590 | Retainer |
